• 7" Outdoor Antenna, 915MHz, 2.5dBi
  • 7" Outdoor Antenna, 915MHz, SMA, 2.5dBi
  • 7" Outdoor Antenna, 915MHz, SMA, 2.5dBi
1 3

Signal Plus

7" Outdoor Antenna, 915MHz, SMA, 2.5dBi

7" Outdoor Antenna, 915MHz, SMA, 2.5dBi

AVX-AN-SMA2

$7.99
$7.99
Sale Sold out
Shipping calculated at checkout.
View full details

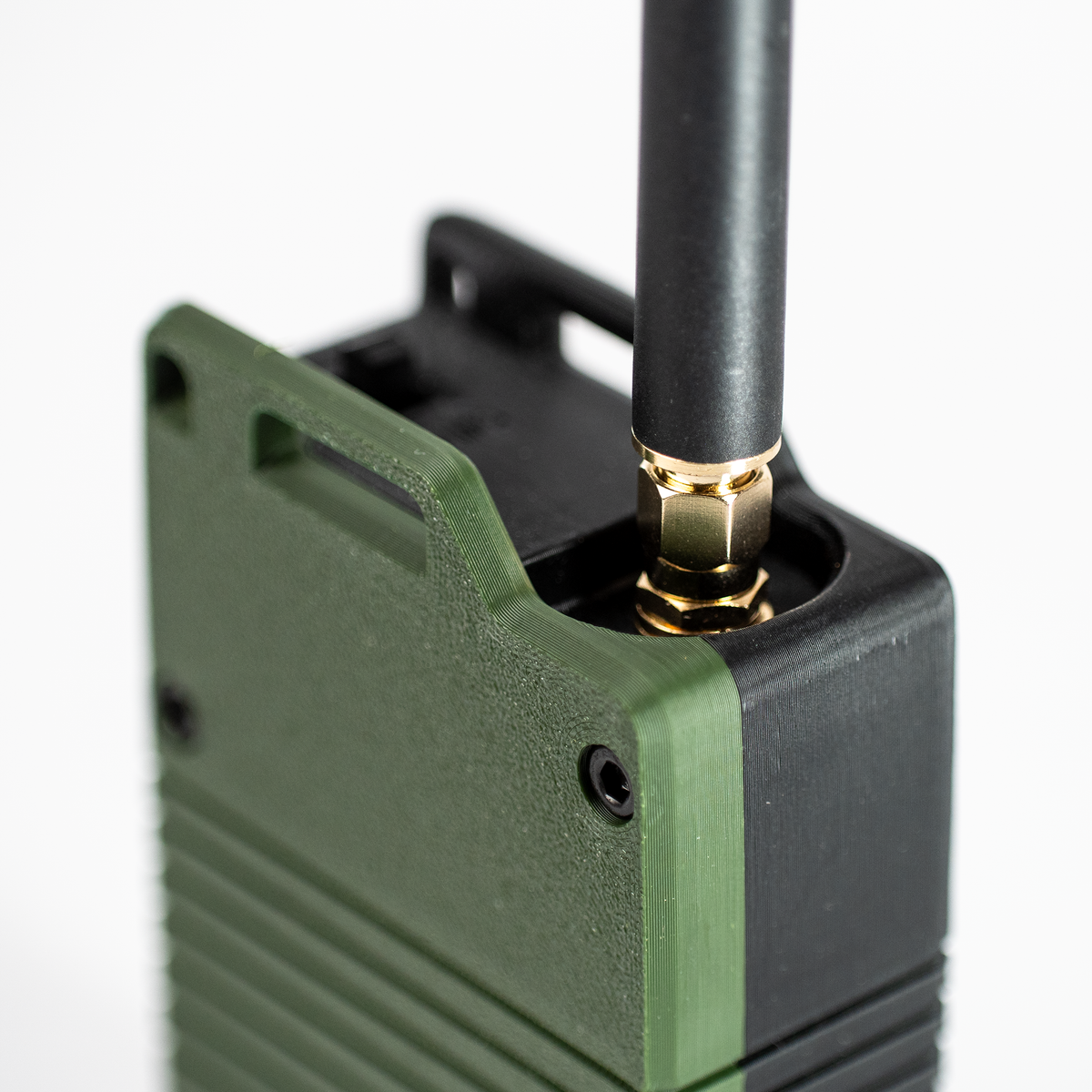

A rigid, straight 7" outdoor antenna with an IP65 rating, tuned for 915MHz (US and Canada) with 2.5dBi gain and an SMA Male connector. A simple, weatherproof upgrade for Meshtastic™ and MeshCore™ radios with an SMA Female antenna port, including solar nodes and outdoor enclosures.

The SMA Male connector has a center pin and inner threads. It screws onto any SMA Female port (center socket, outer threads). For RP-SMA radios, choose the RP-SMA version of this antenna.

Specifications

RF Standard LoRa (Meshtastic™/MeshCore™)
Frequency 915MHz
Gain
2.5 dBi
LOW HIGH
Radiator Type Dipole
Antenna Style Straight
Radiation Pattern Omnidirectional
VSWR (≤x:1)
2.0
EXCELLENT GOOD POOR
Impedance 50 Ohm
RF Connector SMA Male
Length 179 mm
Weight 28 g
Manufacturer Signal Plus
7" Outdoor Antenna, 915MHz, SMA, 2.5dBi SWR Average Report 🔗
DATE: 9/9/2025 | SKU: AVX-AN-SMA2 | SAMPLE QTY: 5
