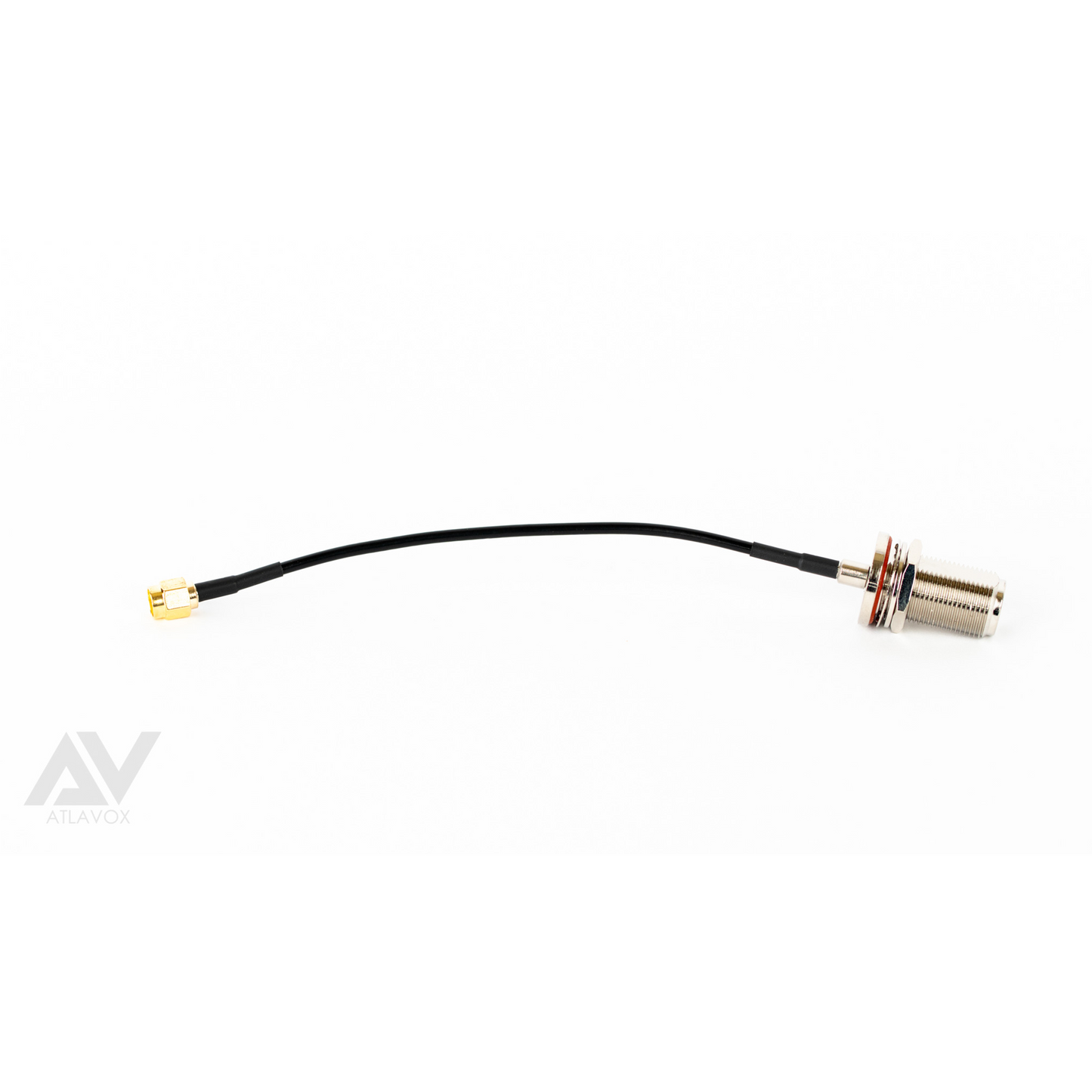

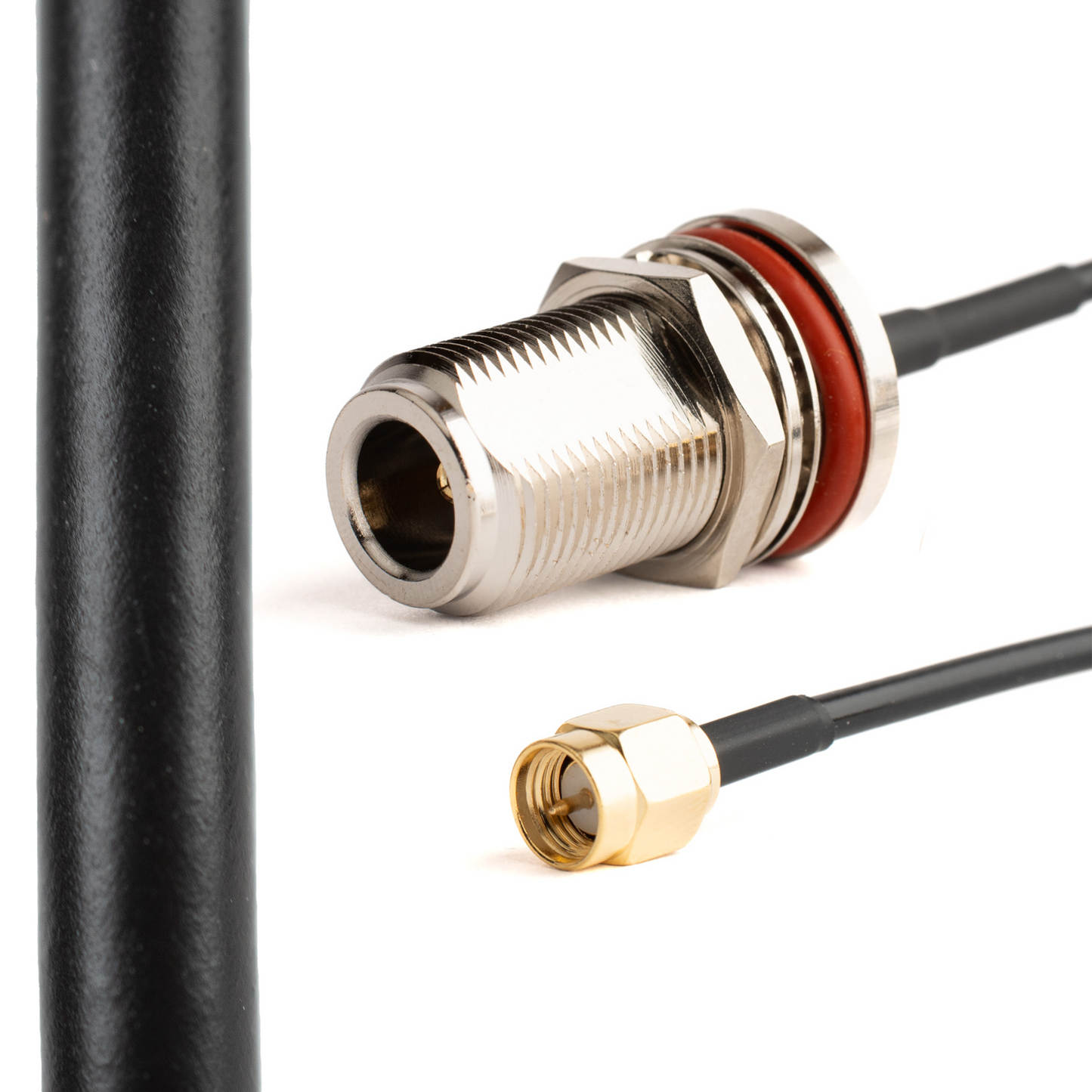

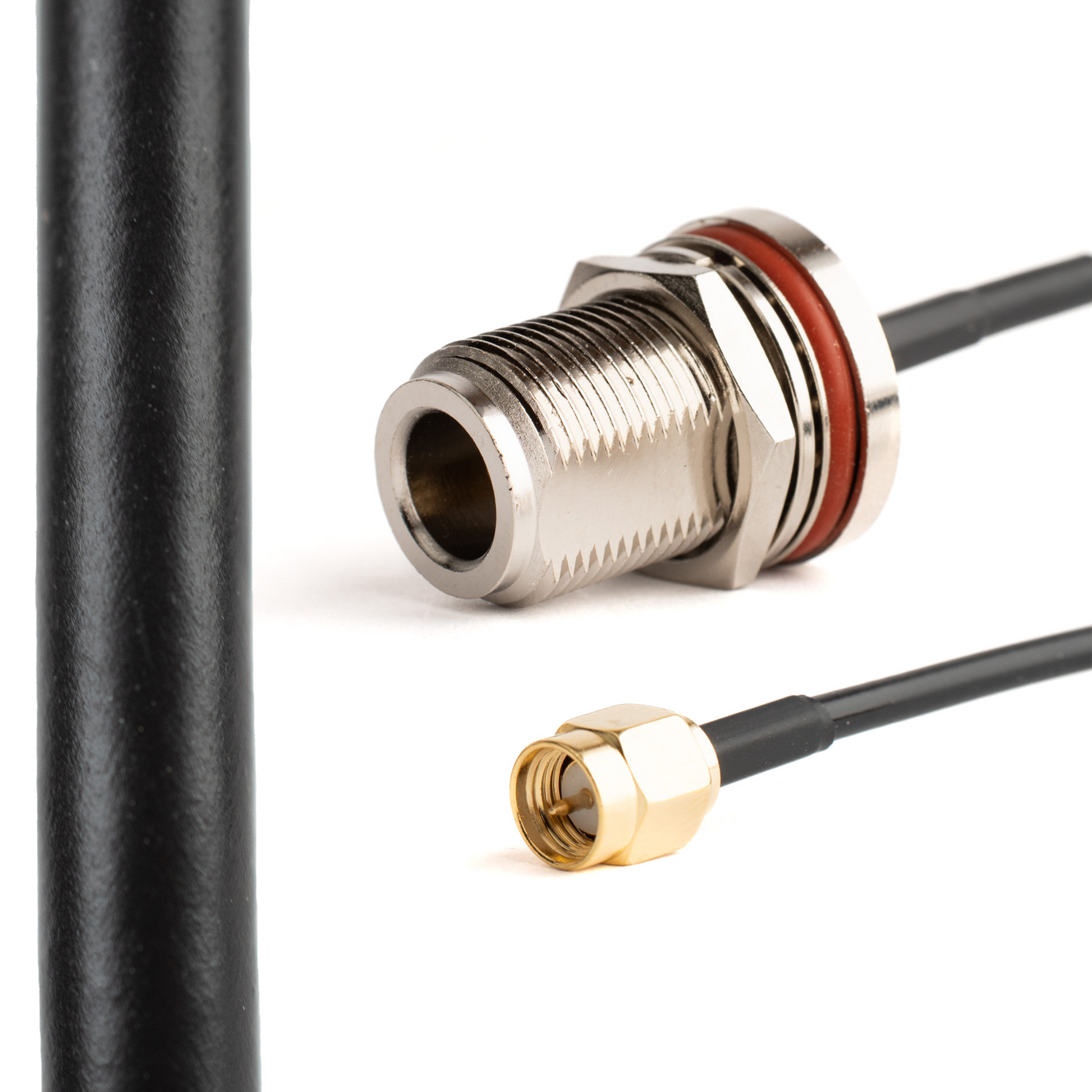

Antenna Cable - Flex100 - SMA M TO N WF 15CM

Outdoor antenna cable for connecting your N-Type antenna to a Meshtastic® radio enclosure. Compatible with the Atlavox 5.8dBi and 3dBi antennas.

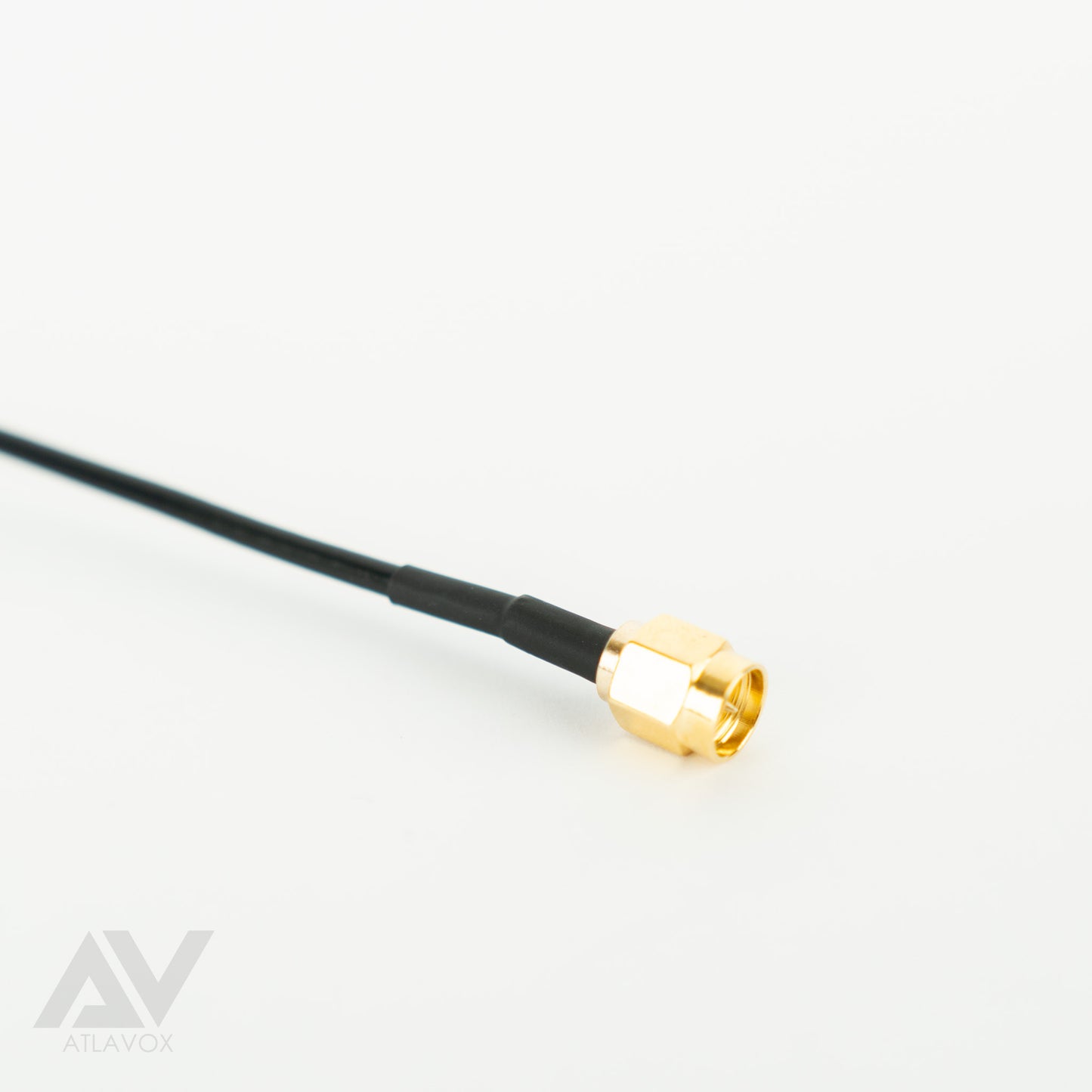

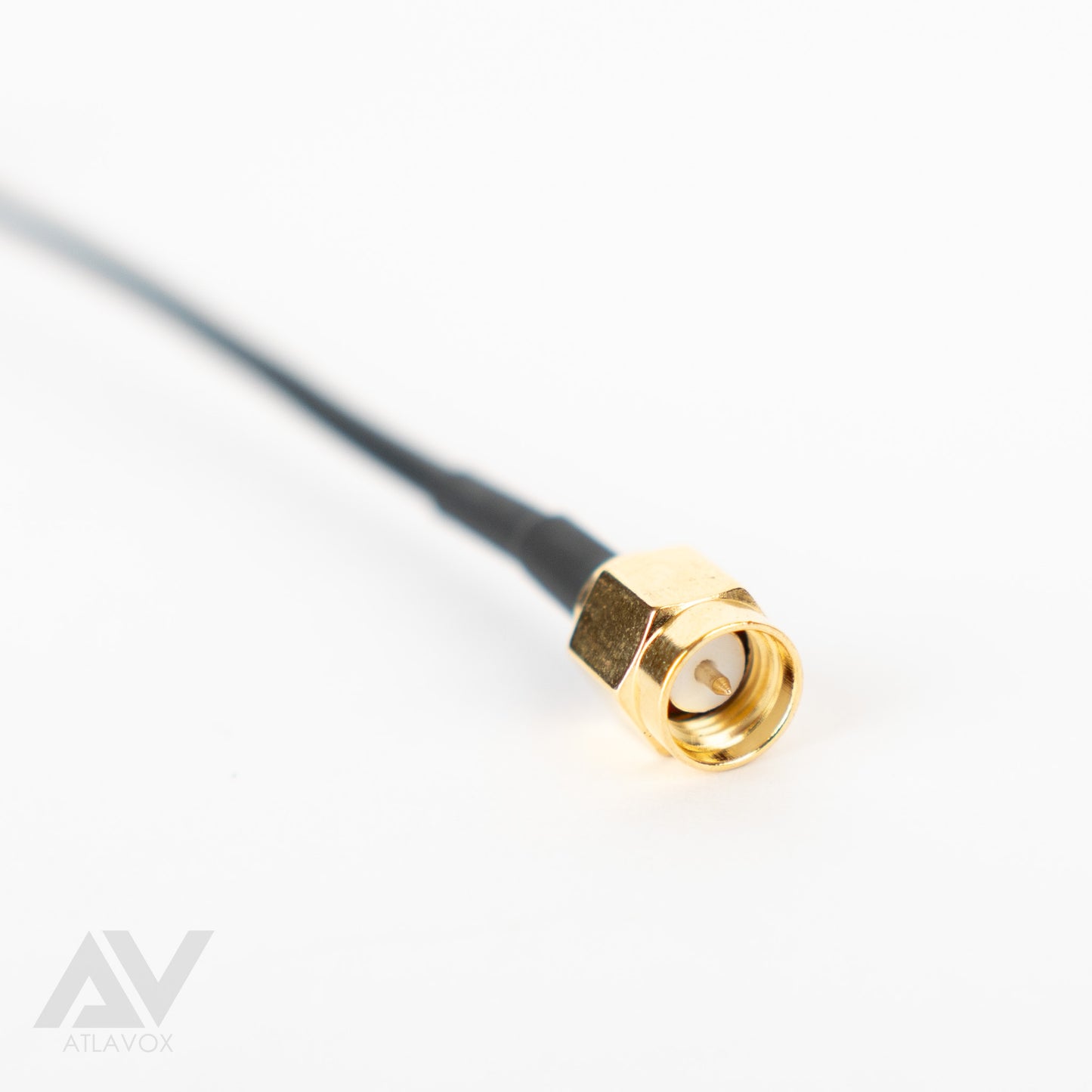

SMA MALE (Includes male pin) and a threaded nut with internal threads that spins freely on connector body, for securing.

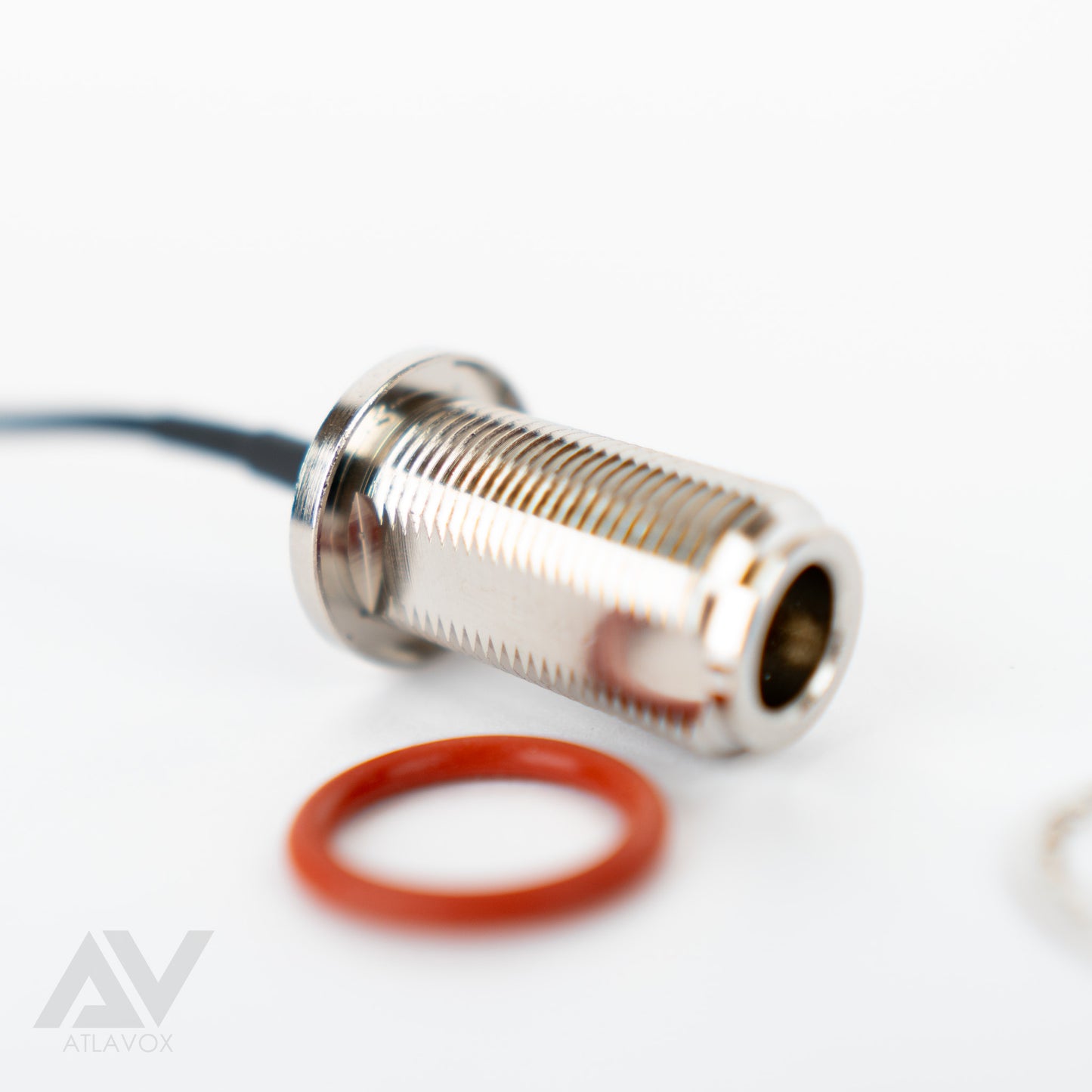

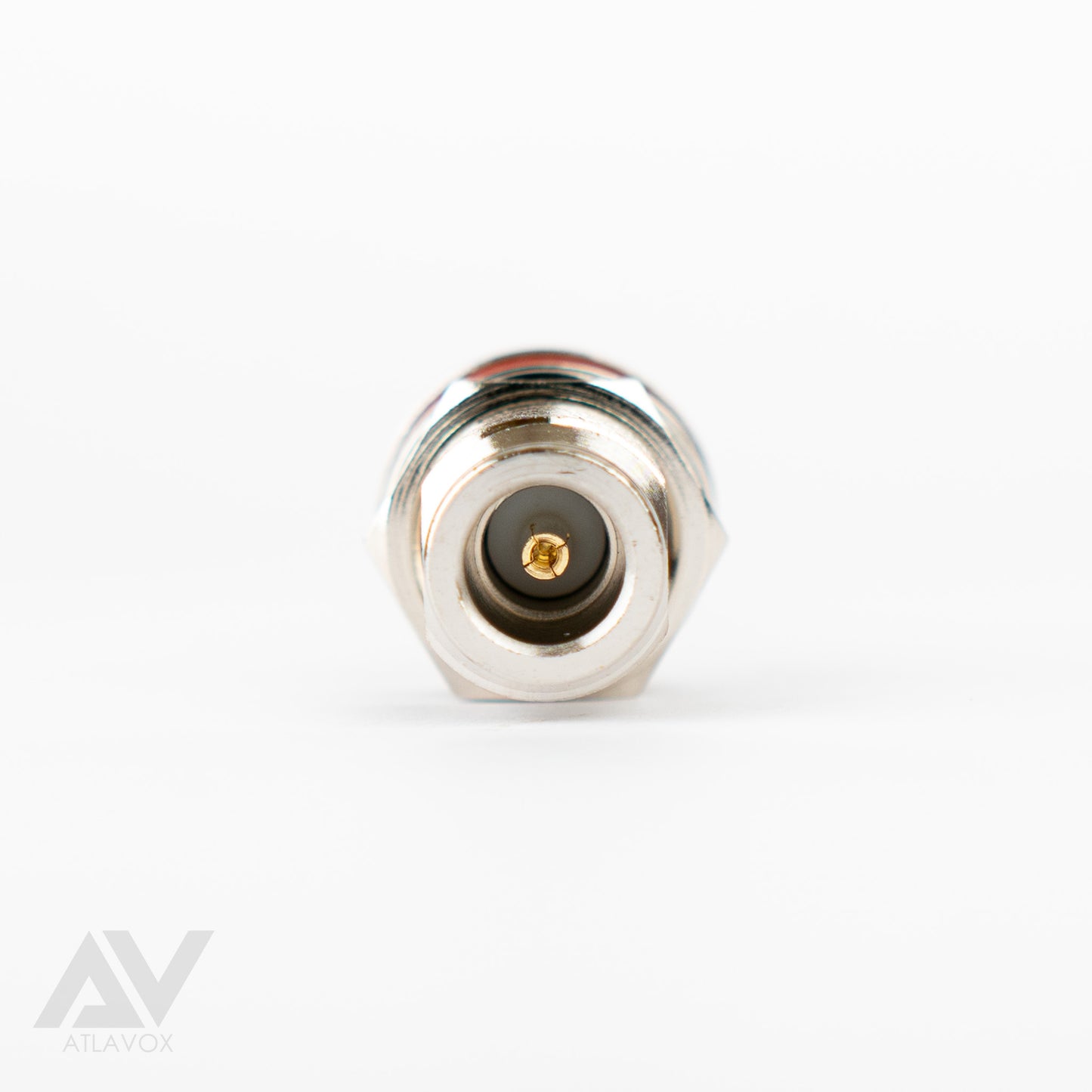

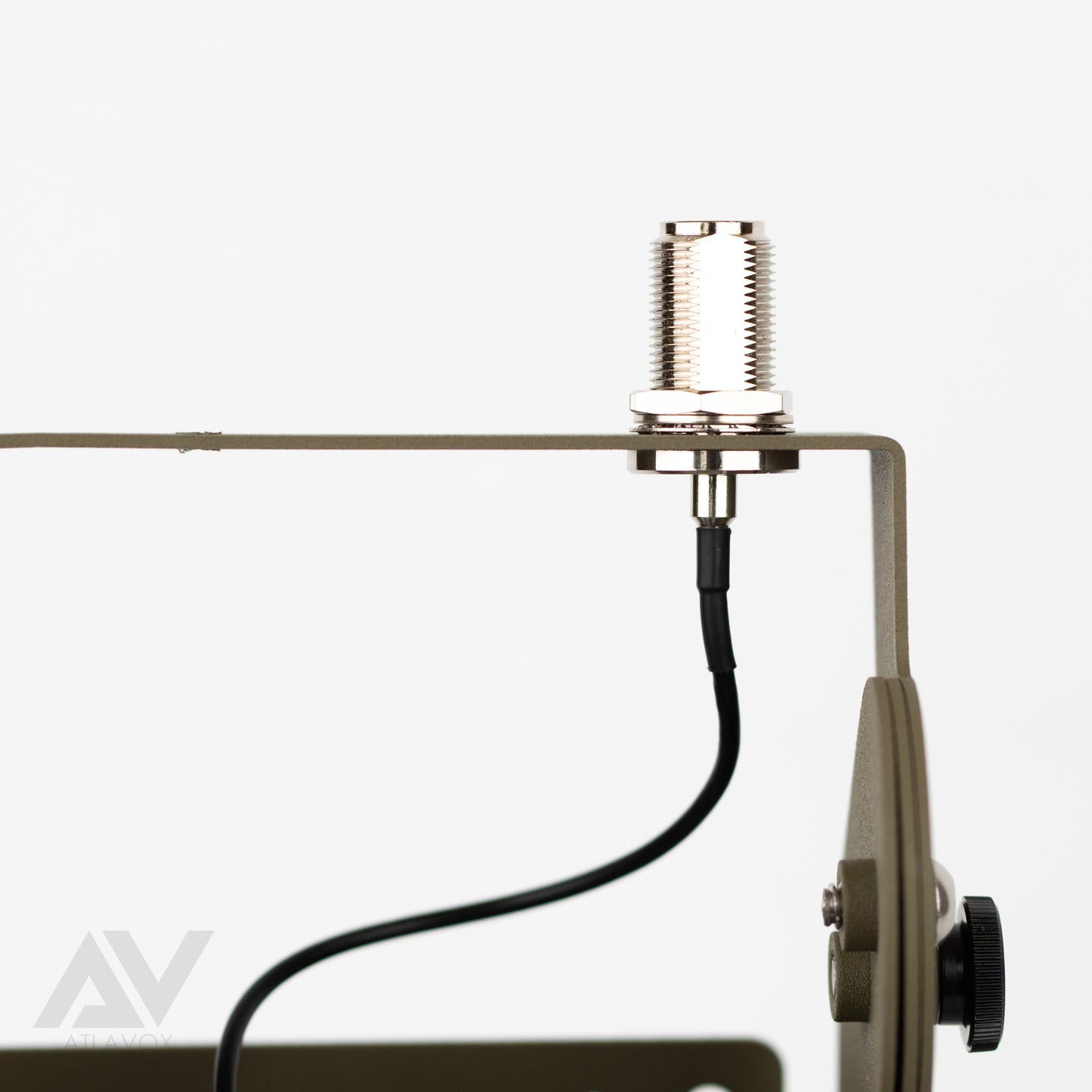

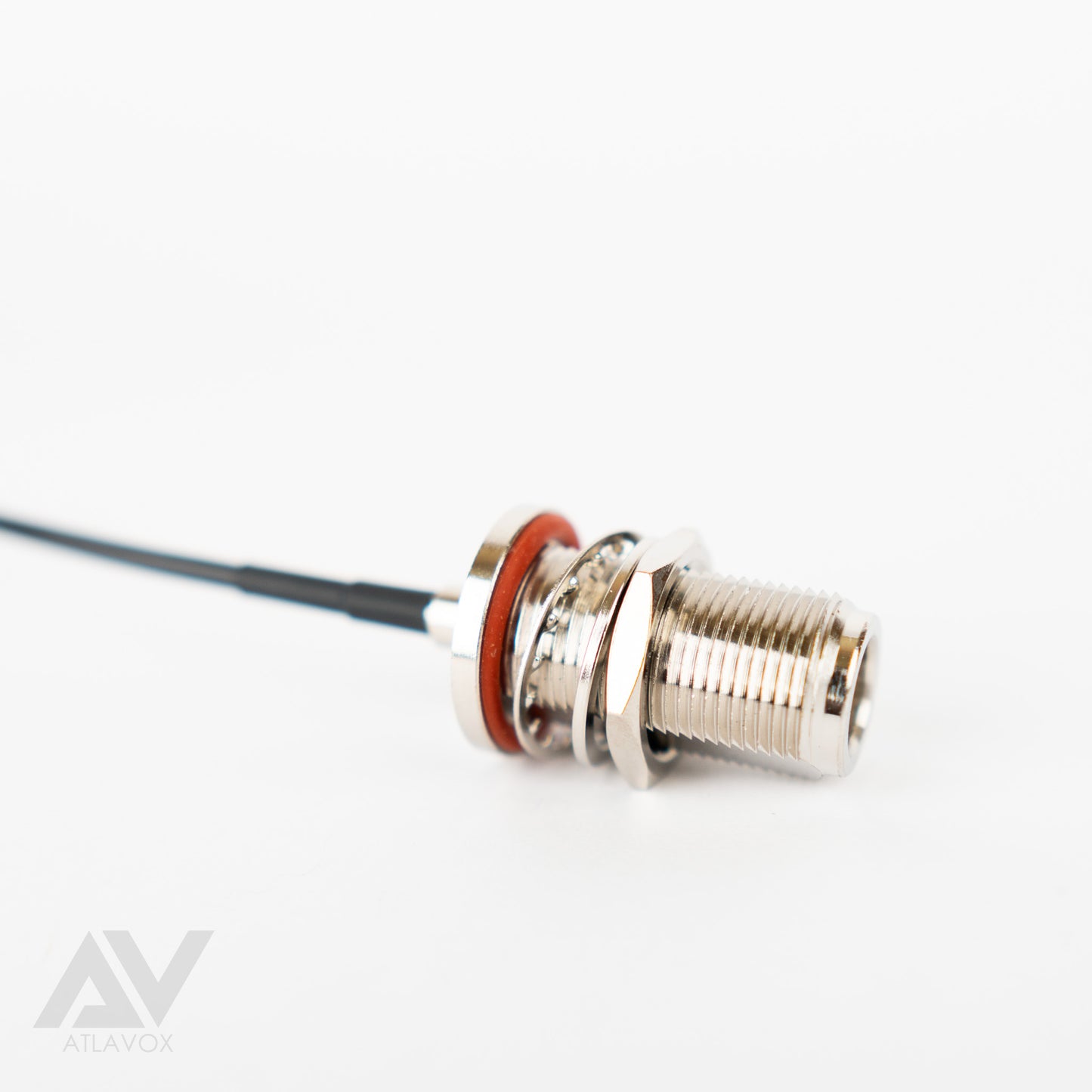

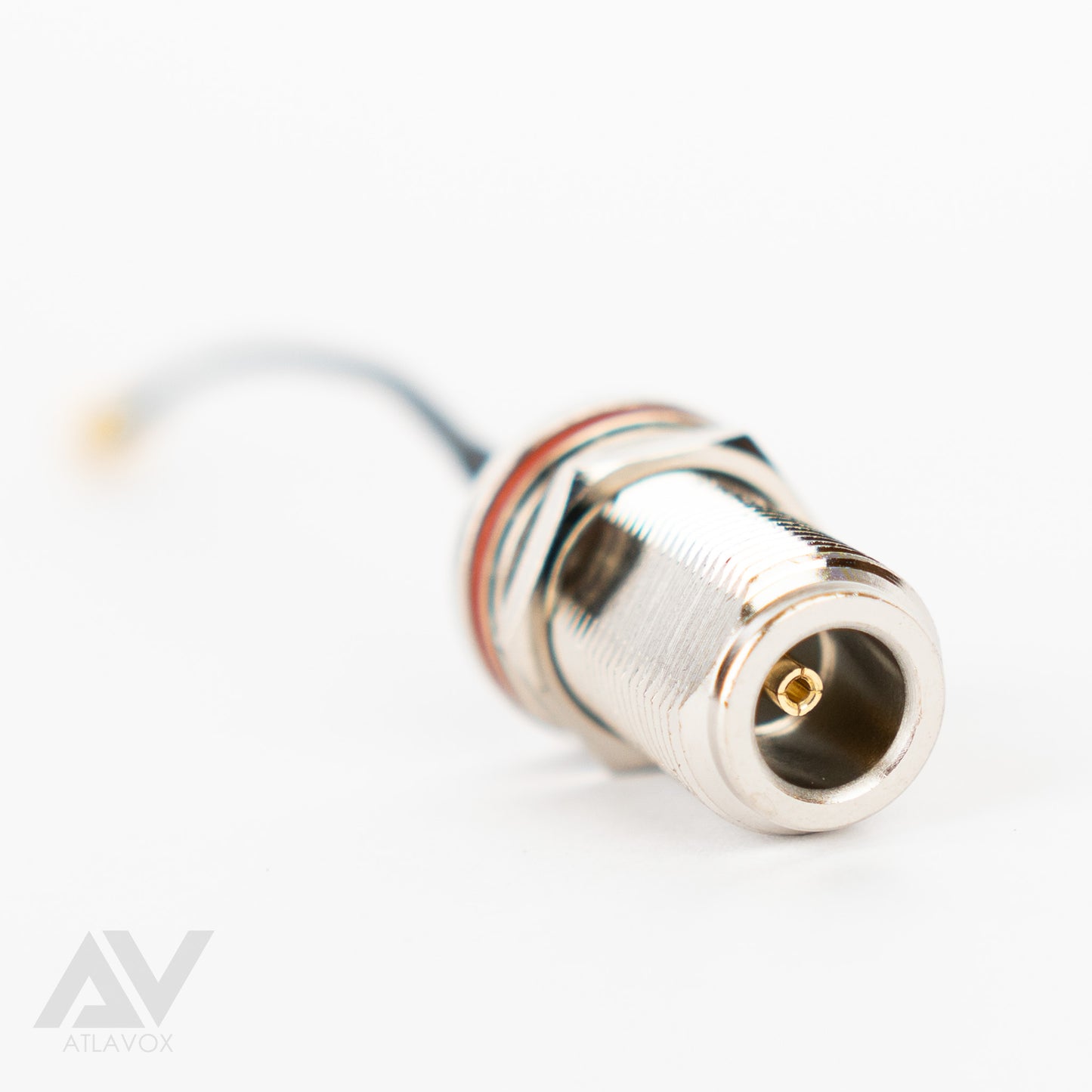

N-TYPE FEMALE WATERPROOF BULKHEAD (The female connector has a hollow central contact (socket) to receive the solid pin of the male connector (not included).)  There's an external thread on the barrel for securing the connection. This connector can be attached directly to antennas with Male N-Type connectors and hang freely as long as the antenna is secured with its own mount. Alternatively, the connector can be panel-mounted to provide a secure connection point for an antenna. The optional O-ring can be used if mounting in an enclosure to prevent water infiltration into the enclosure.

Length: 15cm

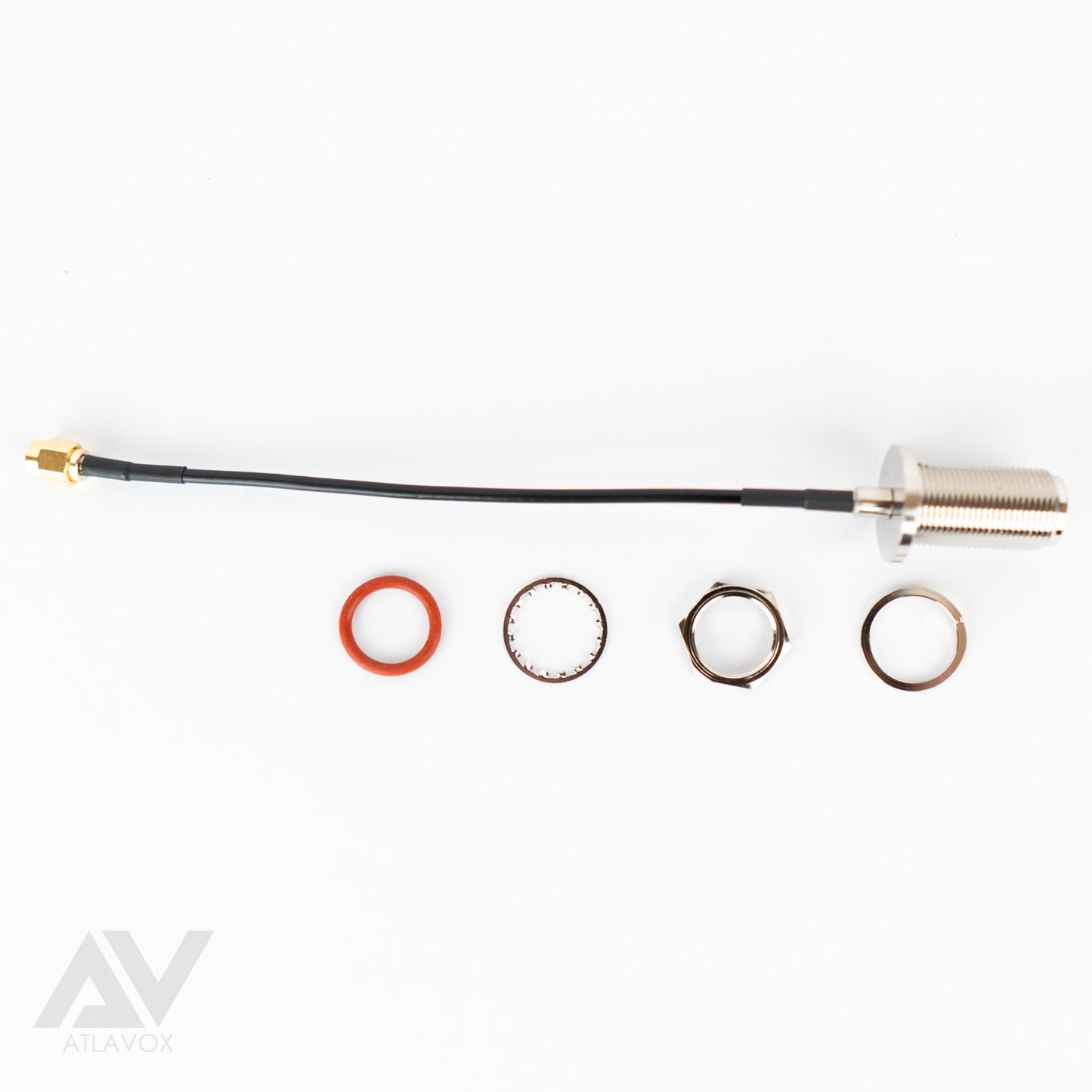

Includes:

• (1) Antenna Cable w/(1) SMA M and (1) N Type WF connector, 15cm
• (1) O-ring
• (1) Toothed Washer
• (1) Split-ring lock washer
• (1) Nut

Flex100 Specifications

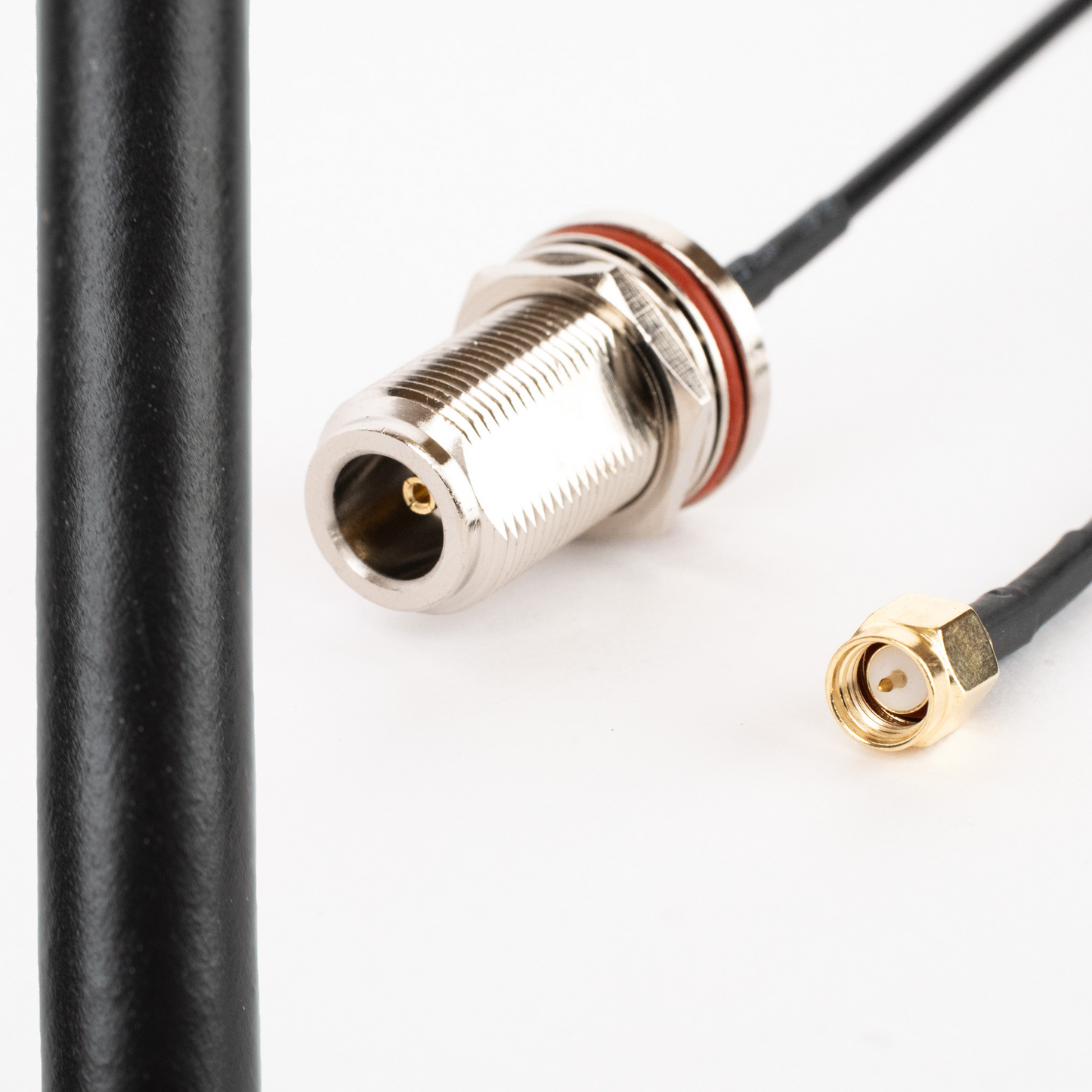

AVX-CA-FLX1 Drawing

MADE IN CHINA
