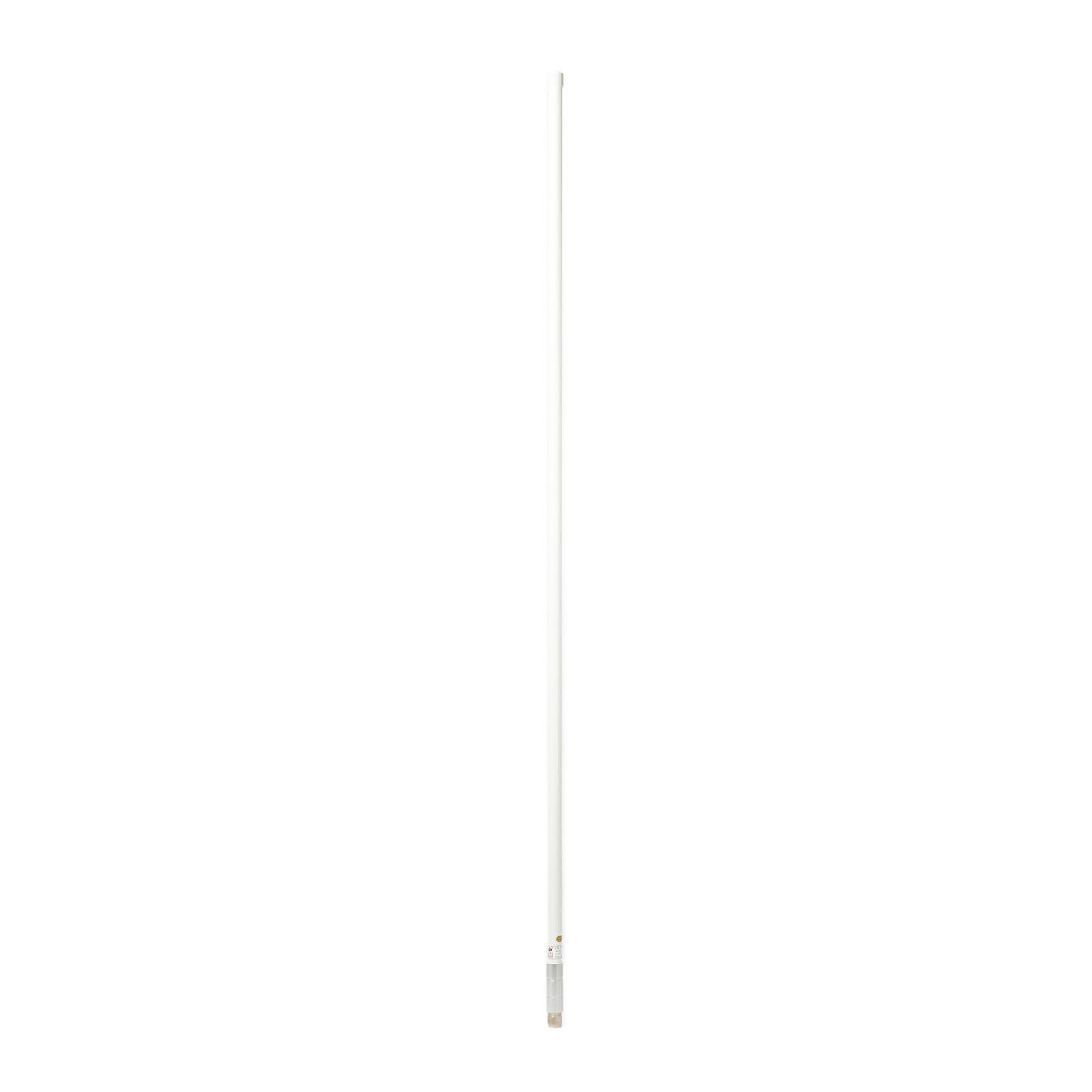

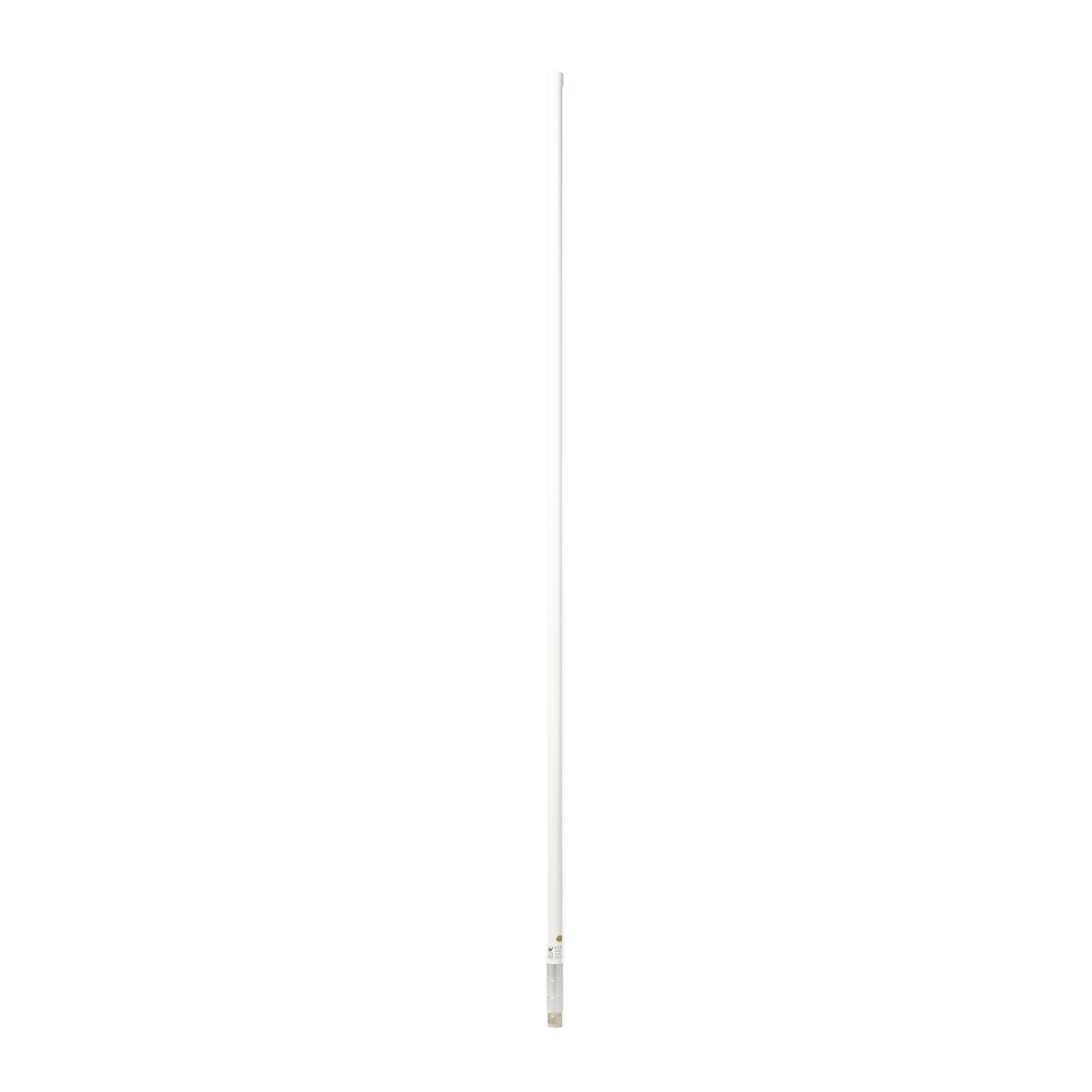

A 51" fiberglass 868-915 MHz omnidirectional antenna with a rugged N-Type connector, built to give an elevated, line-of-sight mesh node the longest possible reach across open terrain. This is a 10 dBi high-gain antenna intended for flat terrain.
When your mesh depends on one well-placed node carrying traffic across miles of open ground, the stock whip won't cut it. This antenna concentrates your radio's energy out toward the horizon, squeezing distance out of backbone and repeater links where every dB of reach matters. Due to oversized item, this antenna must be shipped separately from most other products, so your order may arrive separately.
Who it's for
-
Mesh backbone & repeater builders — running an elevated node on a tower, rooftop, or hilltop that needs to reach distant peers at similar elevations across the network.
-
Rural and flat-terrain deployers — linking nodes spread across open land, fields, or water where the path is long and unobstructed.
-
Off-grid property owners — bridging a remote node back to the main mesh across open ground at a similar elevation.
Key Benefits
- 📡 Maximum reach on the horizon — 10 dBi of gain focuses RF energy outward in a flat, far-reaching pattern for the longest line-of-sight links.
- 🗼 Built for elevated backbone roles — the high-gain pattern rewards height, making it ideal for the one node that ties your mesh together.
- 🛡️ Rugged outdoor fiberglass — a sealed fiberglass radome stands up to rain, sun, and wind for permanent mast-mounted deployment.
- 🔩 Solid N-Type connection — the N-Type connector is the outdoor standard: secure, weather-resistant, and low-loss compared to SMA.
How it Works (and When to Use High Gain)
Antenna gain doesn't create power out of nothing. A 10 dBi omni takes the energy your radio already produces and reshapes its radiation pattern, flattening the donut so that energy radiates outward toward the horizon instead of up into the sky or down toward the ground. The result is much greater reach along a flat, horizontal path, at the cost of a narrow vertical beamwidth.
That tradeoff is the whole story with high-gain antennas. They perform best on long, flat, line-of-sight paths between nodes at similar elevation like tower-to-tower backbone links, open rural terrain, across water. They are not an upgrade everywhere. Because the vertical beam is so compressed, a 10 dBi omni can actually shoot its signal over the top of a nearby node sitting in a valley or at a much lower elevation. In hilly terrain or dense urban areas with close, low neighbors, a wider-pattern 3–6 dBi antenna often performs better. Placement and terrain matter more than the gain number on the box.
Key Features
-
10 dBi High-Gain Omnidirectional Pattern — radiates 360° horizontally with a compressed vertical beam that pushes range out to the horizon.
-
Sealed Fiberglass Radome — UV-resistant and weatherproof for permanent outdoor, mast-mounted installation.
-
51" Full-Length Element — the physical size is what makes real 10 dBi gain possible
-

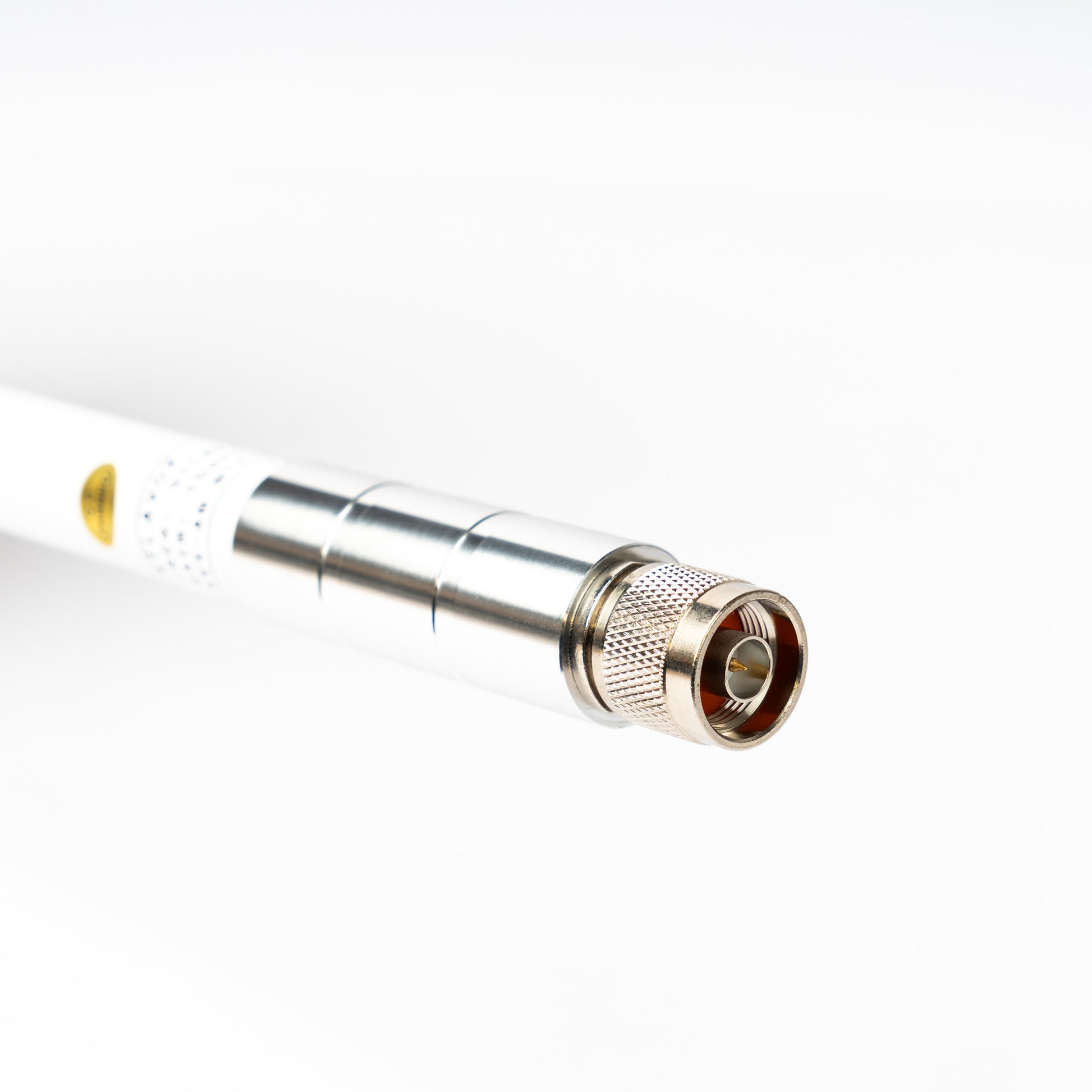

N-Type Male Connector — the rugged outdoor connector standard, with lower loss and better weather sealing than SMA on long cable runs.
-
50 Ohm Impedance — matches standard Meshtastic and LoRa hardware.
-

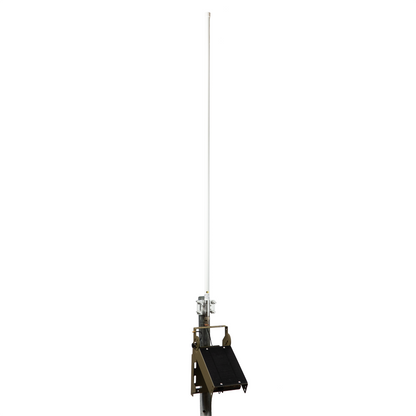

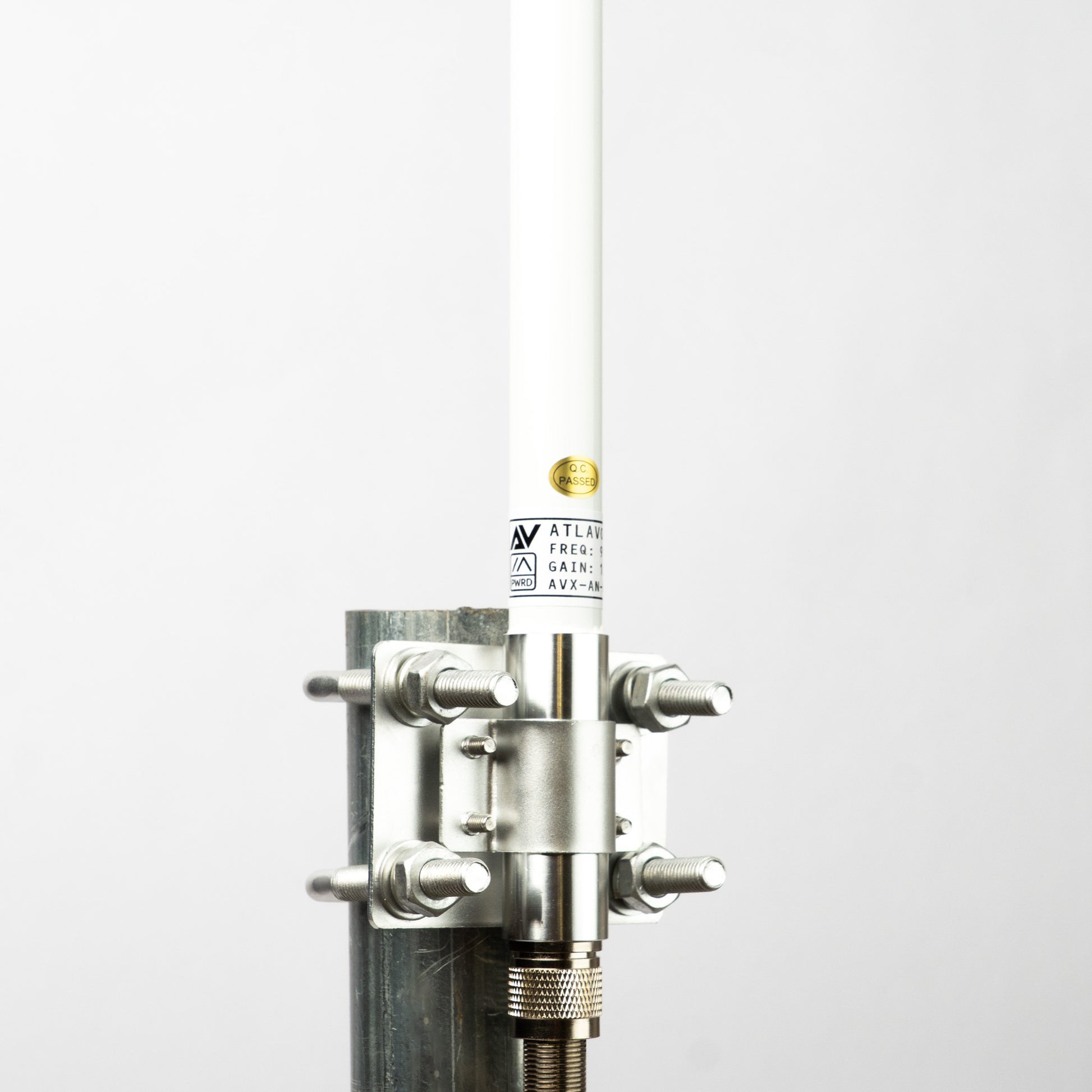

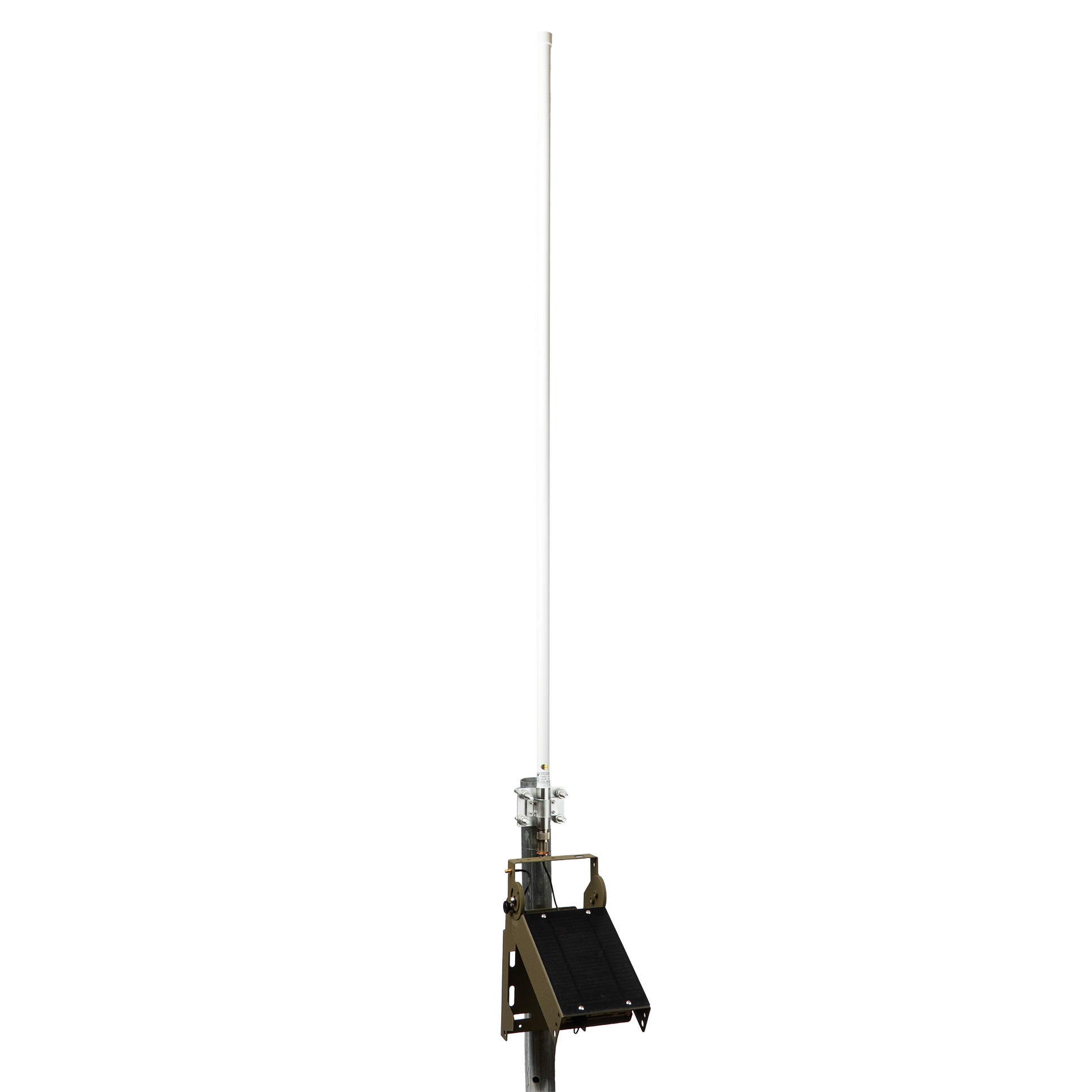

Mast Mounting — designed to mount to a pole or mast for elevated placement.
Compatibility
- Works with any 868-915 MHz Meshtastic™ or MeshCore™ node — the antenna is firmware-agnostic.
- Pair with a low-loss N-Type cable for the run from your antenna to your radio:
- Connecting an SMA radio? You'll need an N-Type to SMA adapter or pigtail:
- A great match for an elevated Beacon with line-of-sight to distant peers.
FAQ
Is a 10 dBi antenna always better than a lower-gain one?
No — and this is the most common mistake. Higher gain doesn't mean "more signal everywhere." It reshapes your signal into a flatter pattern aimed at the horizon. That's excellent for long, flat, line-of-sight paths, but it can underperform in hilly terrain or for nearby, lower-elevation nodes that fall outside the narrow vertical beam. Match the antenna to your node's role and terrain.
Will this reach a node sitting down in a valley below me?
Probably not as well as you'd hope. A high-gain omni concentrates energy outward toward the horizon, so a node well below your elevation can sit beneath the main beam — the signal effectively passes over it. For mixed terrain with close, low neighbors, a wider-pattern 3–6 dBi antenna is often the better choice.
What connector and cable do I need?
This antenna uses an N-Type connector, the rugged outdoor standard. Run a low-loss N-Type coax from the antenna down to your radio, and use an N-Type to SMA adapter or pigtail if your node has an SMA connector. Keep the cable run as short as practical — long, thin coax can give back the gain you paid for.
Does more antenna gain count as more transmit power?
Effectively, yes. Antenna gain adds to your effective radiated power (EIRP), so a high-gain antenna raises your output on the air. In the US, 915 MHz operation under FCC Part 15 has EIRP limits, and the operator is responsible for staying within them. Factor your radio's TX power and cable loss into the total when running a high-gain antenna.
