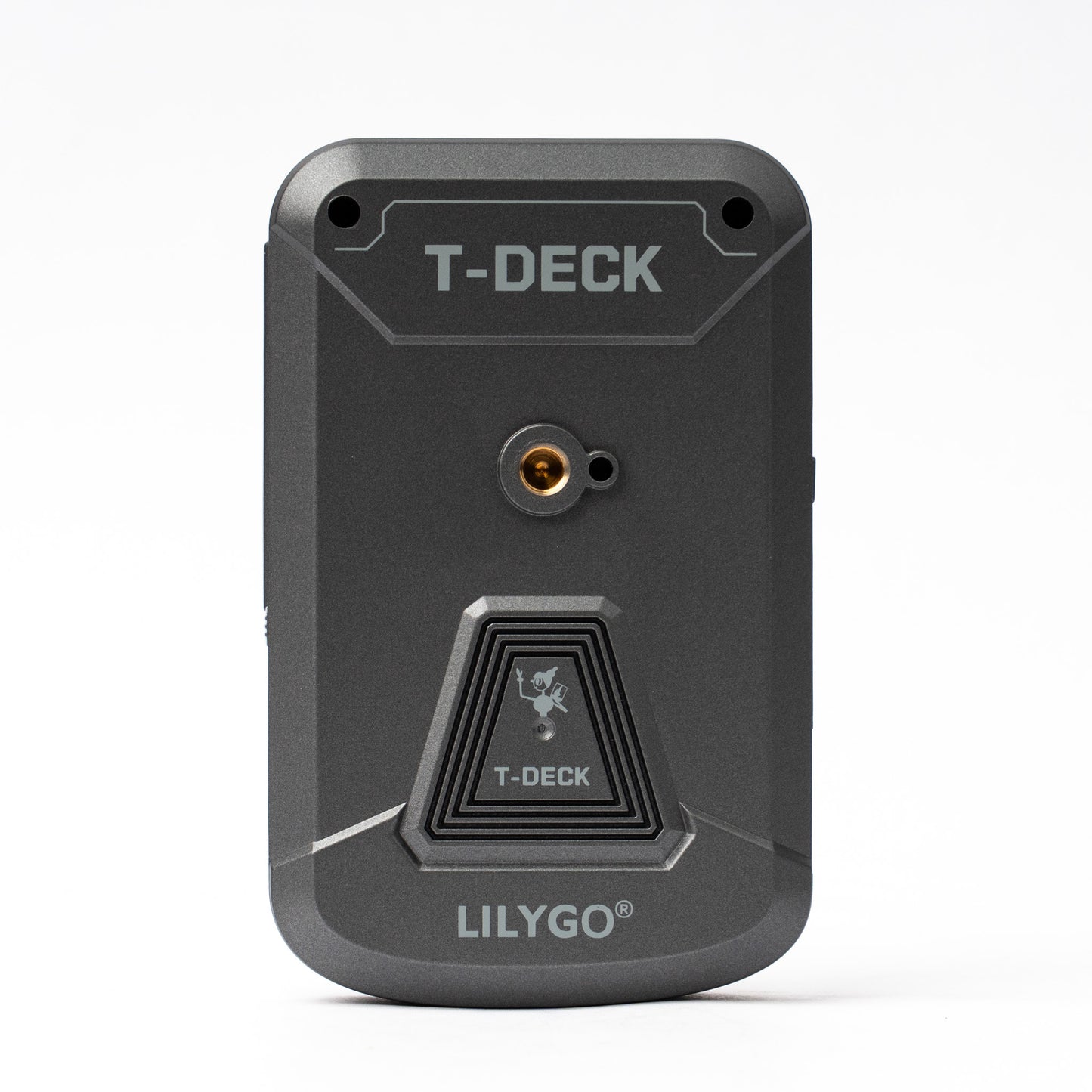

T-Deck Plus | Lilygo | Standalone LoRa communicator | Full Keyboard | Touch Screen

The LILYGO T-Deck Plus is a standalone handheld Meshtastic™ or MeshCore™ communicator with a built-in keyboard, touchscreen, trackball, GPS, and LoRa radio. Send and receive off-grid text messages with nothing else in your pocket. No phone required.

Most mesh radios need a phone paired over Bluetooth just to type a message. When your phone is dead or left behind your node goes quiet. The T-Deck Plus puts the radio, screen, and keyboard in one device, so the whole communicator is in your hand.

Who it's for

• Off-grid adventurers who want one device for trail messaging instead of juggling a node and a phone
• Emergency-minded families and preppers building a grab-and-go communicator that works when cell networks don't
• Mesh network builders who want a handheld terminal for checking traffic and administering repeaters in the field
• Meshtastic™ newcomers who want the most approachable on-ramp: turn it on, open a chat, start typing

Key Benefits

• 📱 No Phone Required with a physical QWERTY keyboard, 2.8 inch touchscreen, and trackball for fully standalone messaging
• 📡 Long-Range LoRa from the SX1262 transceiver at +22dBm, with a detachable external antenna so you can upgrade your range
• 🗺️ GPS and Offline Maps built in, with a microSD slot for loading map tiles and viewing your mesh on a real map without internet

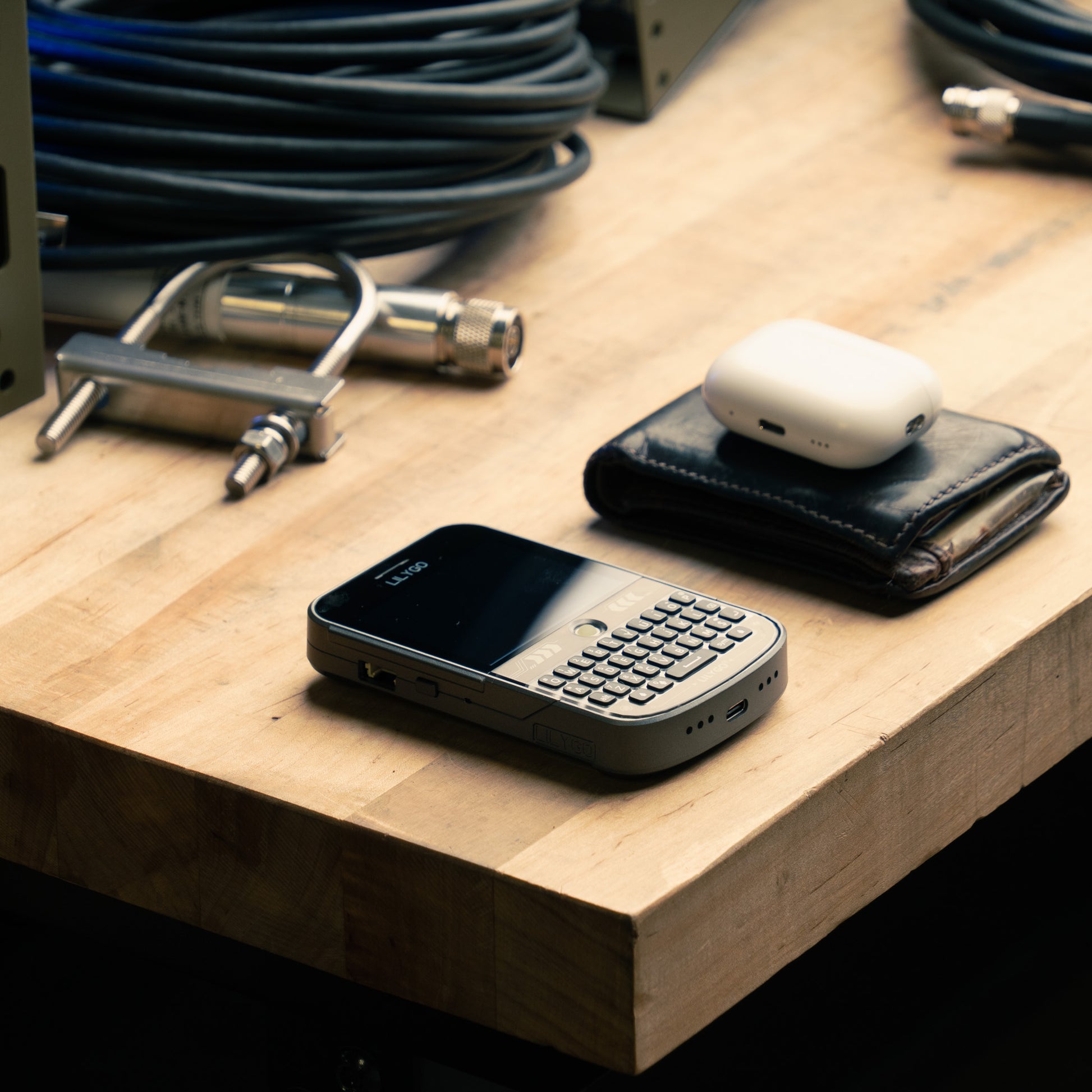

• ⌨️ Small Form Factor that fits in your pocket

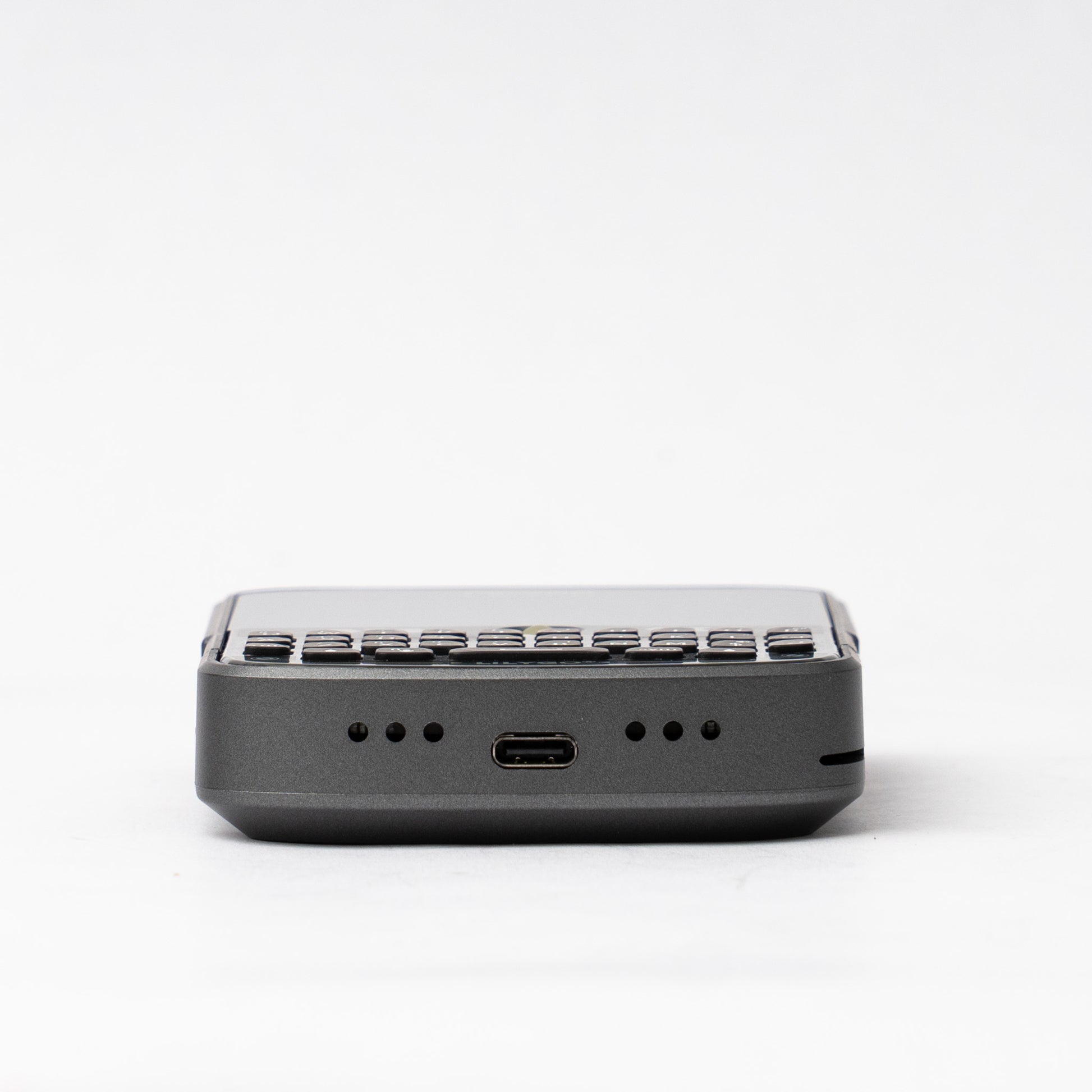

• 🔋 Built-In 2000mAh Battery charges over USB-C and runs multiple days with GPS off and the screen dimmed

How it Works

Power it on and the T-Deck Plus joins the mesh. Scroll your contacts and channels with the trackball or touchscreen, type messages on the physical keyboard, and watch positions of other nodes appear on the map. With map tiles loaded on a microSD card, you get full situational awareness of your mesh with zero internet connection.

Prefer the phone app for longer messages or deeper settings? The T-Deck Plus can also pair to your phone over Bluetooth like a traditional node.

✅ No Cell Towers
✅ No Internet
✅ No License
✅ No Subscriptions
✅ No SIM Cards
✅ Free, Open-Source Firmware & App

Key Features

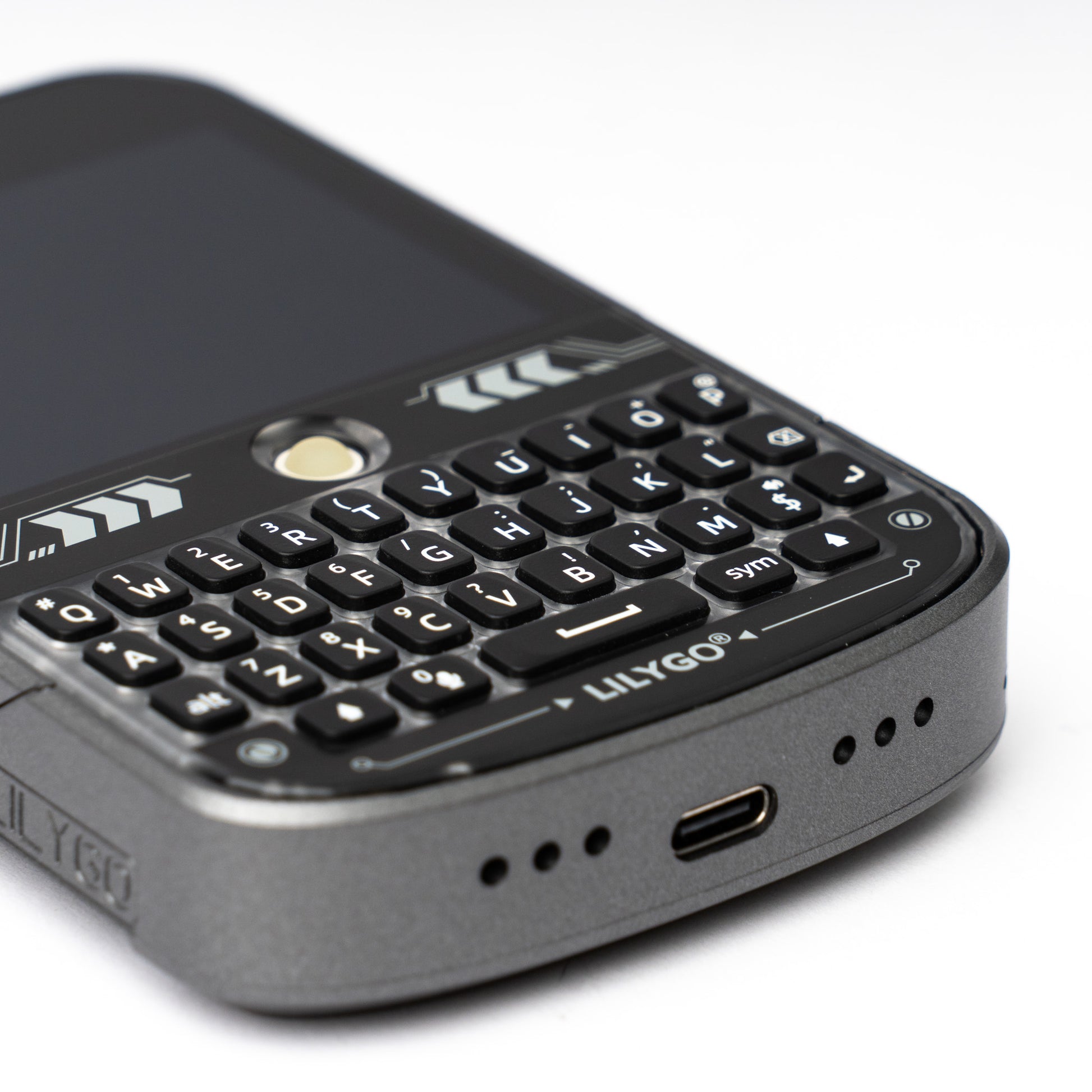

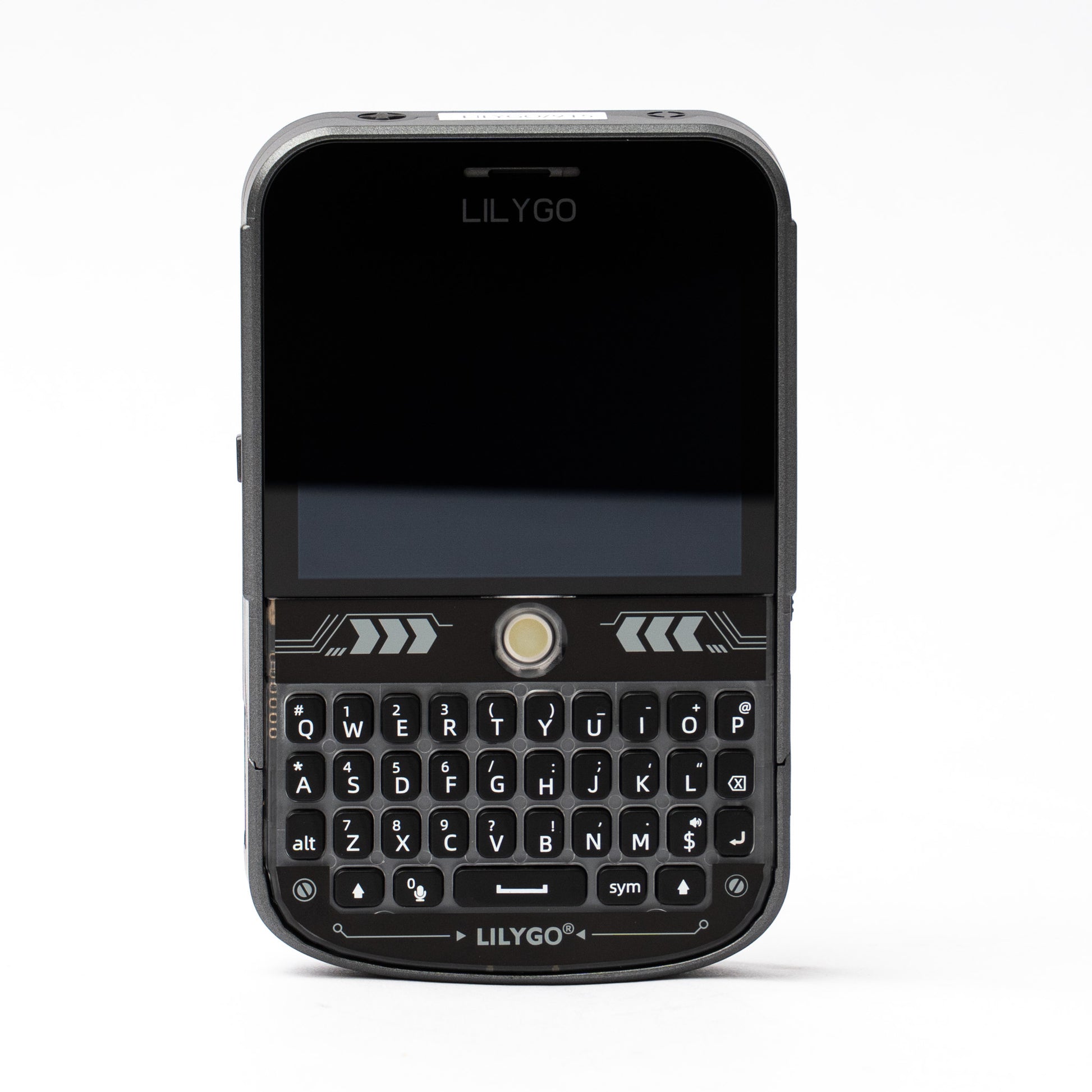

• Physical QWERTY Keyboard and Trackball for typing messages directly on the device.
• 2.8 Inch IPS Touchscreen at 320 x 240 resolution with full viewing angles, showing chats, node lists, signal info, and maps.
• Built-In GPS Module so the device reports its own position to the mesh and plots itself on the onboard map. No phone GPS sharing needed.
• Offline Maps via microSD (FAT32, up to 32GB recommended). Load map tiles once at home and navigate your mesh anywhere.
• Detachable External Antenna on a standard connector, so you can swap in a higher-gain antenna for serious range work.
• Your Choice of Firmware: we flash the latest stable Meshtastic™ or MeshCore™ immediately before shipping (not old firmware flashed months ago sitting on a shelf). You can re-flash between them yourself anytime in about ten minutes.
• ESP32-S3 Under the Hood with 16MB flash and 8MB PSRAM, plus 2.4GHz Wi-Fi, Bluetooth 5 LE, microphone, and speaker for future firmware features.
• Honest limitation: the T-Deck Plus has no waterproof rating. It's a fair-weather handheld, not a marine radio. Keep it in a pocket or dry bag in the rain. The 2000mAh battery is also modest for a device with a bright LCD; plan on daily charging with heavy use.

Specifications

What's in the Box

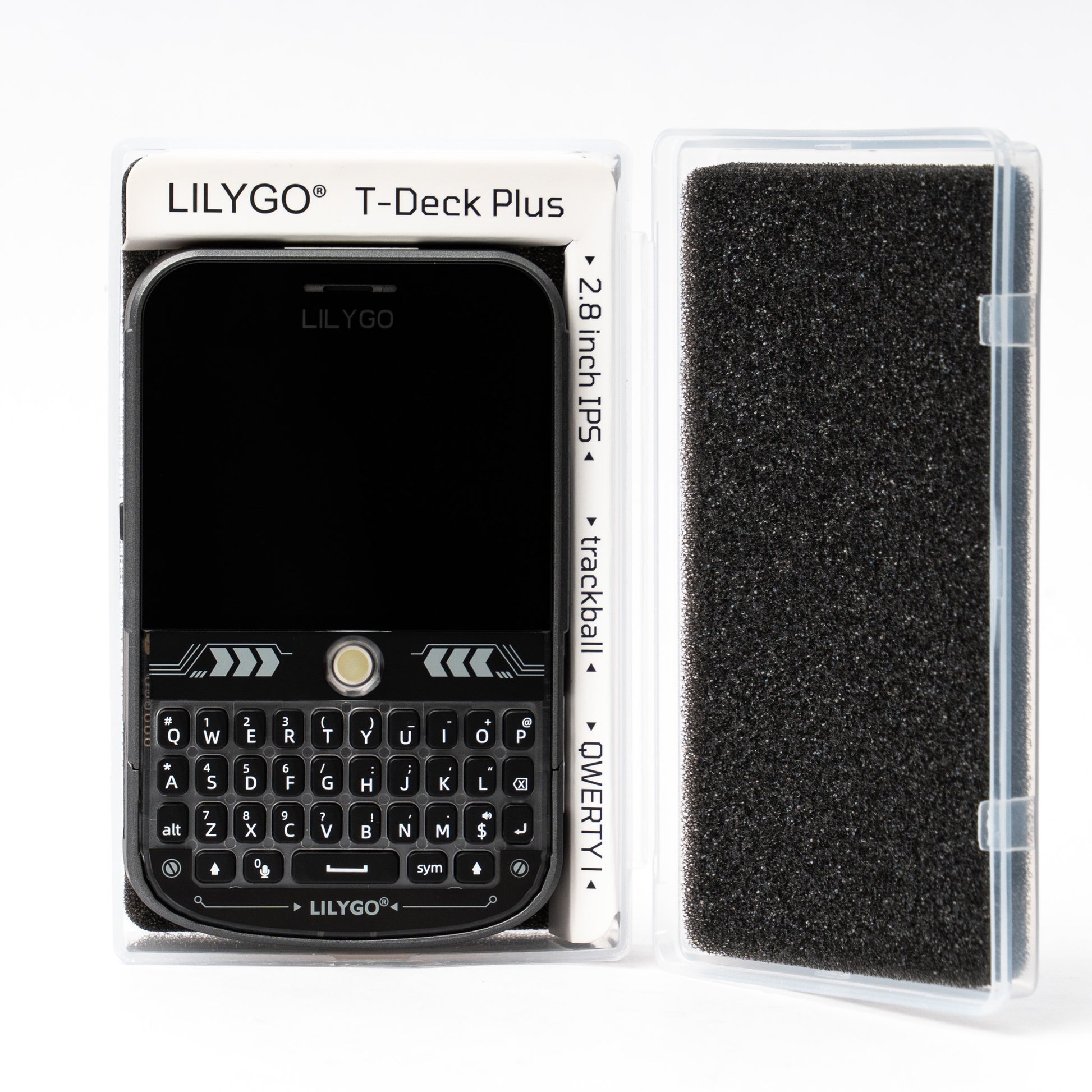

• T-Deck Plus handheld (fully assembled, flashed with your chosen firmware)
• 915 MHz external antenna
• USB-C charging cable
• Lanyard

Compatibility

• Runs Meshtastic™ or MeshCore™. Choose your firmware at checkout and we flash the latest stable release before shipping. You can re-flash between them anytime with the free web flashers.
• Pair it with an Atlavox Beacon solar node overhead to dramatically extend your home mesh coverage
• Messages reach every Meshtastic™ node on your mesh, including the Atlavox M1 and T1000-E
• For advanced users, you can install a firmware launcher to open different firmware on your device without having to reflash.

FAQ

Do I still need a phone to use it?

No. The T-Deck Plus works completely standalone: keyboard, screen, GPS, and radio are all built in. You can optionally pair a phone over Bluetooth to use the device as a regular node paired to the app, but it kind of defeats the purpose of owning a T-Deck because that mode disables the screen and the keyboard.

Why won't my phone pair over Bluetooth?

On Meshtastic™, the device UI and the phone app can't use the radio at the same time. If you're running the standalone interface (MUI), reboot the device and long-press the Meshtastic logo on the boot screen to enter Bluetooth mode, then pair. This trips up almost everyone once. Now you know.

How long does the battery last?

Expect roughly 1 to 2 days of typical use with GPS on and the screen waking regularly. Turning GPS off and dimming the screen can stretch that to 3 to 4 days. For a handheld you actively message on, think of it like a phone: charge it nightly and it will never let you down.

Can I load offline maps?

Yes. Add a microSD card (FAT32, 32GB or smaller recommended) loaded with map tiles and the T-Deck Plus displays your position and other nodes on a real map, no internet required. It's one of the best features of the device.

Should I choose Meshtastic™ or MeshCore™?

If you're joining an existing local mesh, match what your area runs (Meshtastic™ is the larger network in most of the US). If you're building a private network from scratch, MeshCore™ offers a leaner protocol with a polished standalone T-Deck experience. Either way you're not locked in: re-flashing between them takes about ten minutes with a free web flasher.

Is it waterproof?

No. The T-Deck Plus has no IP rating. It handles trail dust and pockets fine, but keep it out of rain and spray, or carry it in a dry bag when the weather turns.
