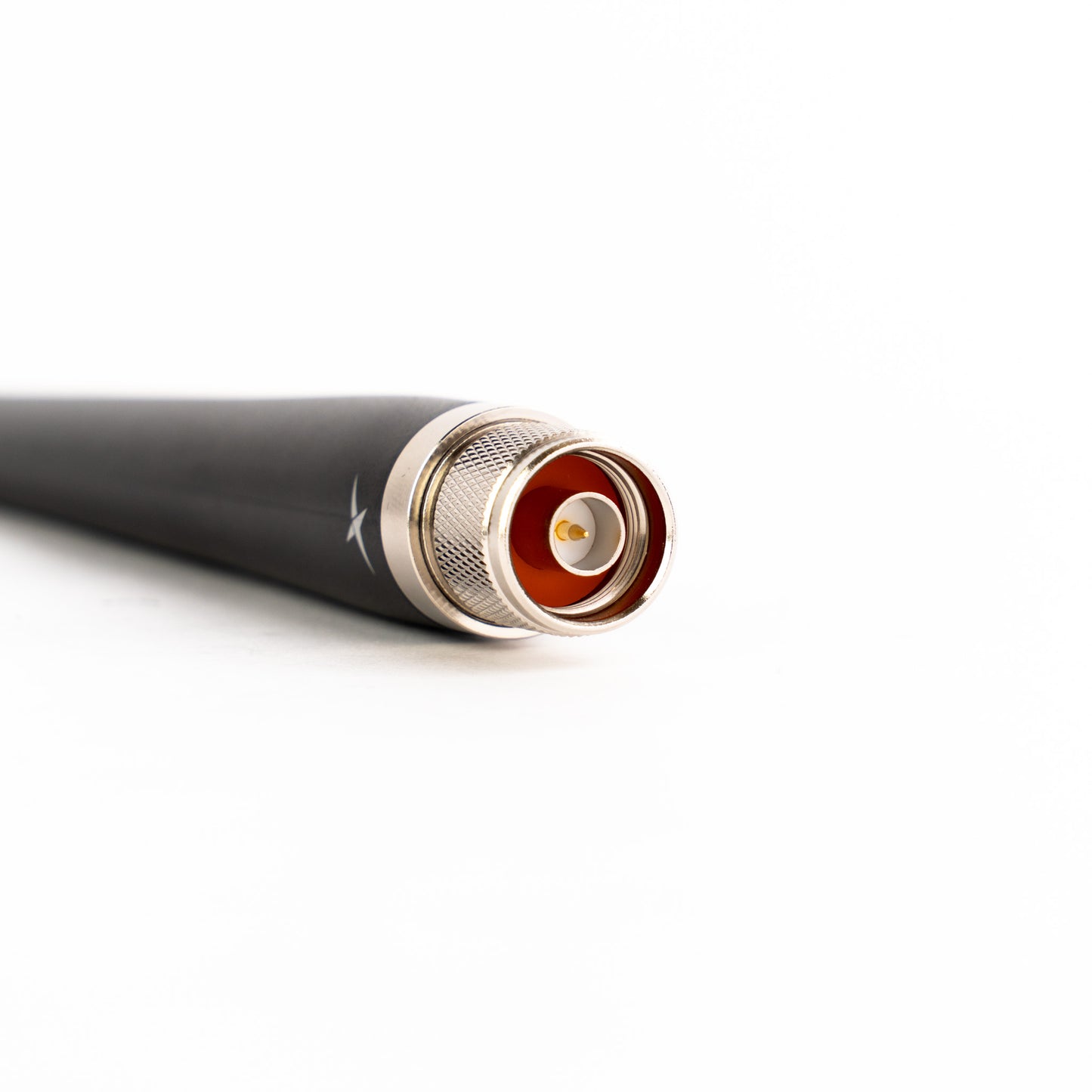

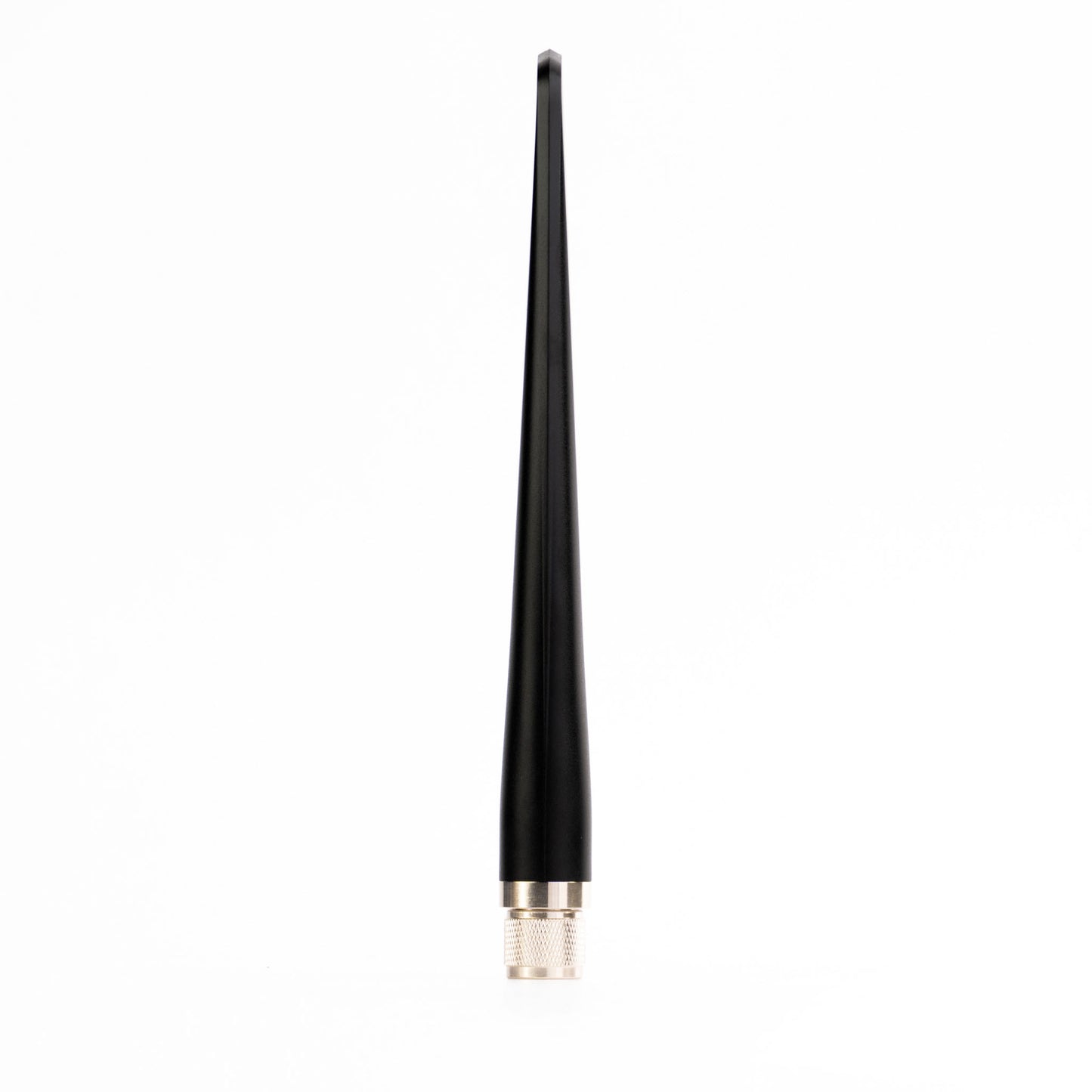

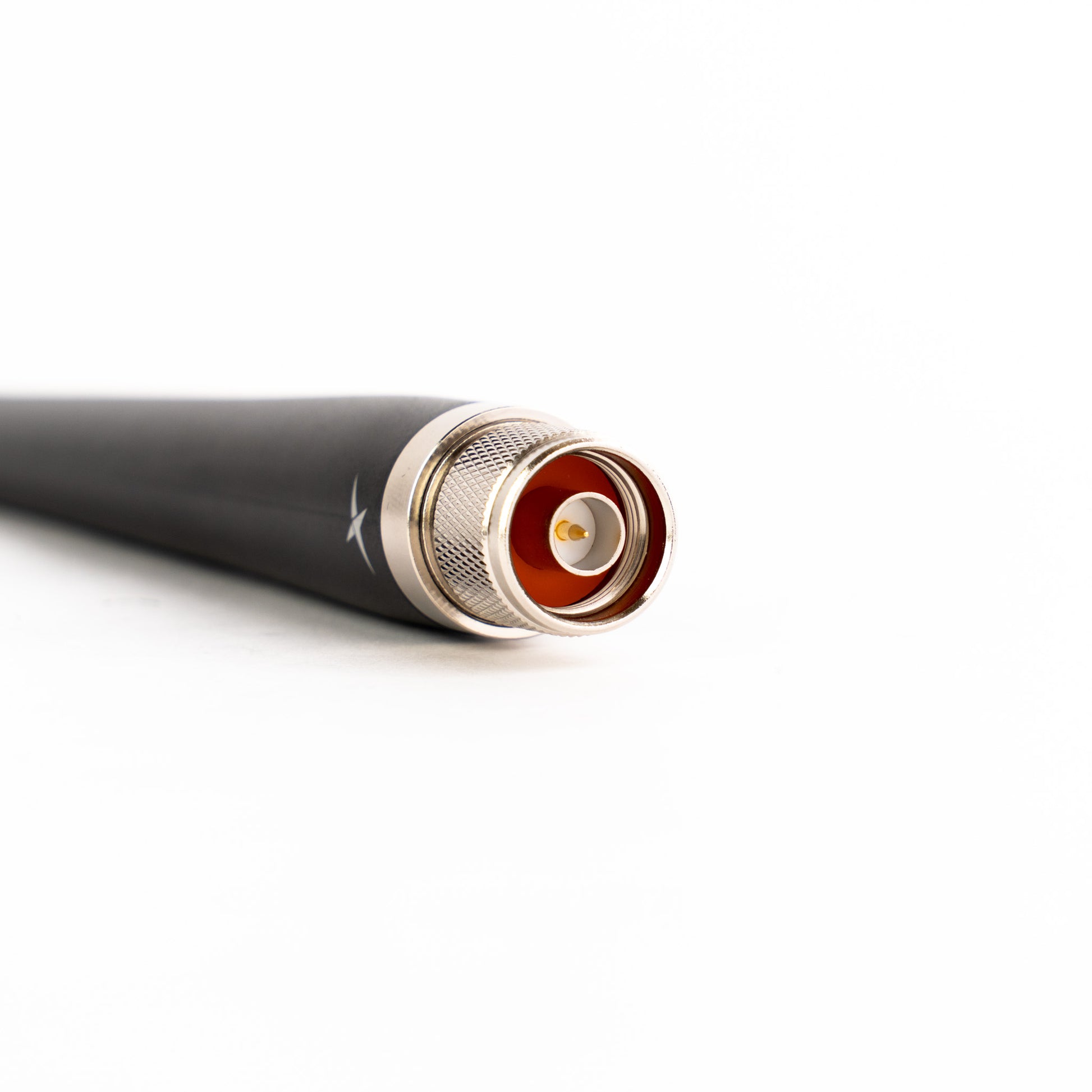

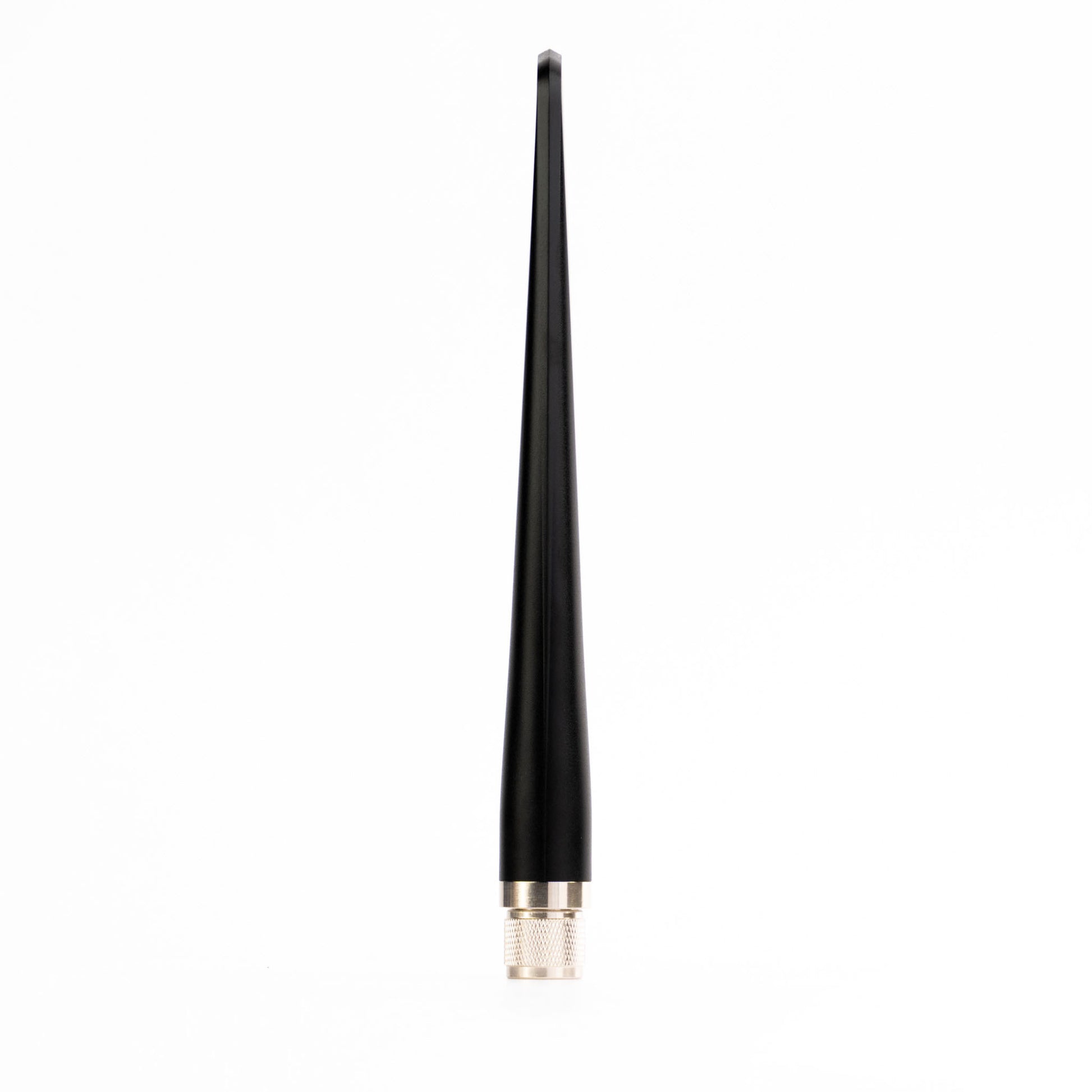

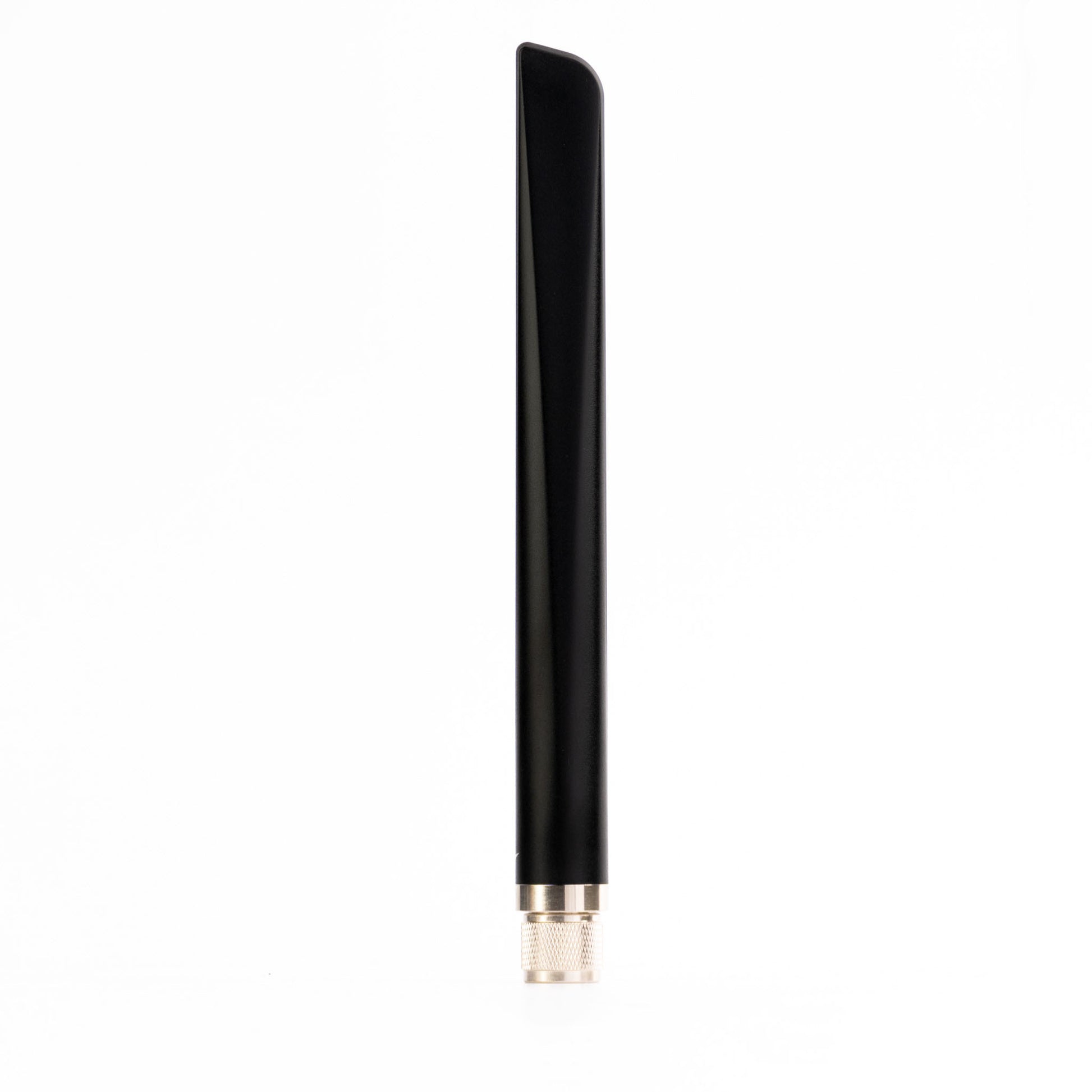

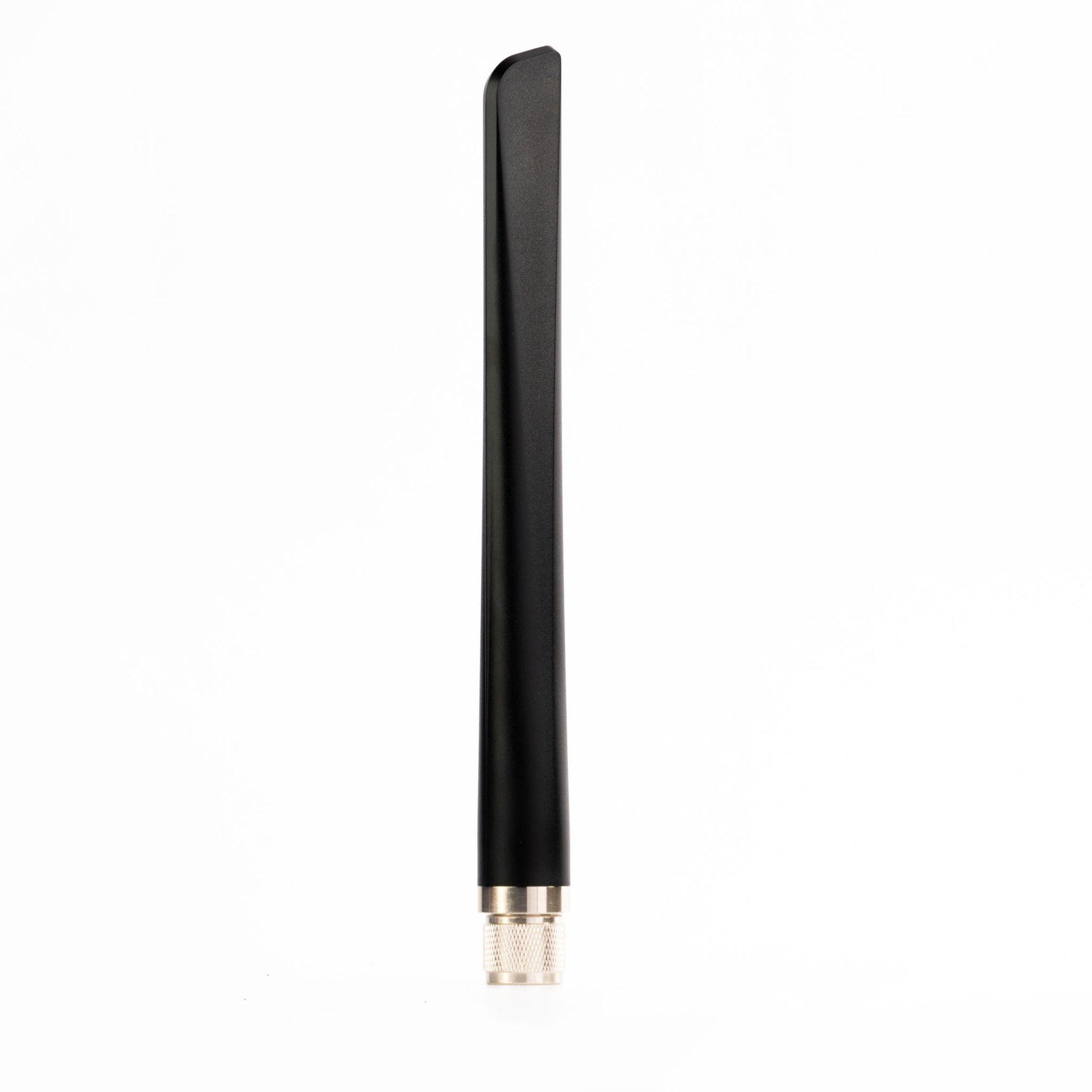

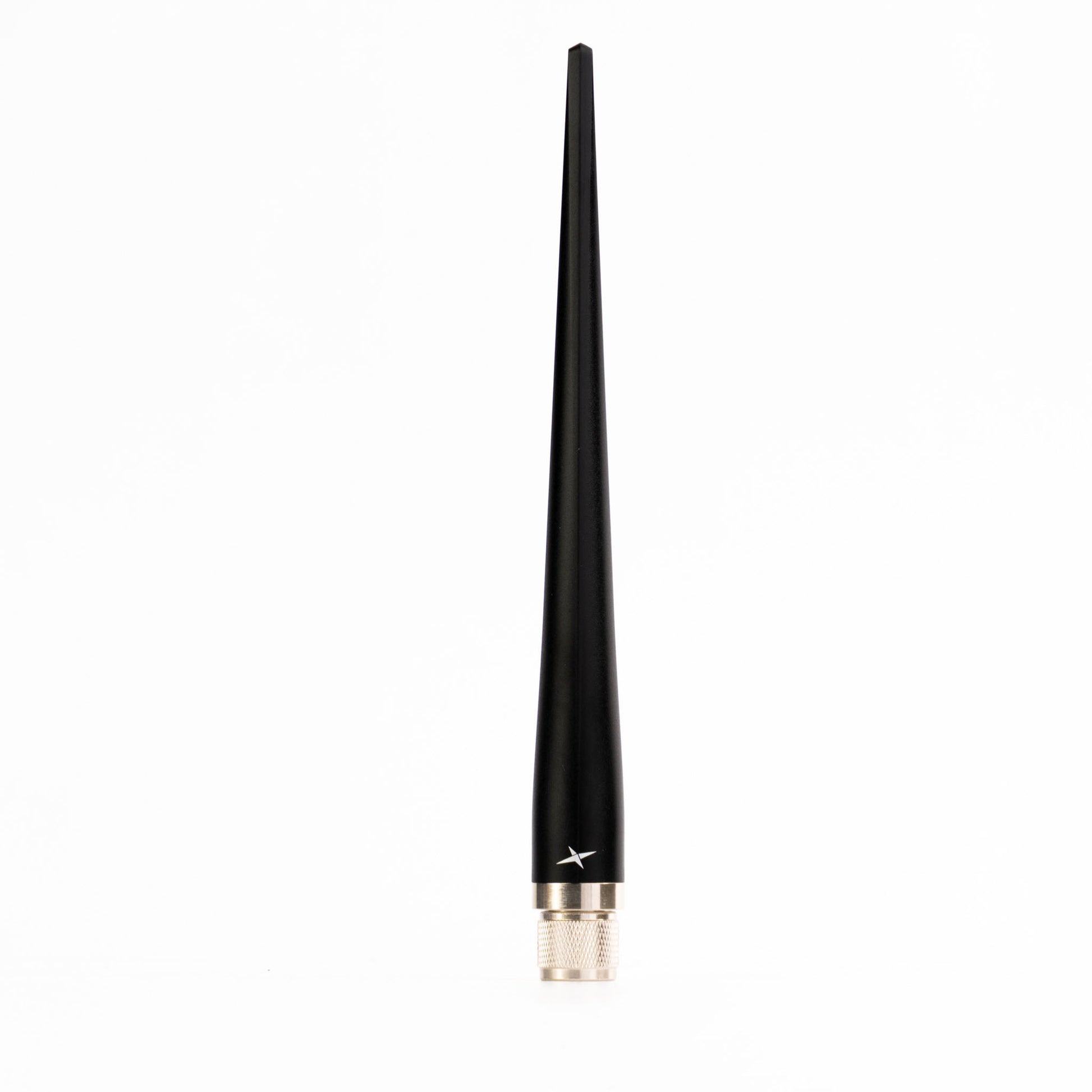

The Taoglas Blade TD.95.6H31 is a high-performance, omnidirectional N-Type Male mount dipole antenna designed for Meshtastic/MeshCore LoRa communication. It has exceptional performance in the 915MHz spectrum, but also performs well at 868MHz making it an ideal broadband antenna, a perfect universal antenna for use worldwide with excellent efficiency and gain characteristics.
The TD.95 features a robust PC/ABS enclosure, ideal for indoor/outdoor applications. This antenna performs excellent without a ground plane – 3dBi Gain with an Omni-directional pattern for constant reception/transmission.
Recommended for high powered 1w LoRa radios: Excellent low-gain antenna for 1w radios for uniform omnidirectional coverage. When you have a high-powered radio, you don’t need to sacrifice your upper and lower viewshed by focusing your transmit power with a high-gain antenna. Instead, use a low gain antenna like the TD.95 to have superior transmit and receive from all directions. The ultimate omnidirectional antenna!
Key Features:
- Covers Frequencies 868 thru 915 MHz
- Omnidirectional Dipole (Ground Plane Independent) Antenna
- PC/ABS Enclosure
- Connector: N-Type Male
- Dimensions: 228×Ø27.8mm
- RoHS & Reach Compliant
- Indoor/Outdoor
