WisMesh 1W Booster Starter Kit

Where To Buy (AFFILIATE LINKS)

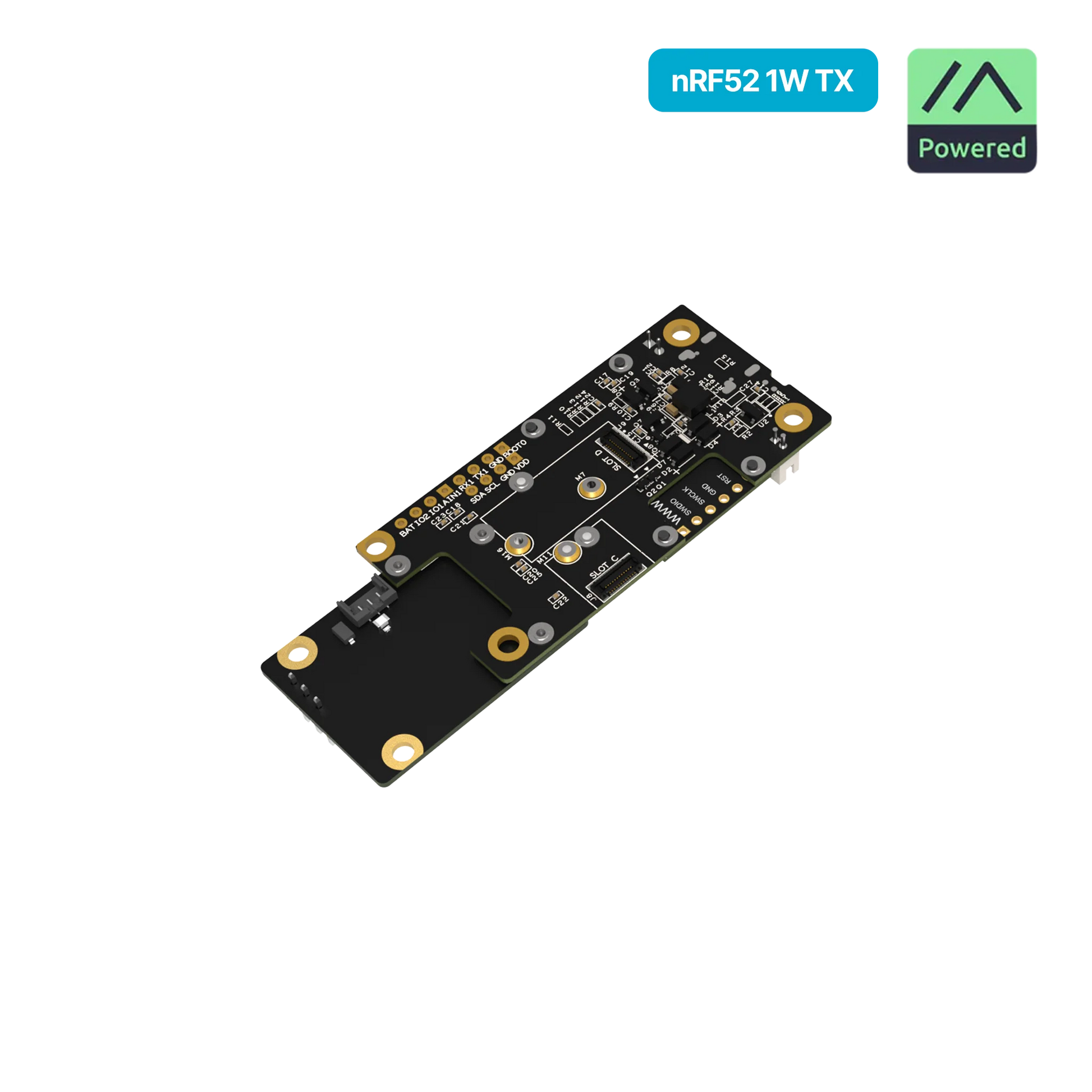

The WisMesh 1W Booster Starter Kit is a high-power Meshtastic radio kit that dramatically extends the range of your mesh network. Built around the same RAK19007 WisBlock base board used in the Atlavox M1 and Beacon, this kit swaps the standard LoRa transceiver for the RAK13302 — a 1-watt LoRa module with a dedicated power amplifier, low-noise amplifier, and RF filter built in. The result is significantly more transmit power and better receive sensitivity compared to standard Meshtastic radios.

Connect to your phone via Bluetooth with the free Meshtastic app to send texts and location data off-grid. No cell service. No internet. No subscriptions. No license required.

Why 1 Watt Matters

Most Meshtastic radios transmit between 100–160 milliwatts. This kit transmits at up to 1 watt (30 dBm) — roughly 6–10x more power. But raw power is only half the story. The RAK13302 module integrates the Skyworks SKY66122 front-end, which includes a power amplifier, a low-noise amplifier (LNA), and a SAW filter. That means it's not just louder — it hears better too. You get cleaner signals, less interference, and more reliable two-way links at longer distances.

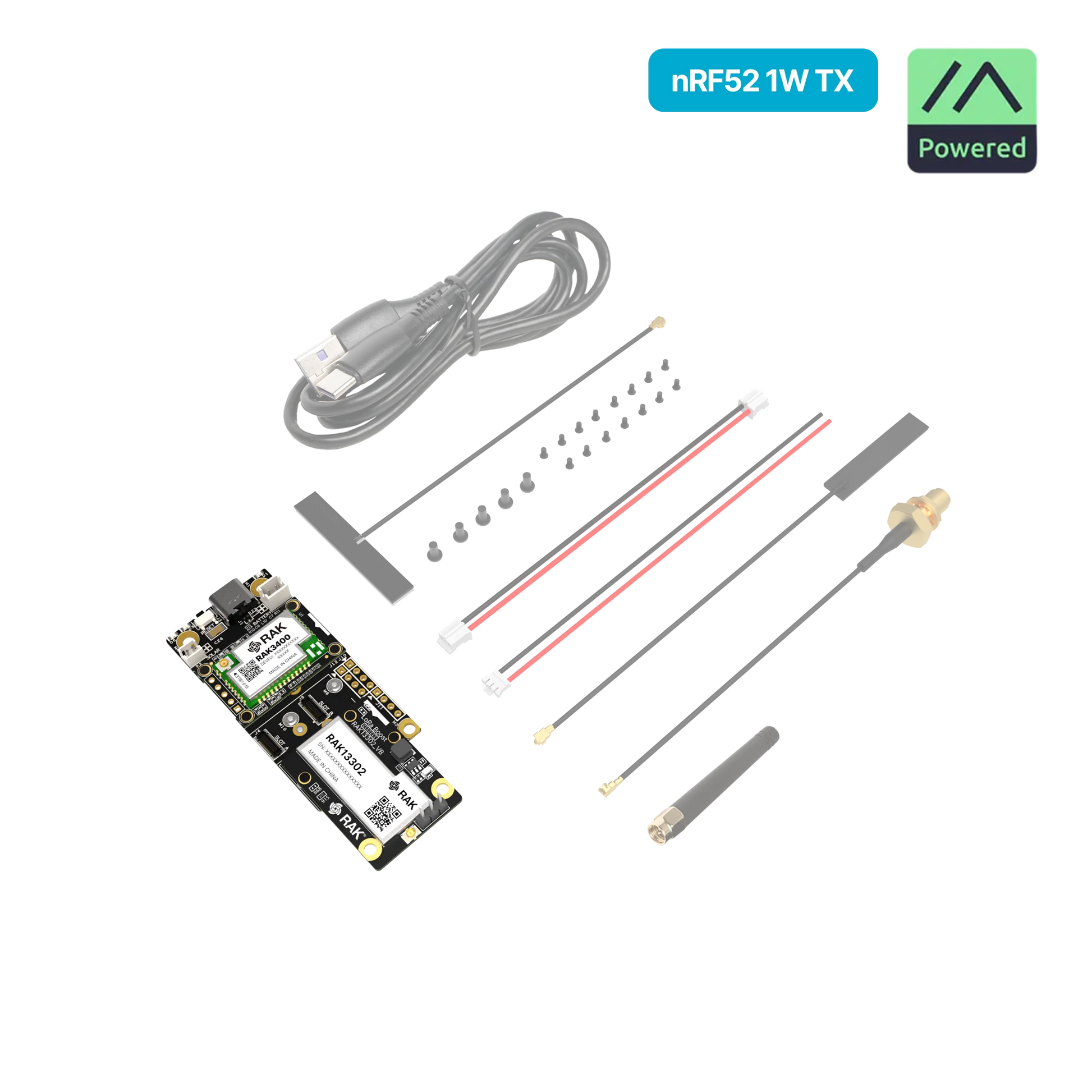

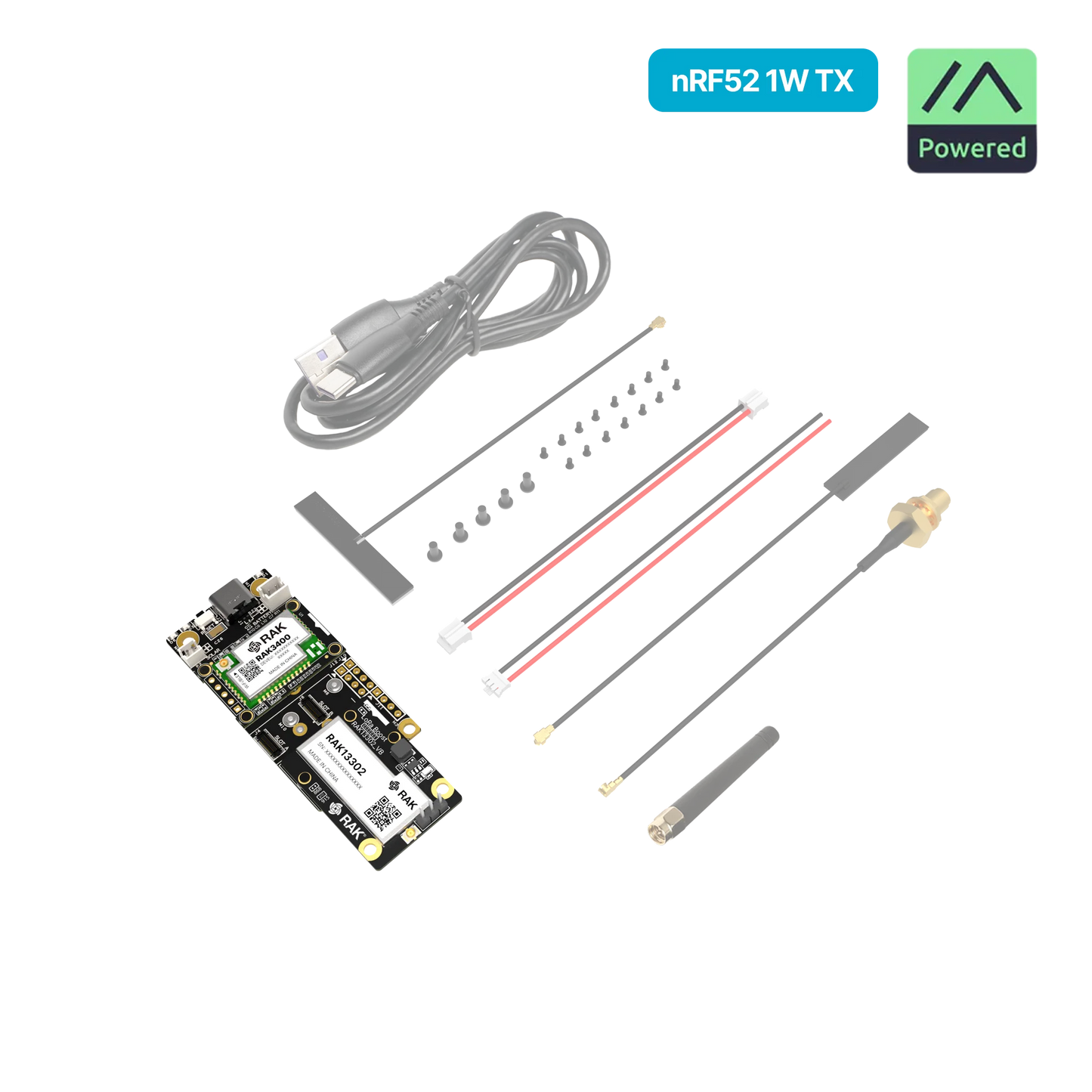

What's In the Kit

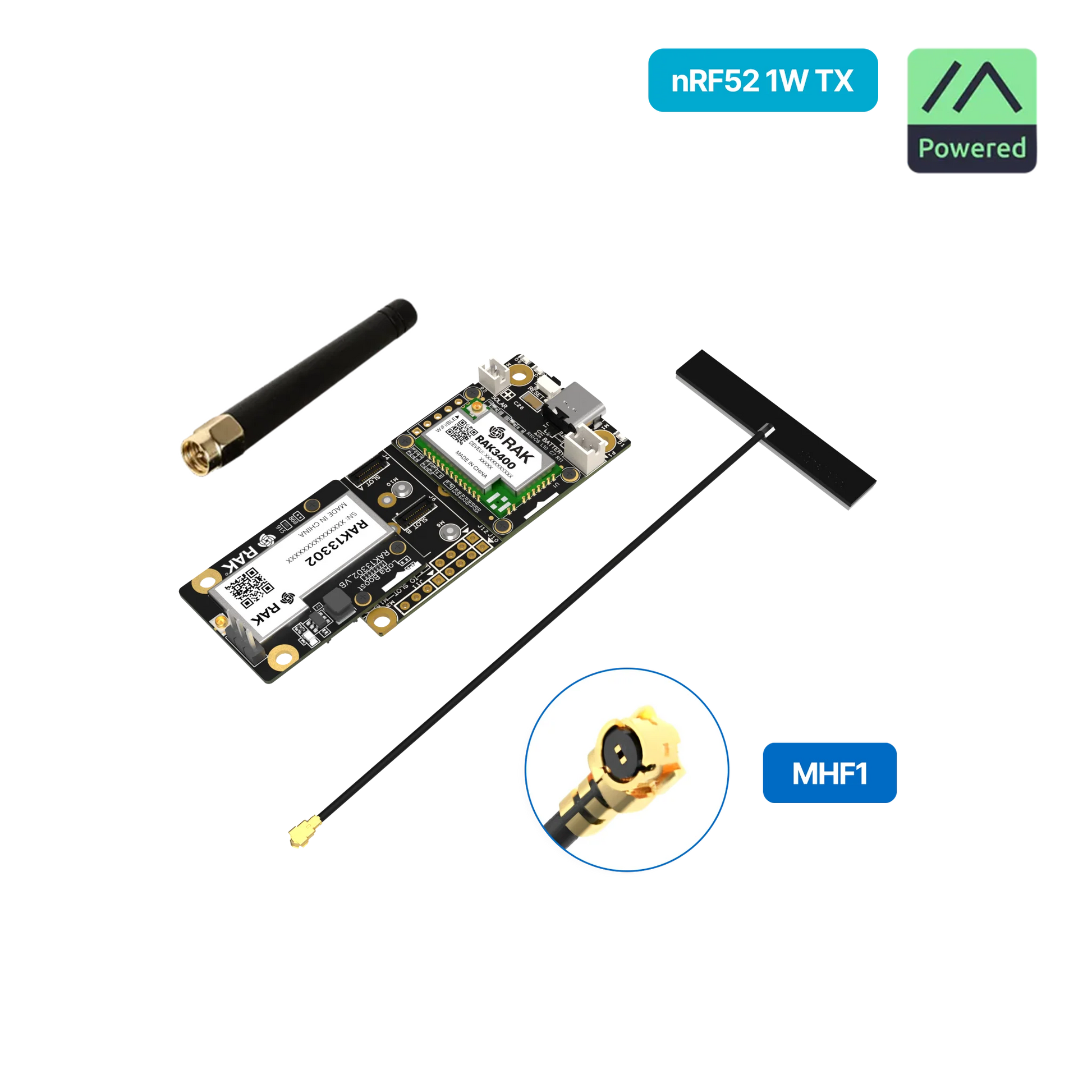

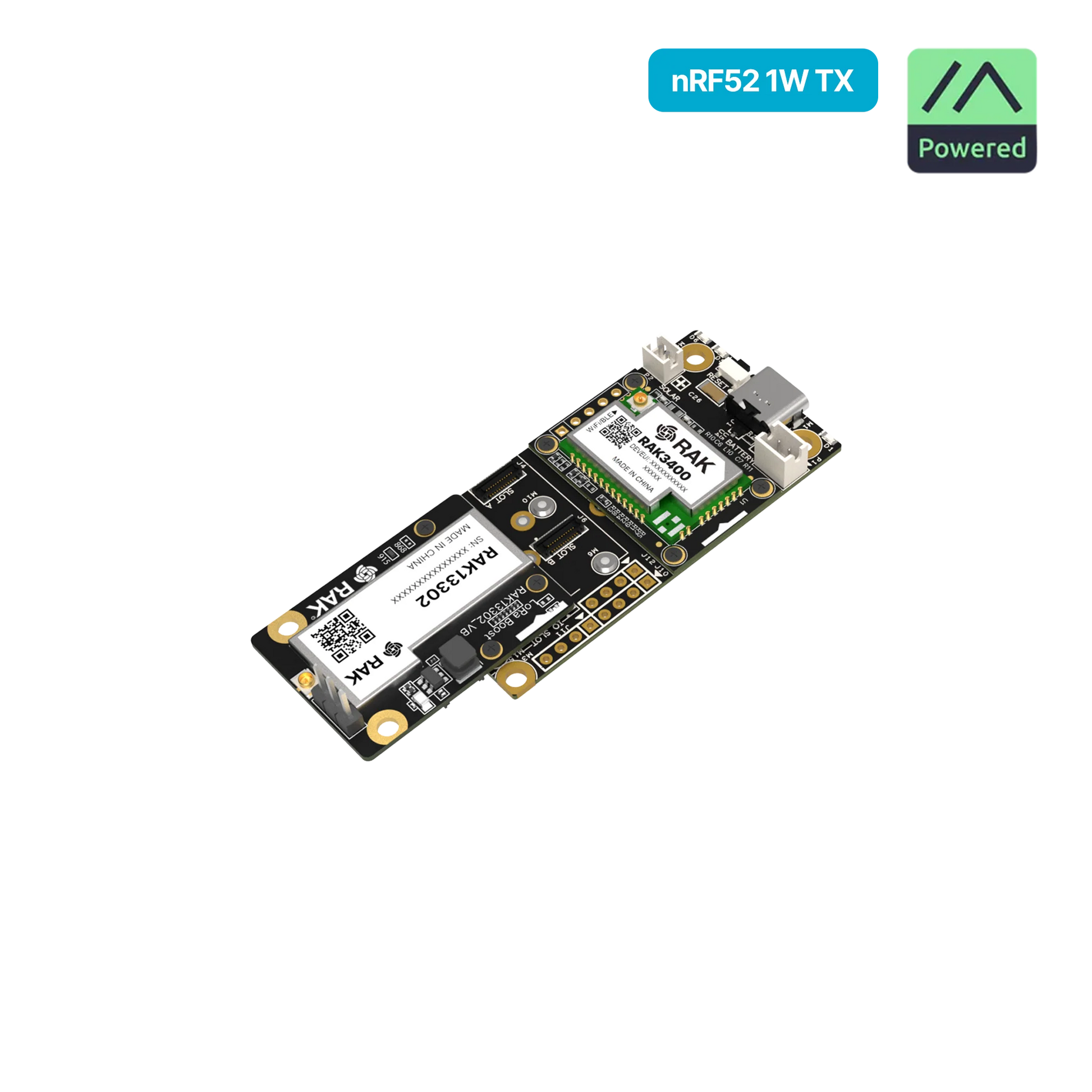

WisMesh 1W Booster Assembly
- 1x RAK19007 WisBlock Base Board
- 1x RAK3401 WisBlock Core Module (nRF52840)
- 1x RAK13302 1W LoRa Transceiver Module (SX1262 + SKY66122)
1x LoRa PCB Antenna
1x SMA Rubber LoRa Antenna
1x IPEX to SMA Adapter Cable for LoRa
1x BLE PCB Antenna
1x USB Cable
2x 5V Supply Cables
Screws & Quick Start Guide
