Signal Plus

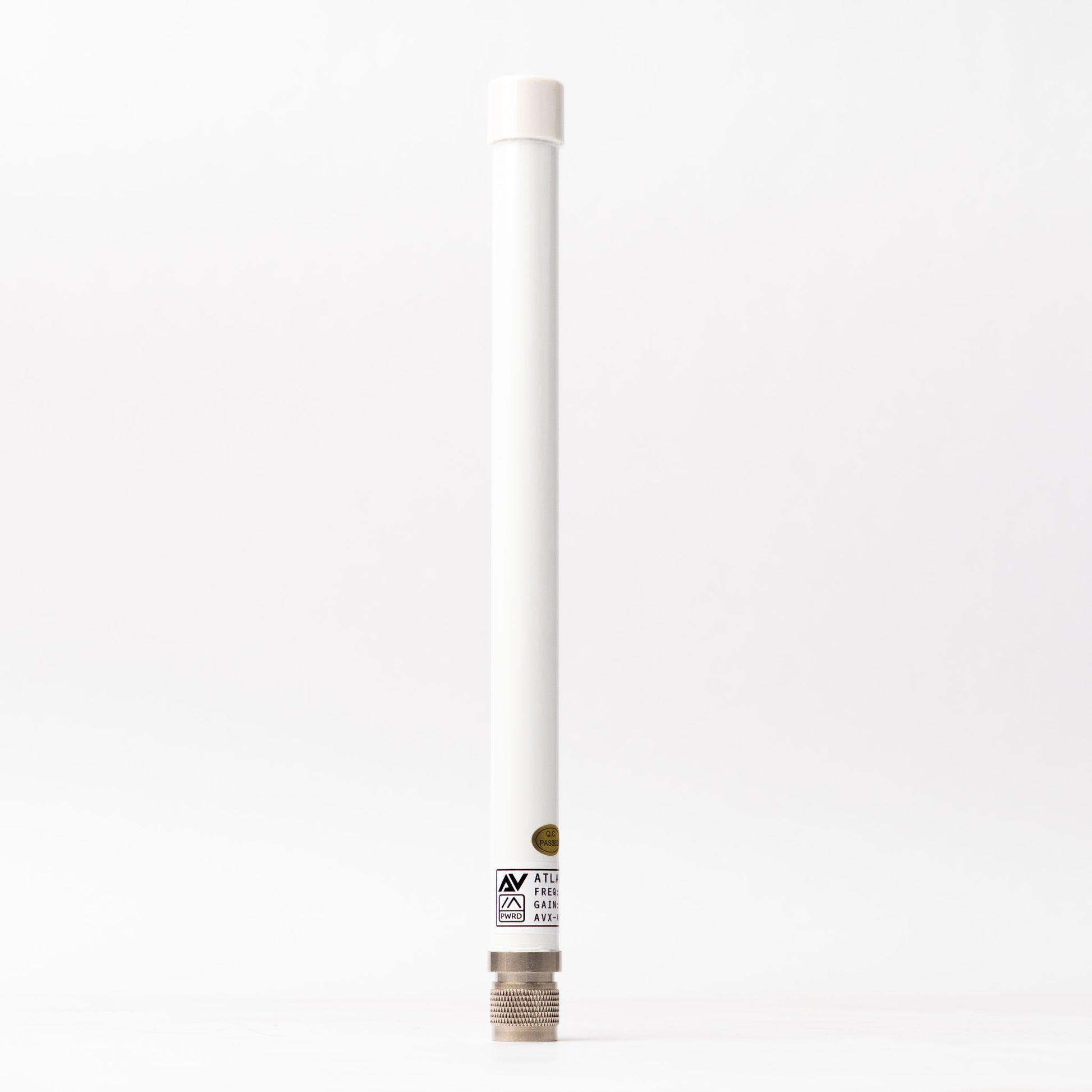

Antenna, 915MHz, N-Type, Outdoor, 11", 3dBi

Antenna, 915MHz, N-Type, Outdoor, 11", 3dBi

AVX-AN-NTP32

$26.99
$26.99
Sale Sold out
Shipping calculated at checkout.
View full details

Outdoor antenna compatible with Meshtastic and MeshCore. Optimized for the 915MHz band. Perfect for permanent outdoor solar nodes, POE, or any other outdoor Meshtastic radio that requires a weatherproof, UV-resistant, durable antenna.

  • Best For Varying Terrain: Handles forests, hills, and urban environments well.
  • Wider Coverage Angle: More forgiving if nodes move or are at varying elevations.
  • Compact & Versatile: Easier to mount, less noticeable, and suitable for closer-range or uneven ground.

Choosing a 3dBi antenna over higher-gain options is a strategic decision to maximize network reliability, coverage, and adaptability in challenging outdoor environments.

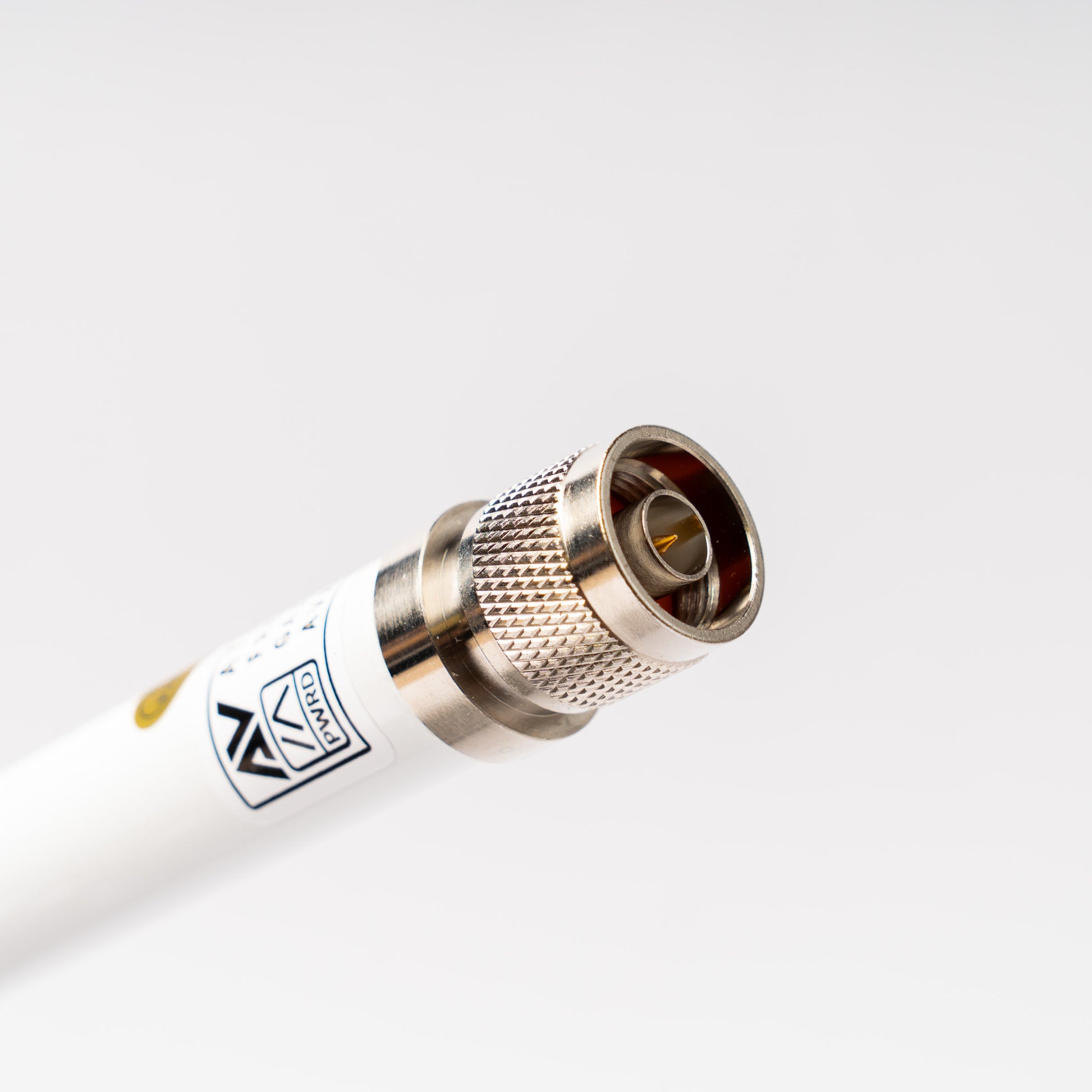

This antenna has an N-Type Male connector, which is stronger than an SMA connector and has a better weather seal. The connector gender refers to the conductor connection, not the threads on the housing. N-Type Male connectors have a female thread housing, with a male pin.

Specifications

RF Standard LoRa (Meshtastic™/MeshCore™)
Frequency 915MHz
Gain
3.0 dBi
LOW HIGH
Radiator Type Dipole
Antenna Style Fiberglass
Radiation Pattern Omnidirectional
VSWR (≤x:1)
1.5
EXCELLENT GOOD POOR
Impedance 50 Ohm
RF Connector N-Type Male
Length 280 mm
Weight 128 g
Manufacturer Signal Plus
915MHz, N-Type, Outdoor 11" 3dBi SWR Average Report 🔗
DATE: 5/12/2026 | SKU: AVX-AN-NTP32 | SAMPLE QTY: 5
  • 5 stars: 4 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
D
David Kyle
An Excellent Repeater Antenna

Works great, easily able to reach distant repeaters. Very rugged and weather resistance. N connector and not so large as to require additional mounting brackets. Good choice for a backyard repeater.

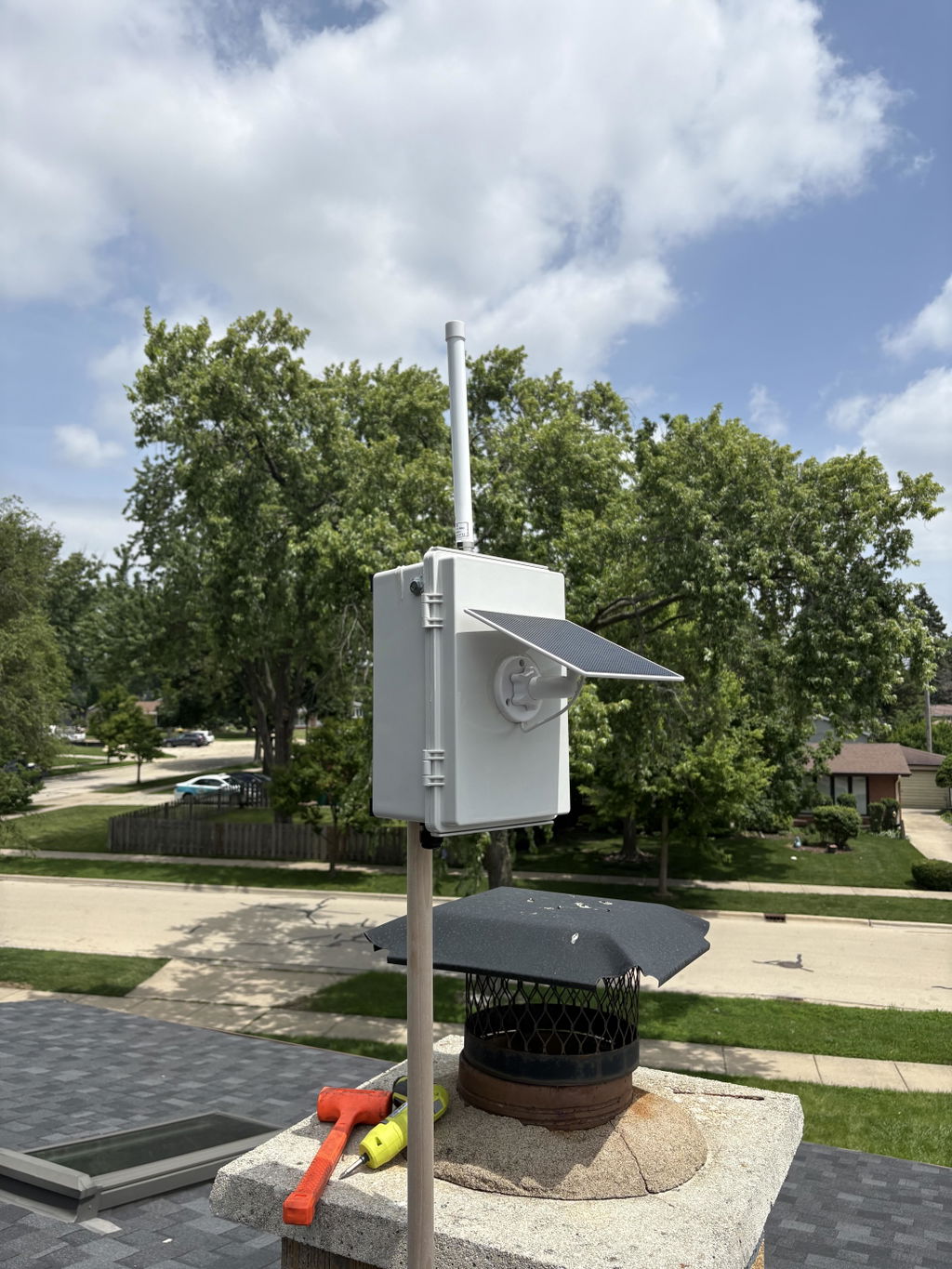

David Kyle review photo
A
Anonymous
It got me a lot more green squares in meshmapper

It got me a lot more green squares in meshmapper.

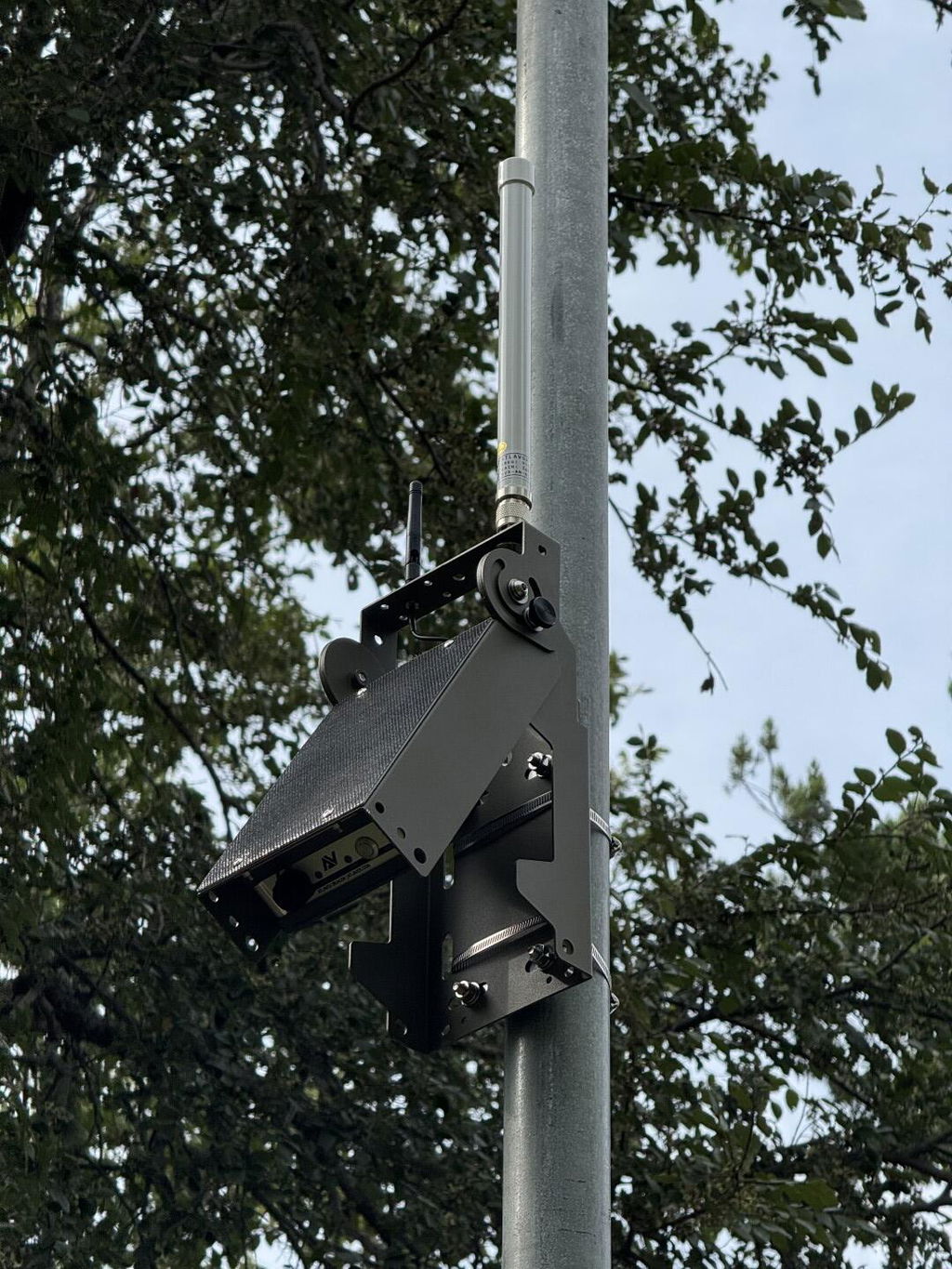

Anonymous review photo
P
Phillip Mackrael
N-Type, Outdoor, 11" Antenna

I seem to be getting better coverage than I was before with the standard 7” antenna. Thanks

C
Chris Leos
Really nice

Really nice, exactly what I needed for this repeater project👍 Tnx!
