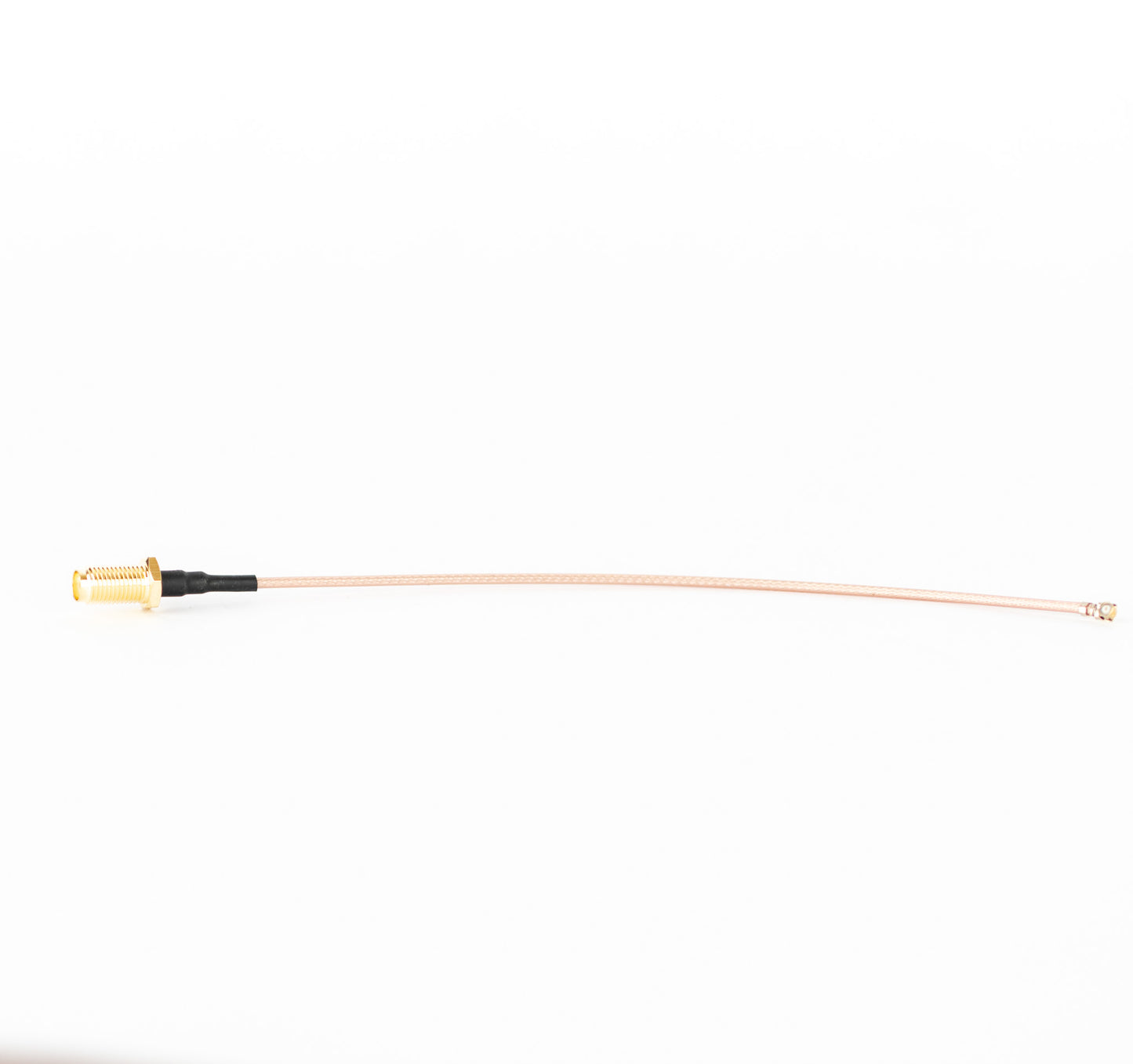

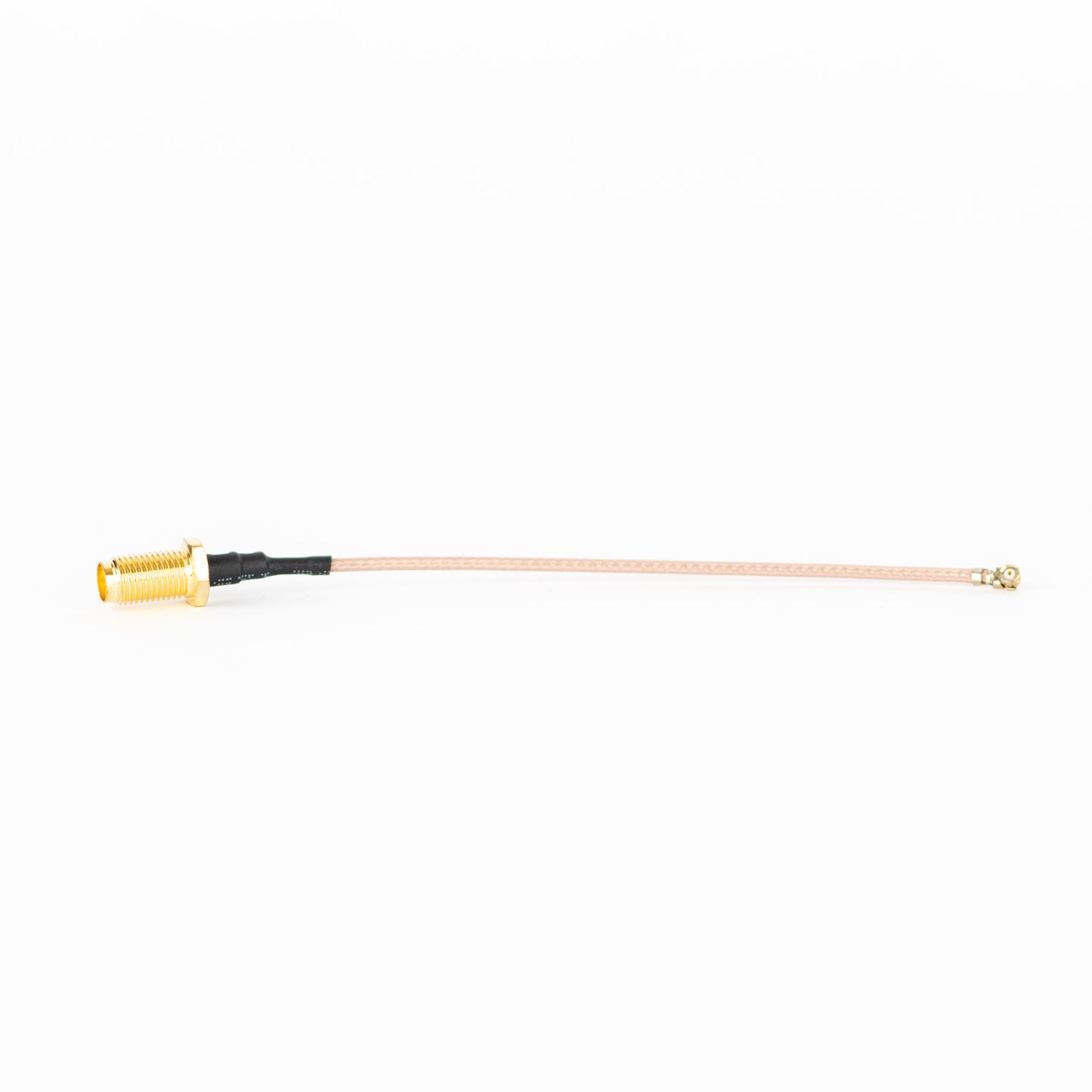

Antenna Cable - RG178 - IPEX-F TO SMA-F

Antenna Cable - RG178 - IPEX-F TO SMA-F

Regular price $3.00 USD
Regular price Sale price $3.00 USD
Sale Sold out
Shipping calculated at checkout.
Length

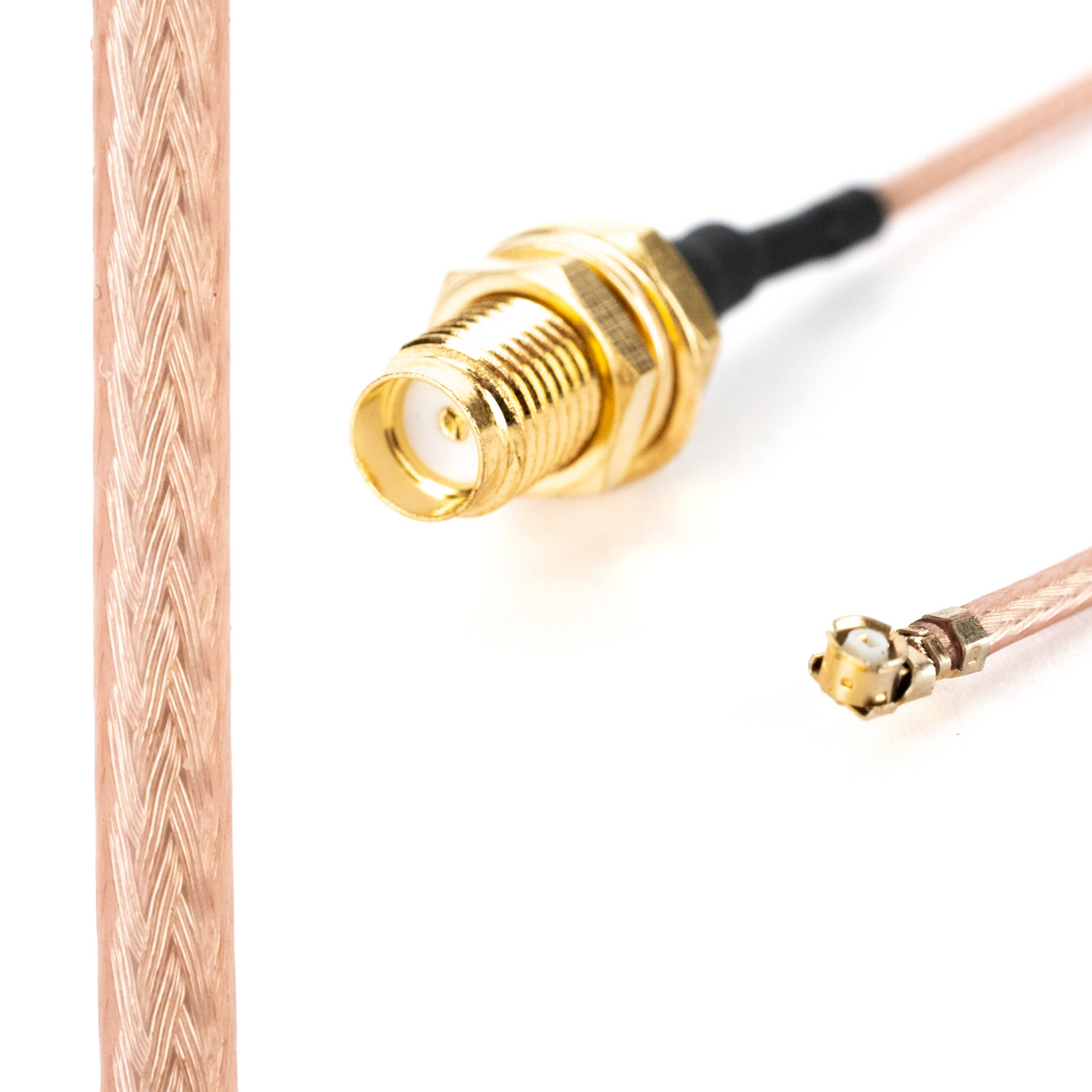

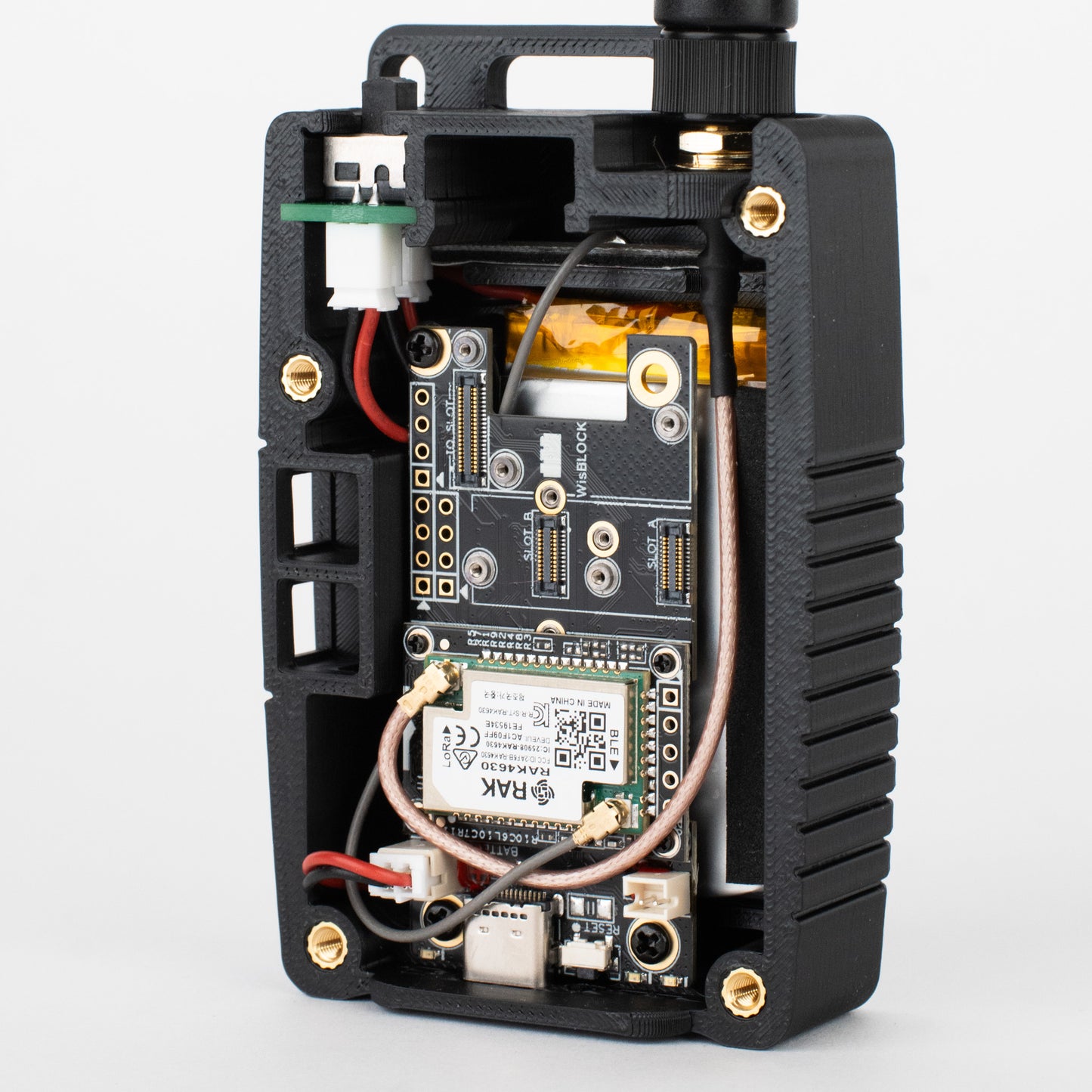

Antenna cable for connecting an SMA antenna to a Meshtastic® radio with an iPEX-F connection. Compatible with RAK WisBlock, Heltec V3, Heltec T114, LILYgo T-Beam Supreme, and more. Perfect for DIY handheld Meshtastic radios to connect your internal radio to an external antenna. This is a direct replacement cable for the one used in the Atlavox M1. It uses RG178 cable, which is thicker and has less signal loss than the cable included in the RAK Meshtastic Starter Kit.

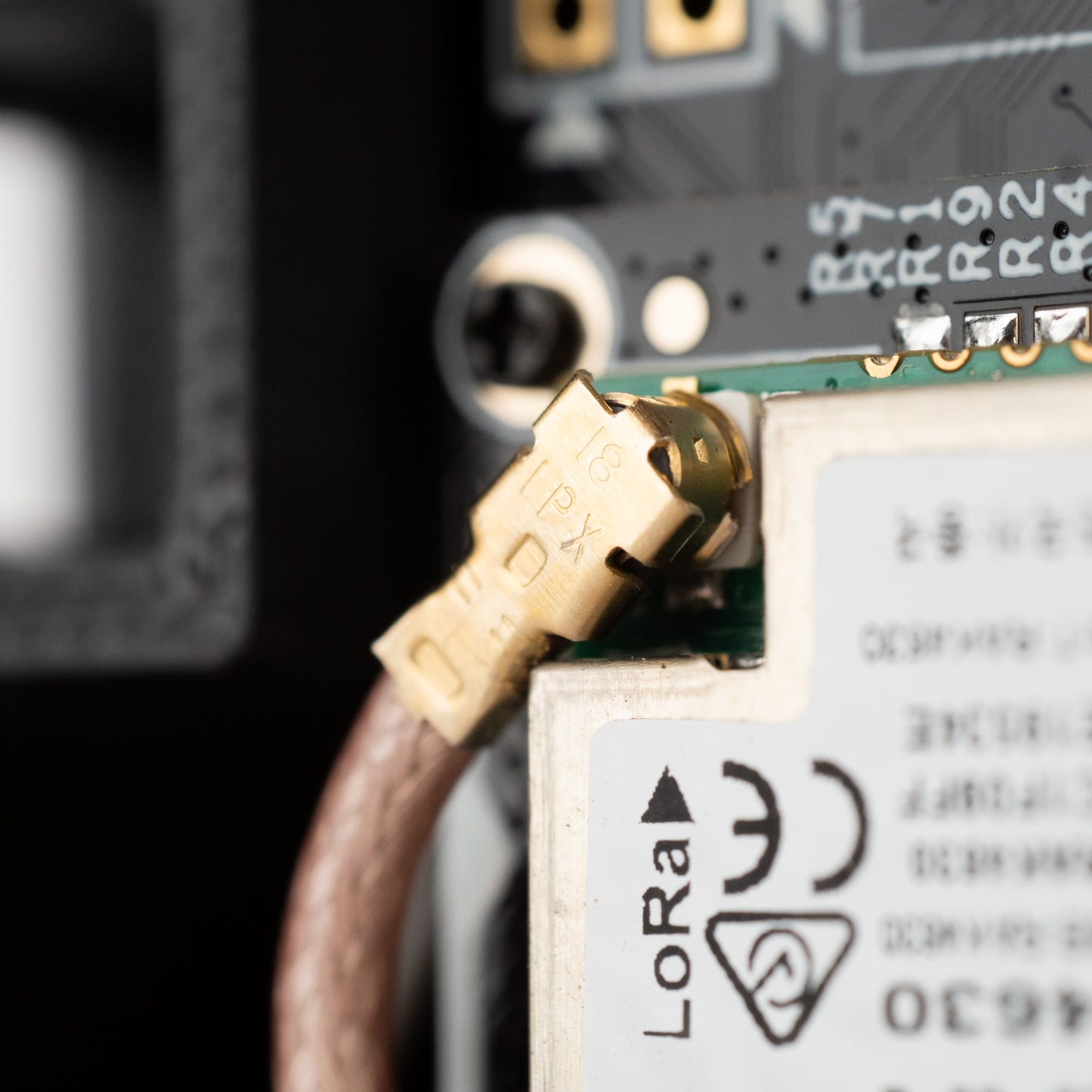

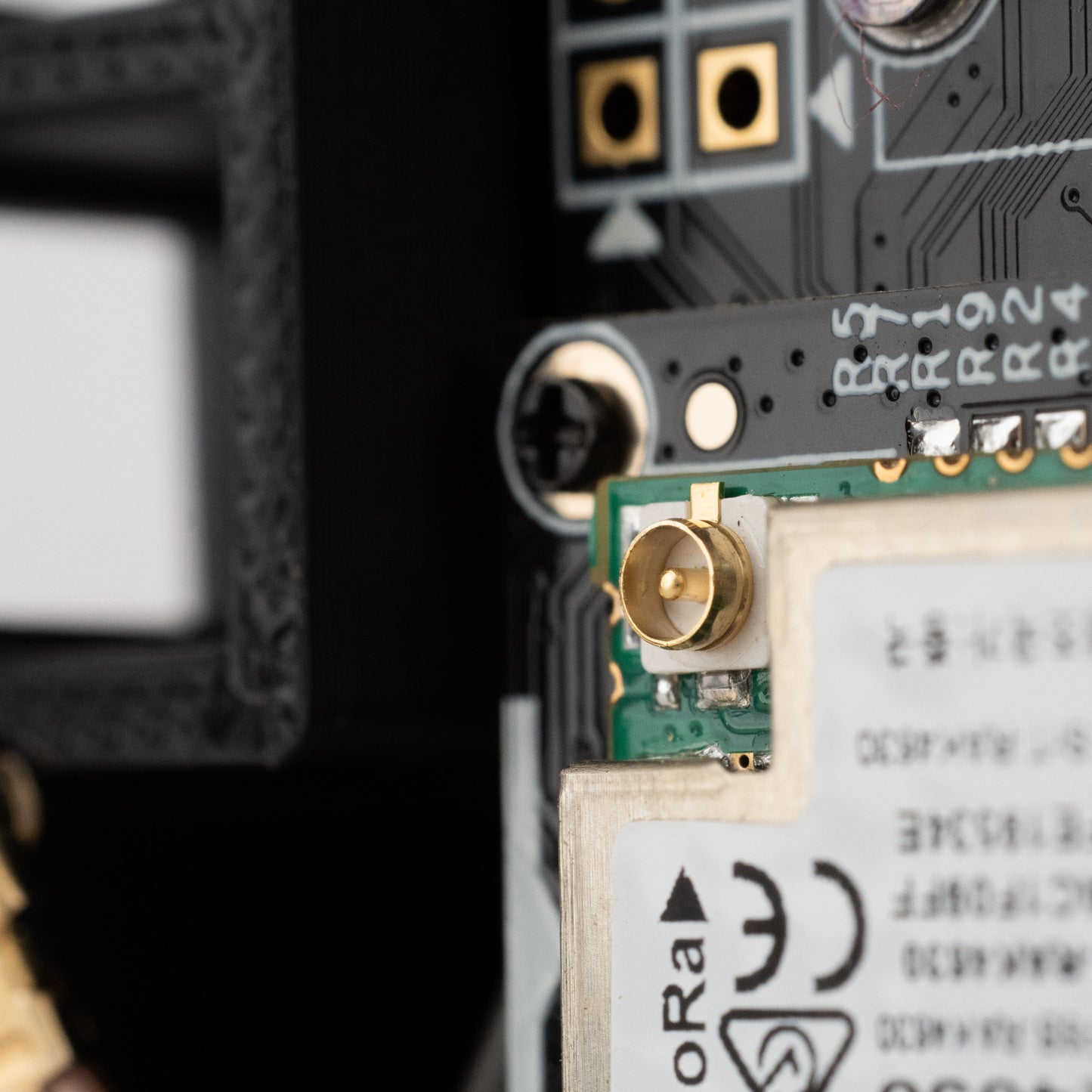

iPEX-F connector snaps onto an iPEX-M connector typically found on Meshtastic PCB radio circuit boards. The three built-in brass retaining tabs securely lock onto the circular iPEX-M connector without needing any additional hardware.

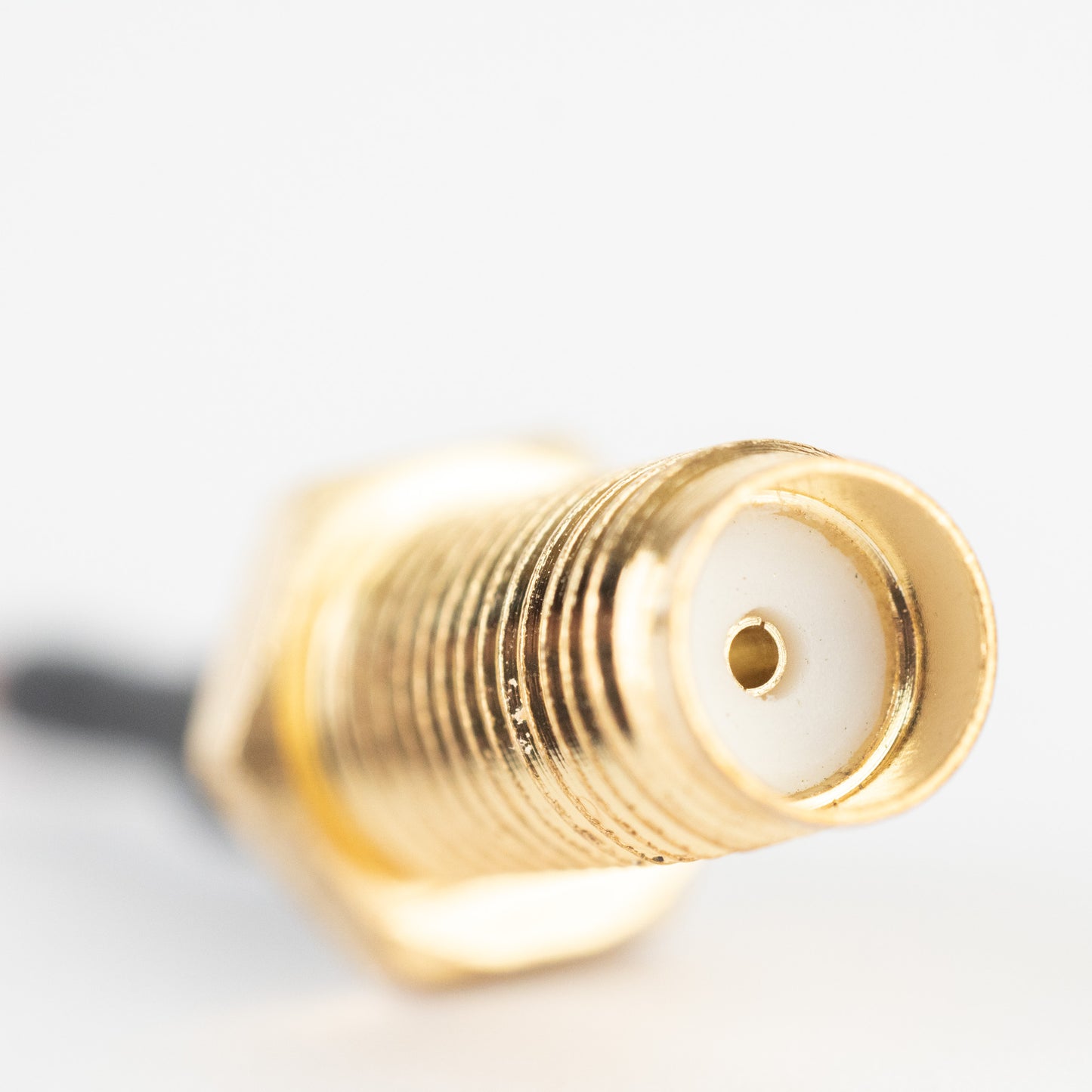

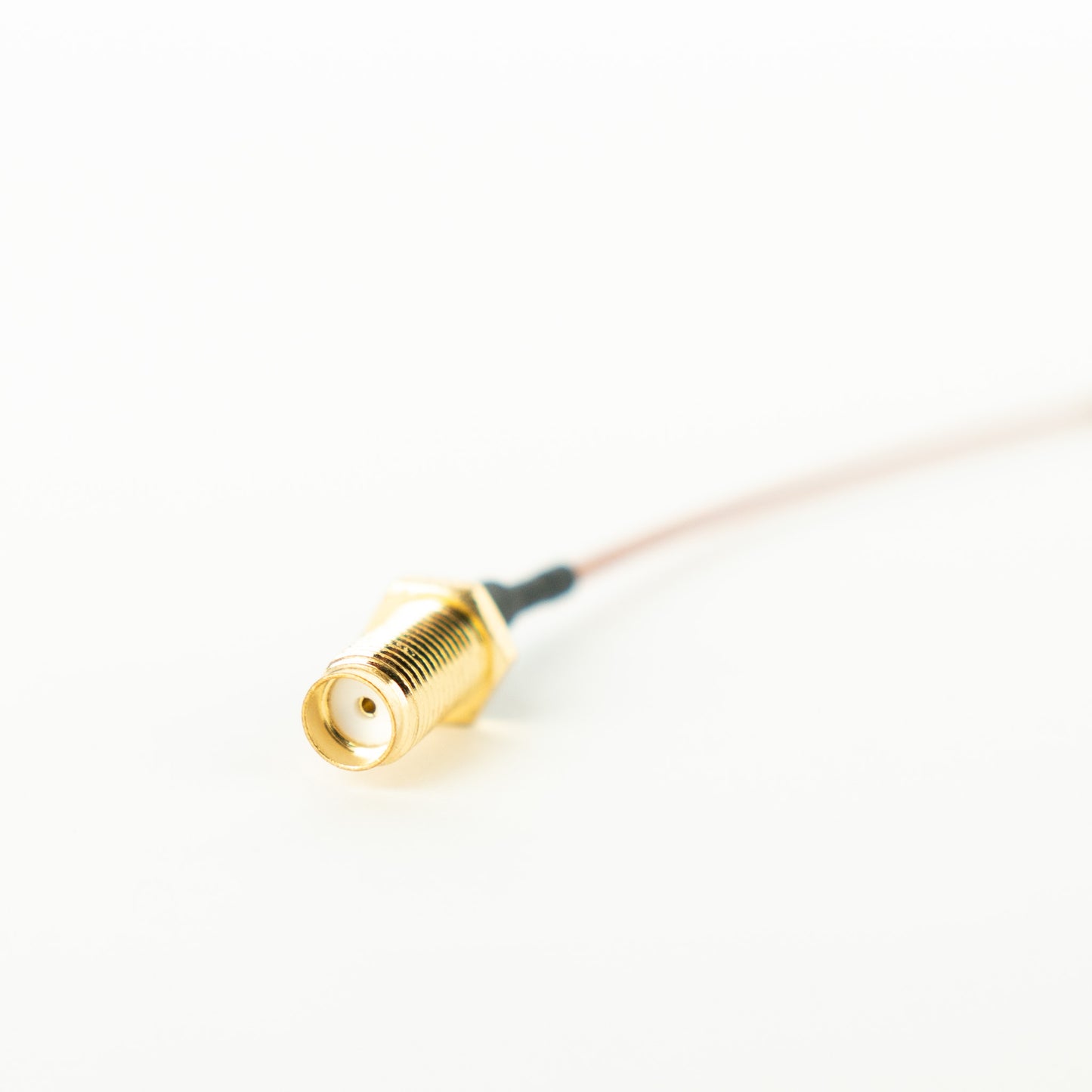

SMA Female includes an 8mm hex base with an external threaded stem and internal hole to accept an SMA-M antenna. Includes a toothed washer, split-ring washer, and nut to mount the connector to a bulkhead. Heat shrink strain relief on cable. This antenna cable is not waterproof.

Lengths: [10cm/15cm]

Includes:

  • (1) Antenna Cable w/(1) IPEX-F and (1) SMA-F connector, [10cm/15cm]
  • (1) Toothed Washer
  • (1) Split-ring lock washer
  • (1) Nut
