Antenna for Meshtastic US915MHz SMA

Antenna for Meshtastic US915MHz SMA

$7.99 USD
$7.99 USD
Sale Sold out
Shipping calculated at checkout.
Cable

BUY ONE, GET ONE 20% OFF. NO LIMIT (Automatic discount applied at checkout)

EACH ANTENNA INCLUDES:

(1) - Antenna for Meshtastic US915MHz SMA-M connector)
(Optional) - Cable (iPEX1-F to SMA-F, 10cm) w/nut, lock washer & tooth washer

Increase your Meshtastic device range by upgrading your antenna. This SMA antenna is compatible with most Meshtastic radios and provides the peace of mind knowing you will have fantastic coverage, no matter where you are. Mount it directly to radios with SMA connectors like the Lilygo T-Beam devices, or use the optional iPEX1-F to SMA-F cable to connect the antenna to a Heltec or Wisblock iPEX connector. An impressive VSWR of less than 1.5, this antenna is optimal for operating Meshtastic devices in the US on the 915 MHz frequency.

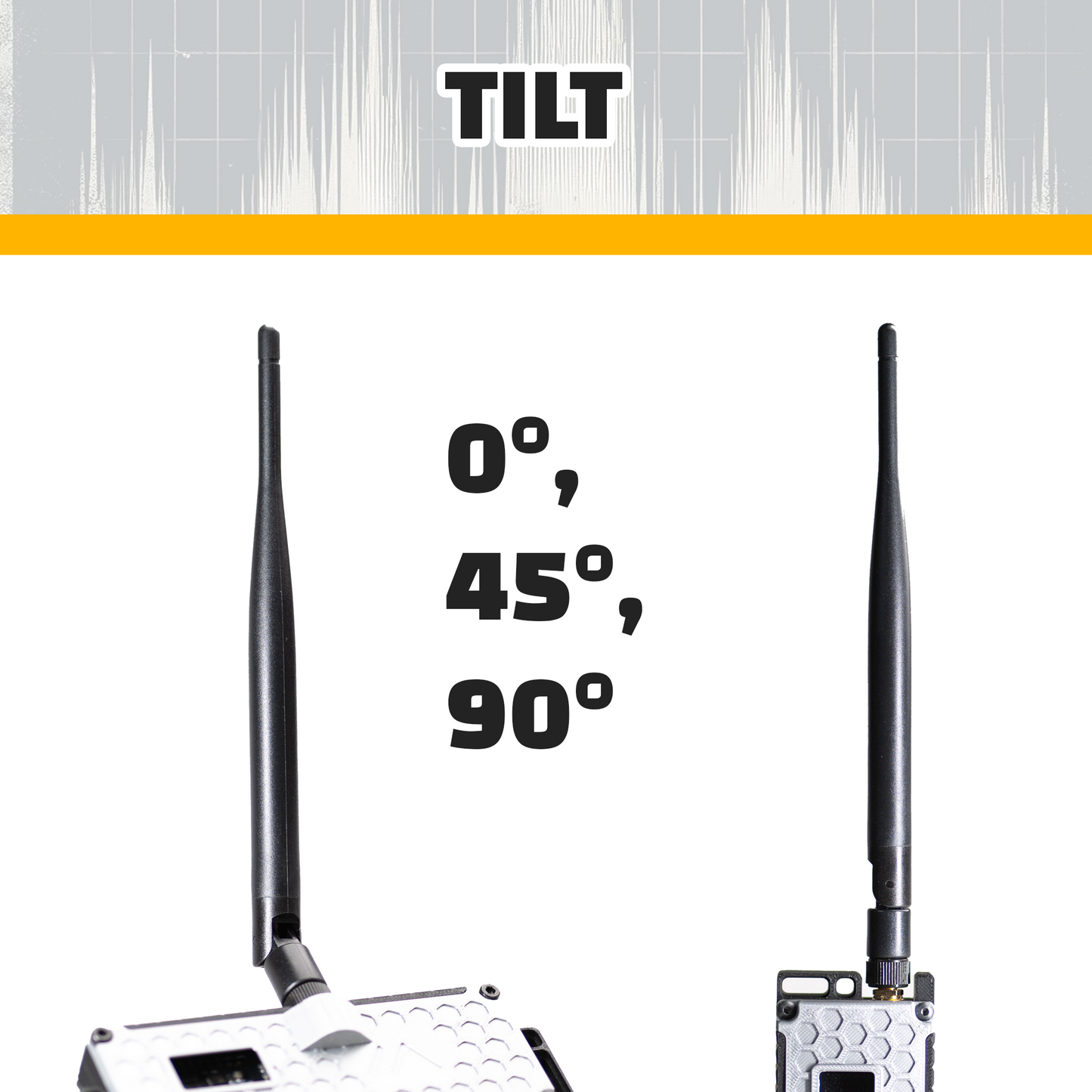

With a full 360° swivel even after tightening, and a 0-90° tilt with positive stops at 0°, 45°, and 90°, this antenna is extremely versatile in mounting and stowing. If you ever accidentally drop your radio, know that the swivel will tilt out of the way, reducing the impact shock on your radio and antenna mount; a huge advantage over rigid antennas.

COMPATIBILITY

  • LilyGo T-Beam
  • Heltec
  • WisBlock
  • Other Meshtastic radios with SMA or iPEX connectors

ANTENNA FEATURES

  • Frequency - 915MHz (United States)
  • Gain - 2.36dBi
  • VSWR - Less than 1.5
  • Efficiency - 75%
  • Connector - SMA (Male pin)
  • Swivel - Antenna can spin 360° around base even after tightening
  • Tilt Angle - 0 to 90° tilt with positive stops at 0°, 45°, and 90°
  • Internal Cable - RG-178, 50ohm
  • Antenna Cover - TPEE
  • Antenna Base - PC+ PBT
  • Color - Black
  • ROHS Compliant - product does not exceed the maximum allowed concentrations of restricted substances

OPTIONAL CABLE FEATURES

  • SMA Female - Connects to included antenna
  • iPEX1 Female - Connects to Wisblock®, Heltec®, and other Meshtastic® devices.
  • Cable - RG178, 10CM long
  • Flat Side - SMA threads have one flat edge that can be used to prevent SMA connector from spinning in mounting hole
  • Hex Base - SMA threads have 8mm hex base which can also be recessed into a captured hole to prevent spinning



View full details

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
W
Walter Hooper
Perfectly tuned

Unlike most of the Amazon and Aliexpress antennas you can find this is actually proprietary tuned! VSWR tested at 1.25 at 908mhz both straight and folder. This is perfect because the default longfast channel is a 907mhz.

User picture User picture
A
Anonymous
Seems good

Nice build quality, much better than the basic antenna. Rotates easily but not on its own, it will stay up in position that you left it. Bends with indents holding it at 0, 45 and 90 degrees. Haven’t been able to do any performance testing but am hitting all the nodes I previously did with a stock lilygo t-echo antenna. Worth the upgrade

D
David Spence
915 Antenna

Works great.

D
David Walden
Great³

Great products, Great service, Great company!!!

What more can I say, I very pleased the the M1 Meshastic node i purchased from AlraVox & the antennas I bought to upgrade some nodes I already had.

K
Kevin Trotman
Love This Antenna

The base of this antenna is a little bit too big for some cases, so be aware of that when considering it. For those who don't have that issue, this is a great price for an antenna capable of articulating 90 degrees. It also has a good SWR characteristic for the frequency it is tuned for, so a great choice!
