RJ45 Bulkhead Waterproof Cable 20CM

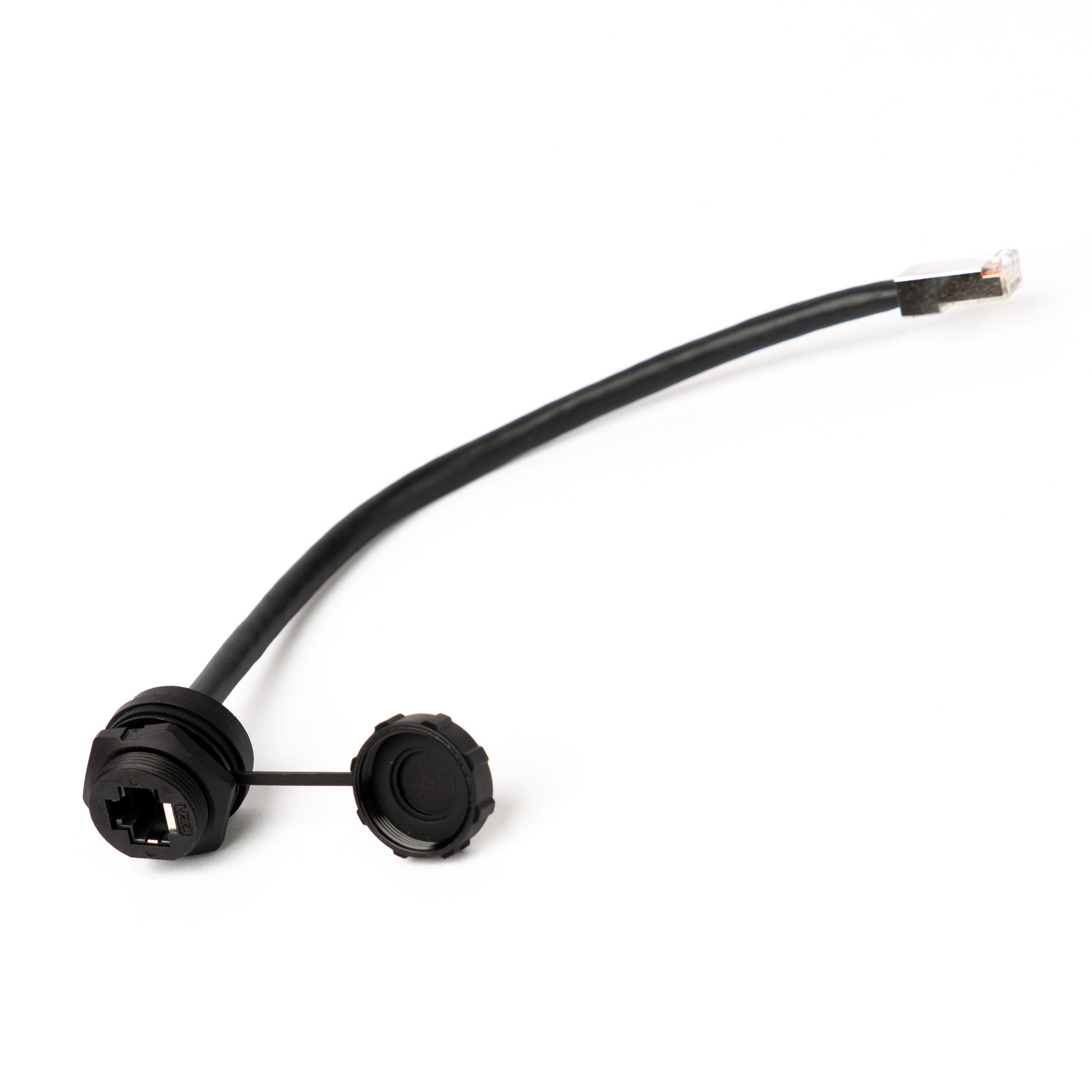

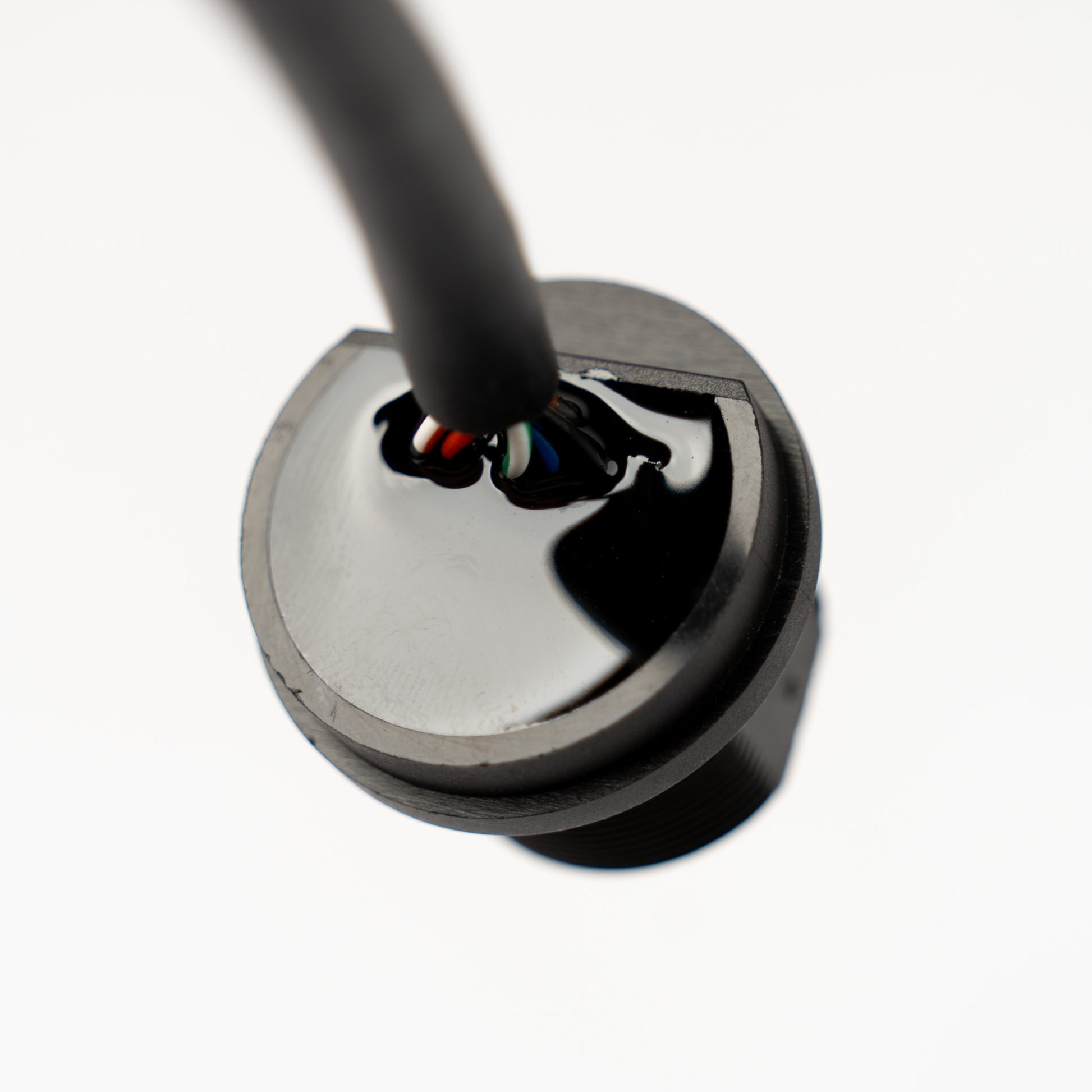

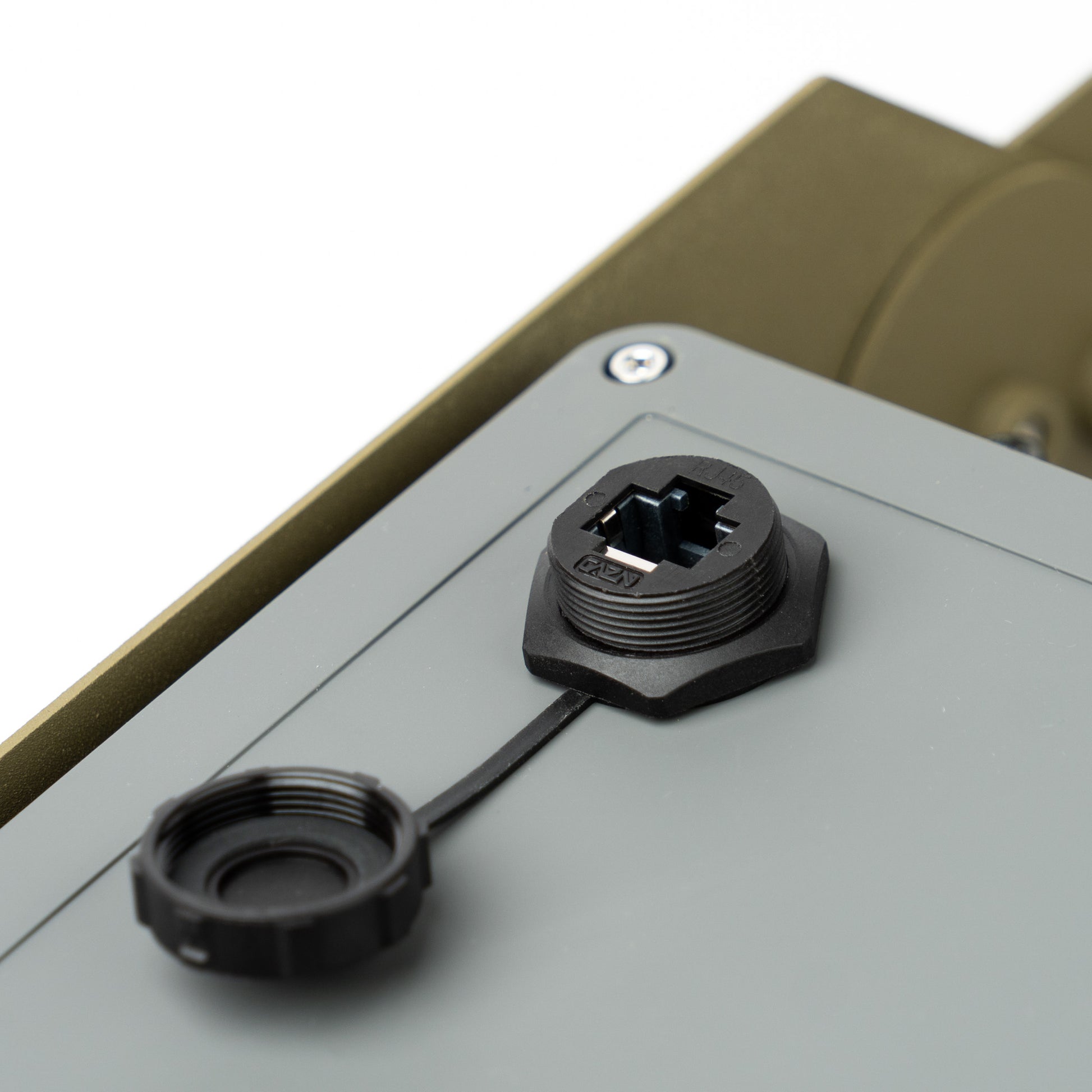

An IP67 panel-mount RJ45 bulkhead connector with a 20cm CAT6 pigtail: the clean way to get ethernet into a weatherproof enclosure. The threaded receptacle mounts through a 13/16" hole and seals against the panel with an included gasket. Inside, a 200mm CAT6 cable with a standard RJ45 plug connects straight to your gateway, router, or Ethernet module. This is a must-have component if you're building a Meshtastic gateway with something like a RAK13800 Ethernet module or Raspberry Pi, or another POE node.

Key Benefits

• 🛡️ Sealed Enclosure Entry. IP67-rated when locked, with a waterproof gasket to seal to your enclosure and a threaded gasketed cap when not in use.

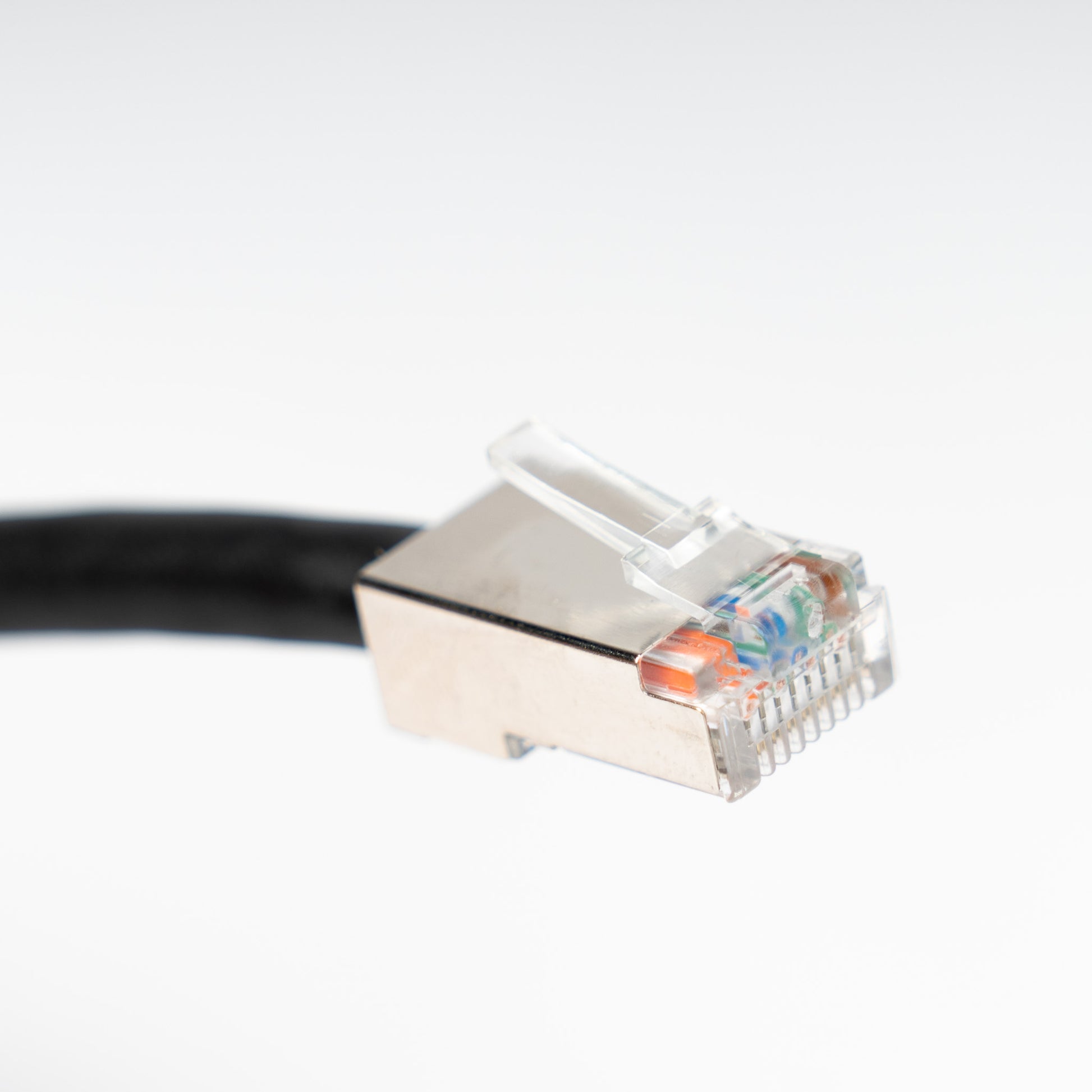

• ⚙️ Tool-Free Hookup Inside. The internal 20cm pigtail ends in a standard RJ45 plug. Plug it into your board and close the lid. No re-terminating, no punch-downs, no additional cables needed.
• 📡 Built for Outdoor Duty. Threaded coupling, -25°C to +80°C operating range, and a rugged TPU-jacketed CAT6 cable. It's a stiff cable, but durable enough to handle tight bends to make the connection.

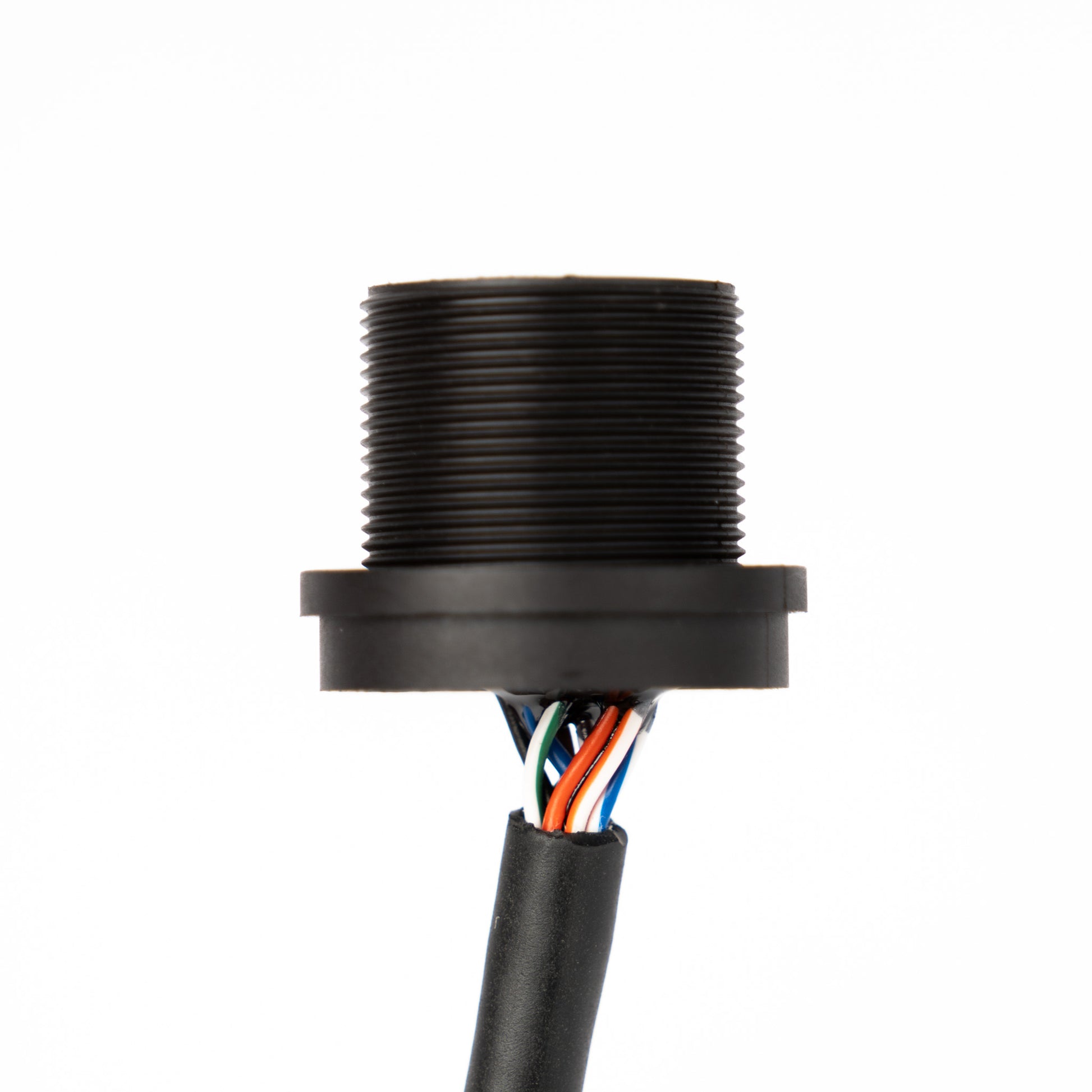

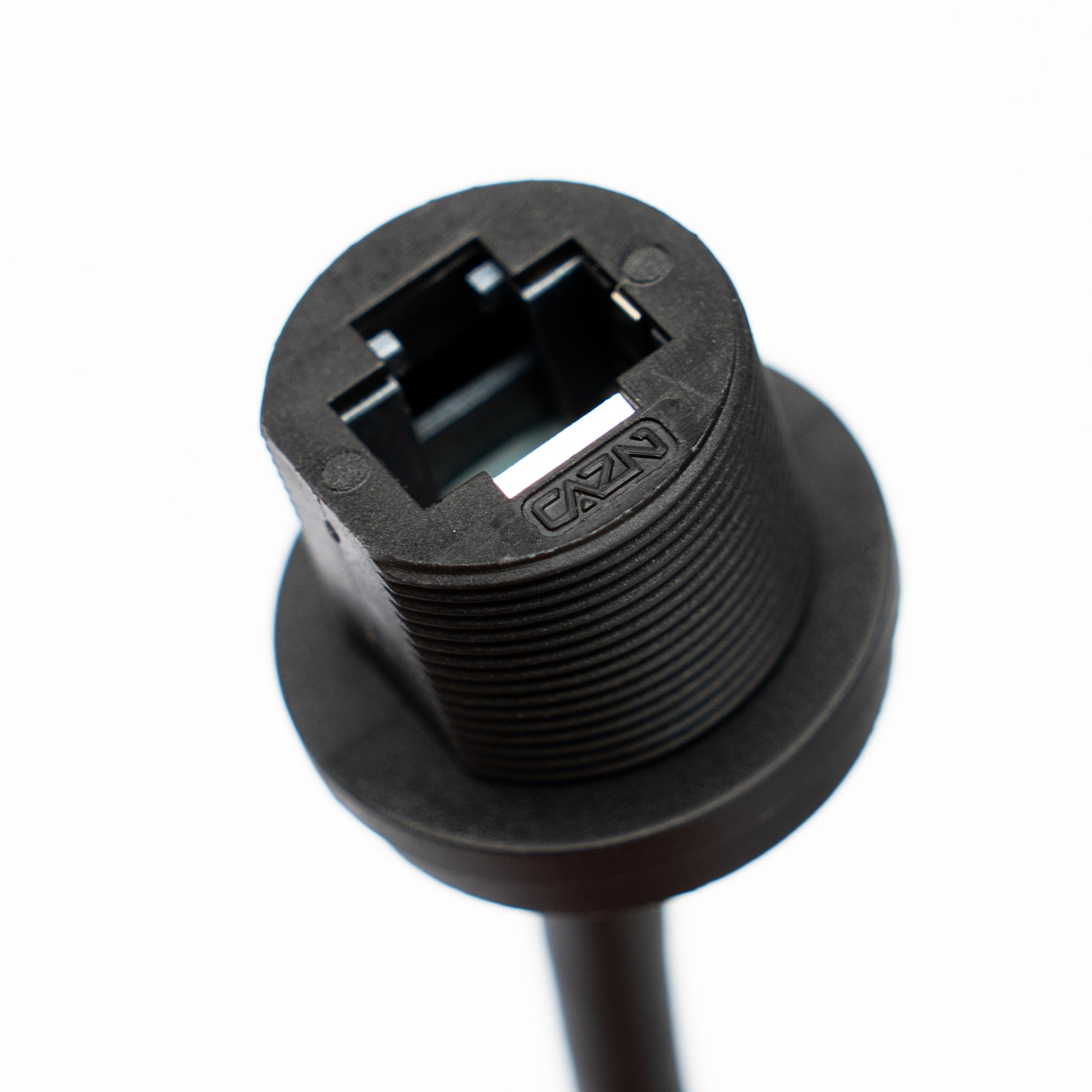

The outside face is an RJ45 receptacle (female jack) with 13/16"-28UNS threading. It reaches its full IP67 seal when a mating locking connector or the included dust cover is installed. A standard unsealed patch cable plugged into the front will pass data but won't keep water out of the jack itself.

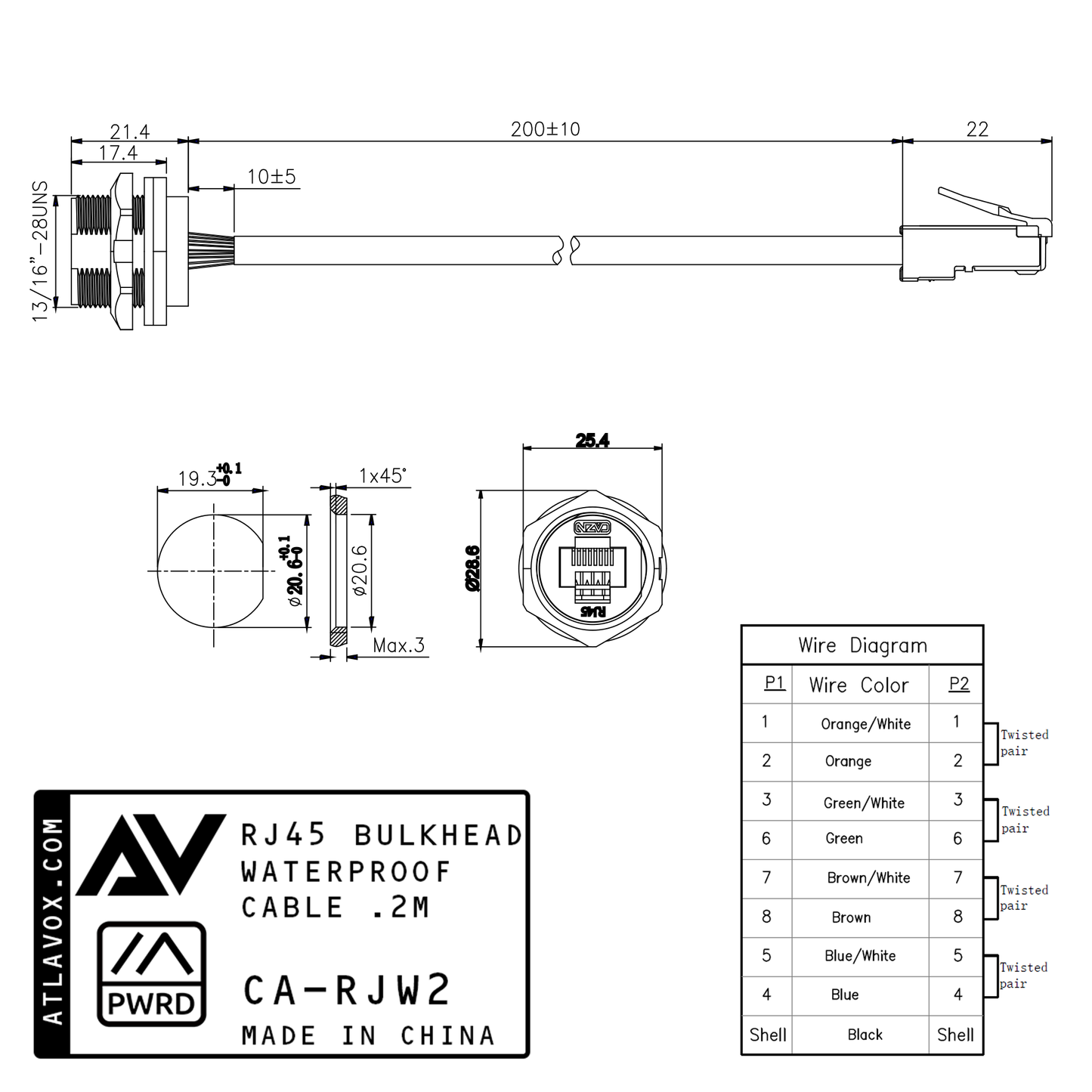

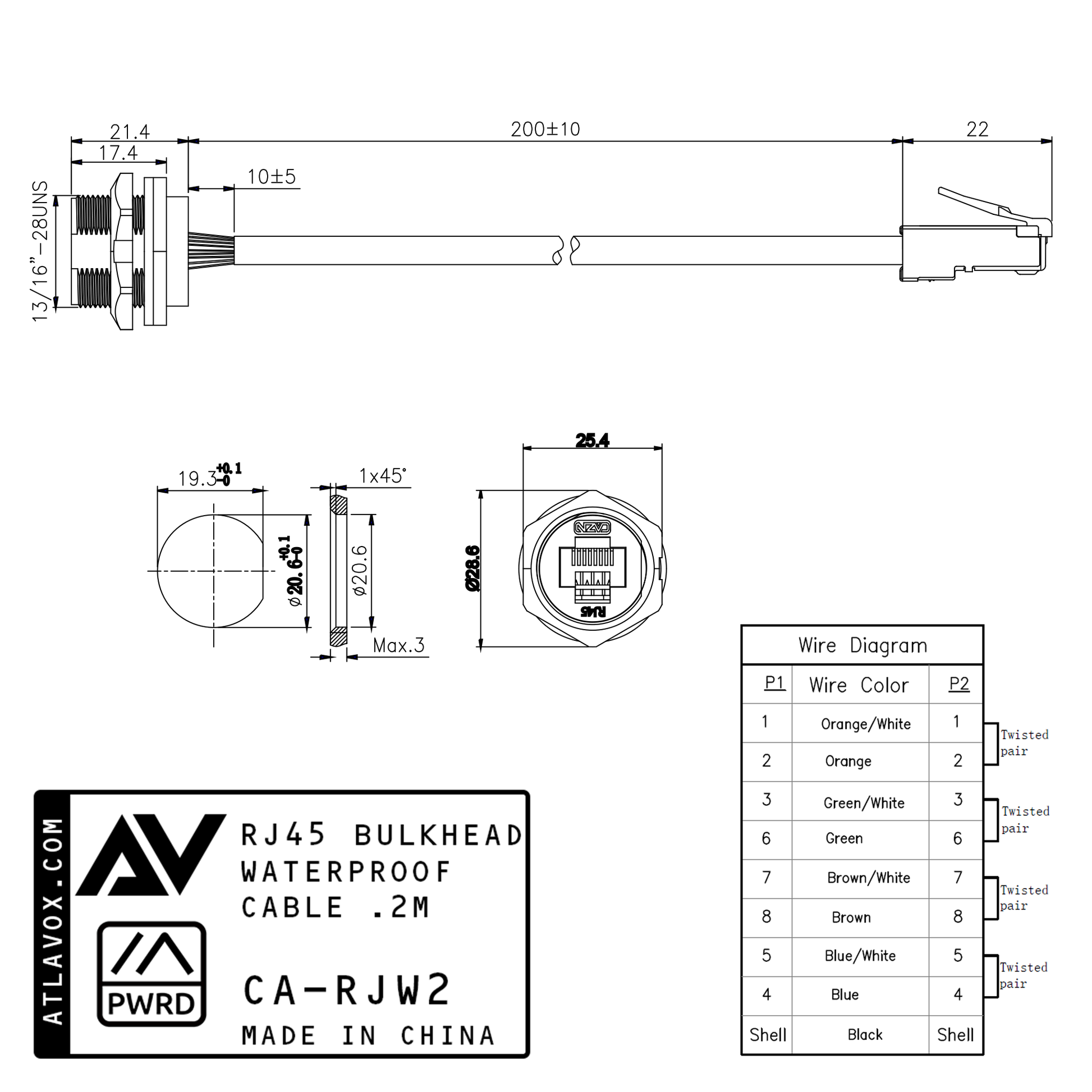

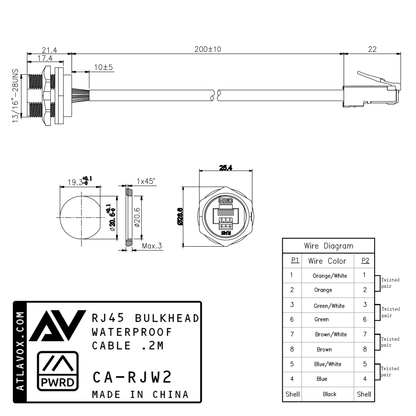

Specifications

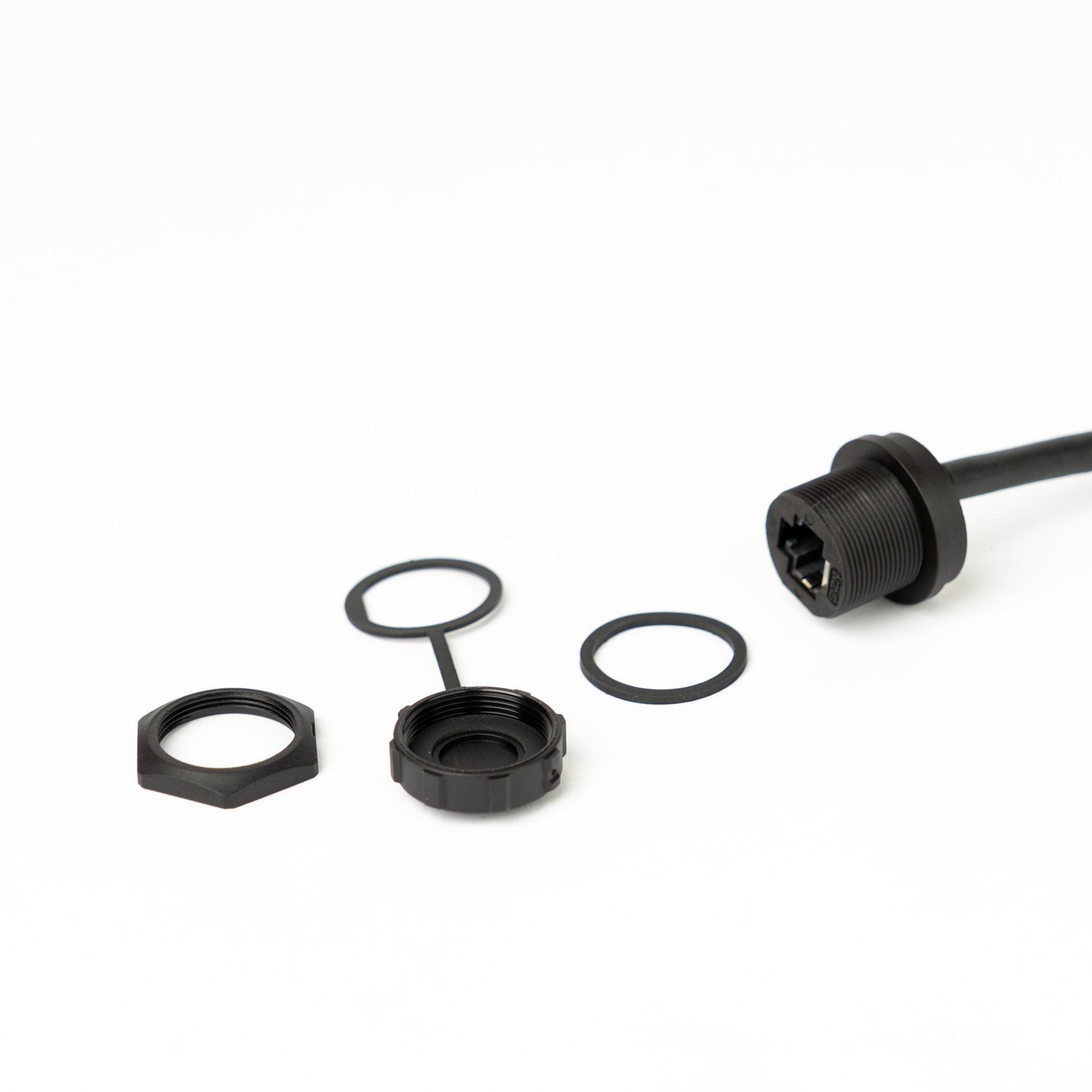

What's Included

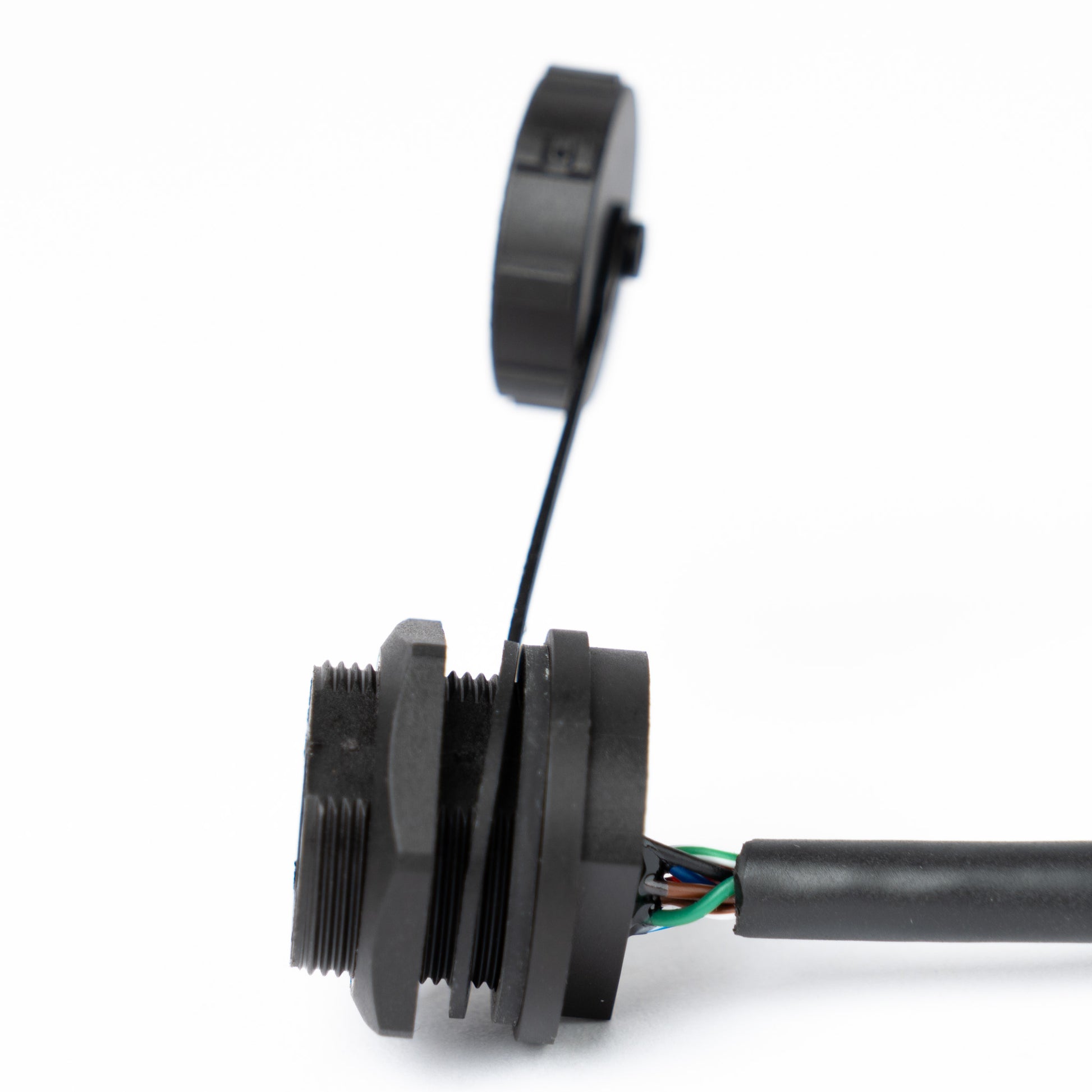

• Panel-mount RJ45 female bulkhead with 200mm CAT6 pigtail male connector
• Rubber o-ring gasket
• Hex mounting nut (13/16"-28UNS)

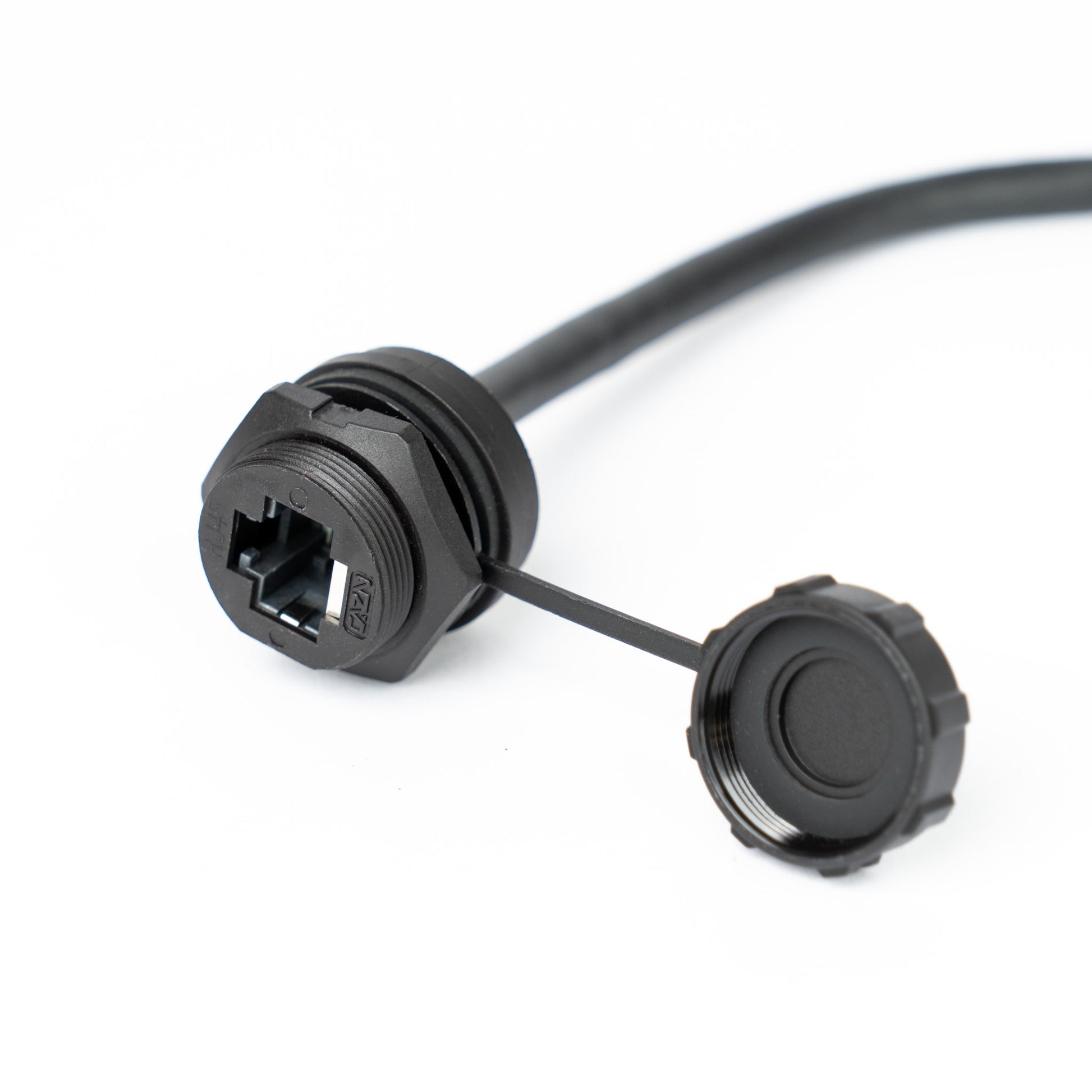

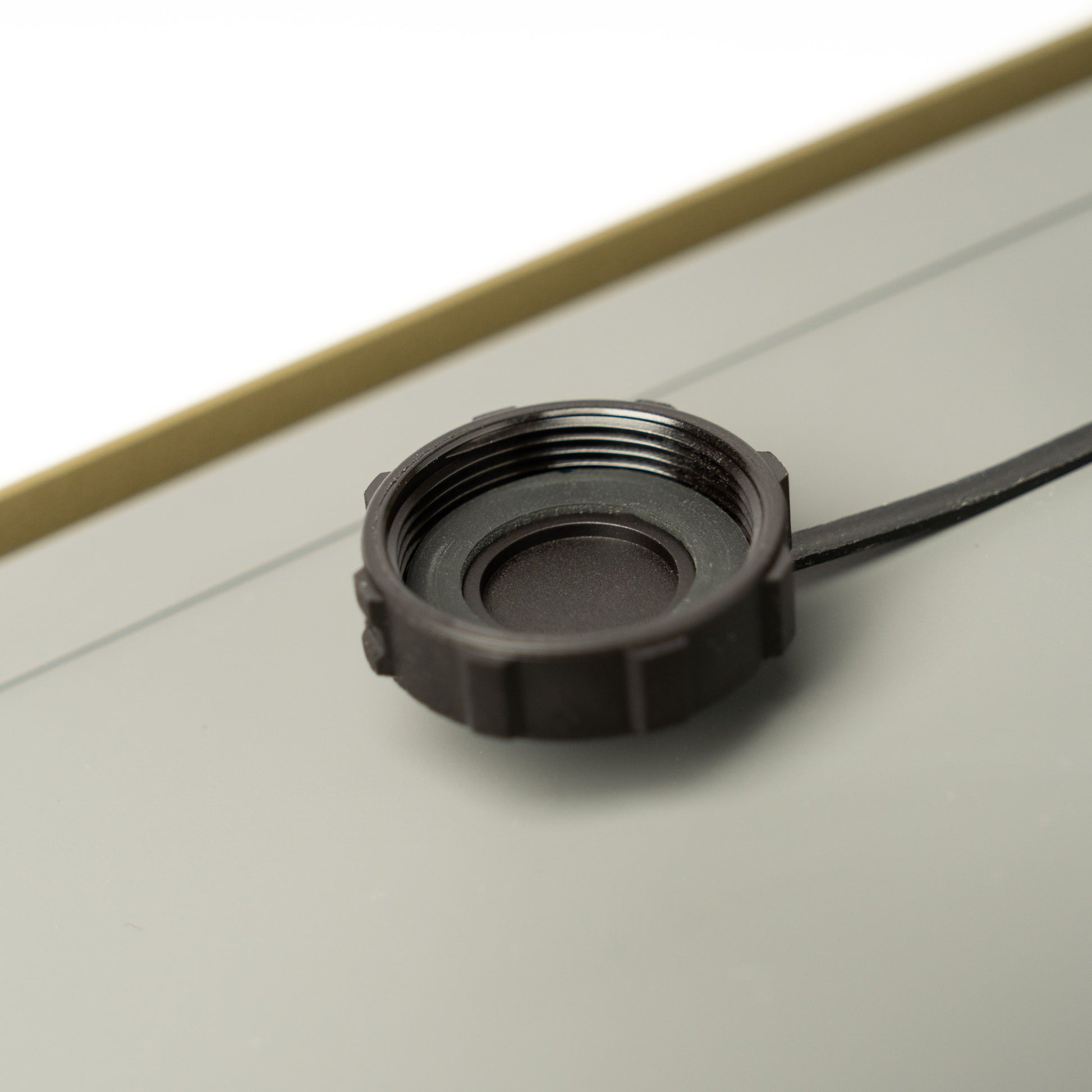

• Threaded cap with integral o-ring and tether


Compatibility

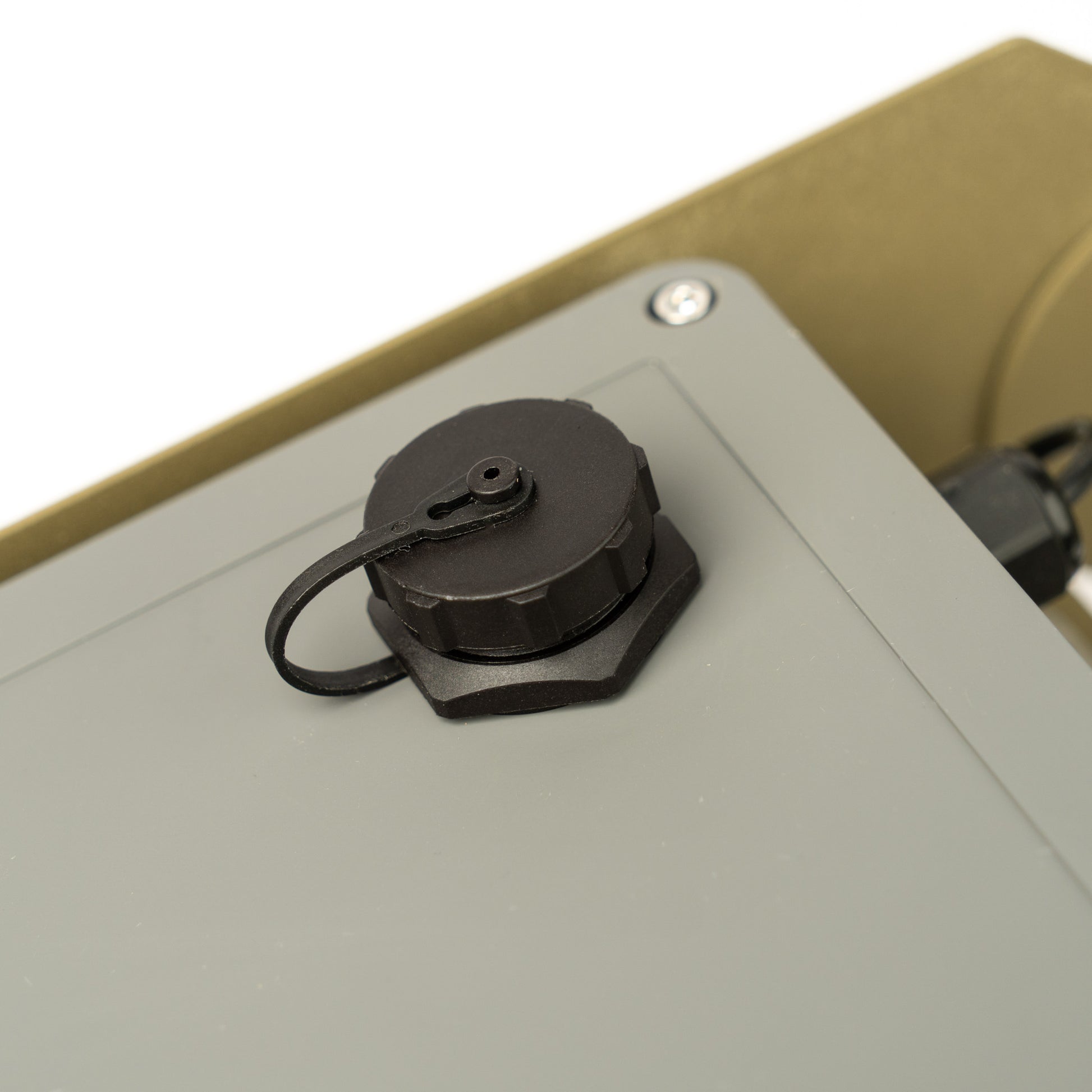

• Drops into any enclosure wall up to 3mm thick: drill a 20.6mm (13/16") hole, seat the gasket, tighten the nut
• Works with Ethernet-connected Meshtastic™ gateway builds. The internal pigtail plugs directly into modules like the RAK13800 Ethernet module

• Standard RJ45 on both ends, no proprietary connectors, no special tooling
