Easily connect USB-C 3.1 to your Meshtastic™ or MeshCore™ radio without opening your enclosure. This waterproof USB-C bulkhead connector lets you mount a secure, watertight USB-C port to any project box or case. Just drill a hole, insert the connector, and tighten it down.
Perfect for charging batteries, flashing firmware, or establishing a serial connection to your LoRa radio while keeping your enclosure sealed from the elements. When not in use, the USB-C port is protected by the included threaded cap with its own waterproof gasket.
The thin ribbon cable is extremely flexible, allowing you to route it wherever it needs to go. The USB-C male end fits into tight spaces where standard cables with bulky plastic connectors won't. Available in 10CM and 20CM. We use the 10CM length in the Atlavox Beacon.
This cable is compatible with our outdoor USB cables.

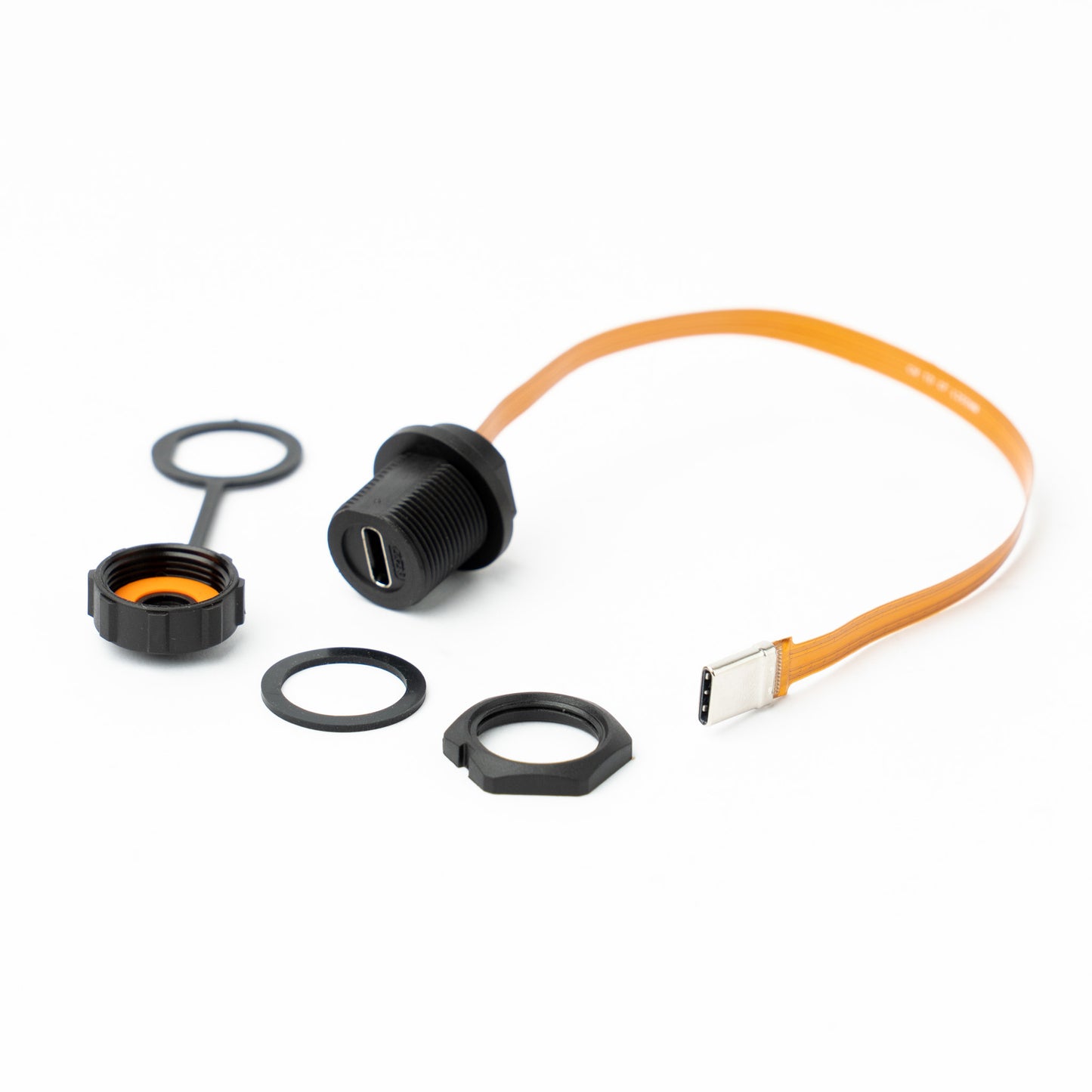

Includes
- Panel-mount USB-C extension cable
- Silicone O-ring for waterproof seal
- Waterproof cap with retention tether
- Mounting nut
Specifications
| Cable Length |
100mm or 200mm |
| Panel USB Type |
USB-C Female |
| Cable USB Type |
USB-C Male |
| USB Speed |
USB 3.1 |
| Waterproof Rating |
IP67 |
| Hole Size |
5/8" (15.8mm) |
| Weight |
10 grams |
