RAK GNSS GPS WisBlock Module RAK12500

Introducing the RAK12500 GNSS GPS Location Module for WisBlock Meshtastic-enabled devices, including the Atlavox M1 radio. Designed to effortlessly integrate with the RAK WisBlock ecosystem, this module snaps right onto your WisBlock Base unit, (like the WisBlock RAK19007 Meshtastic starter kit) to provide accurate, reliable location and timing data. Whether you’re tracking your gear off-grid, pinpointing the position of your mobile stations, or simply enhancing the synchronization of your mesh network, the RAK12500 delivers plug-and-play compatibility with WisBlock and Meshtastic.

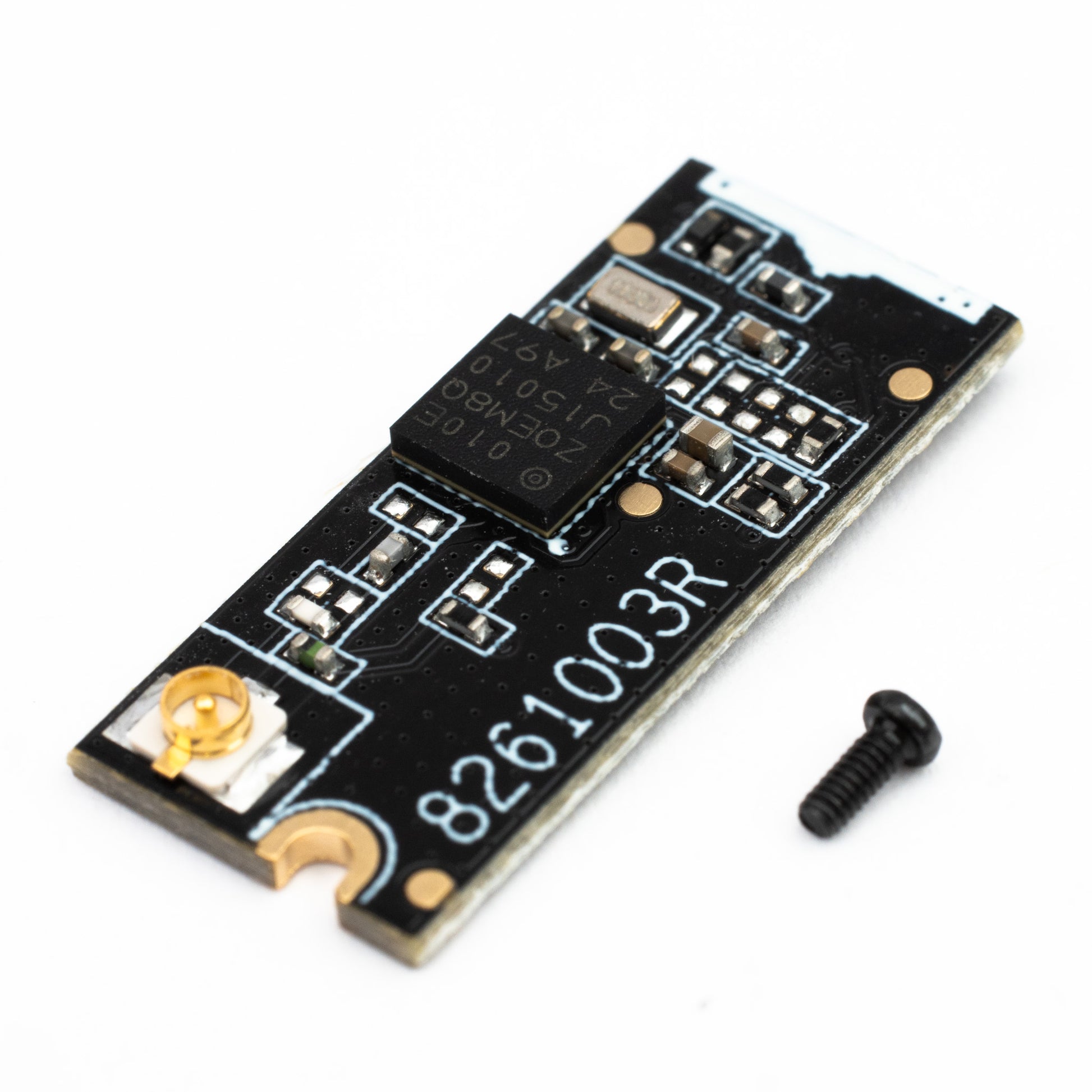

At its heart, the RAK12500 utilizes the cutting-edge u-blox ZOE-M8Q GNSS chipset, supporting GPS (USA), GLONASS (Russian), QZSS (Japanese), and BeiDou (China), which are global constellations managed by different countries. This wide-ranging compatibility provides redundancy and means you can lock onto more satellites quickly, maintain solid location accuracy of ±2.5 meters, and achieve fast hot starts—ideal for when your Meshtastic devices are in motion or deployed in remote, challenging environments.

With multiple communication options (Serial and I2C) for seamless integration and low operating current, the RAK12500 is a powerful yet power-efficient addition to your Meshtastic node.

Key Features:

• Meshtastic-Ready Integration: Effortlessly add precise location data to your Meshtastic devices for accurate asset tracking, navigation, time keeping, and network diagnostics.
• Multi-Constellation Support: GPS, GLONASS, QZSS, and BeiDou ensure robust global coverage, redundancy, and quick satellite locks.
• High Accuracy & Sensitivity: Achieve ±2.5 meter location accuracy with rapid updates—up to 10 Hz—for critical operations. (The public Meshtastic channel limits precision for privacy, but private channels can use high precision.)
• Low Power Draw: Under 15 µA ensures minimal impact on battery life, keeping your WisBlock Meshtastic nodes running longer.
• Fast Cold & Hot Starts: 29 seconds from cold start and 1 second from hot start means less downtime when powering up in the field.

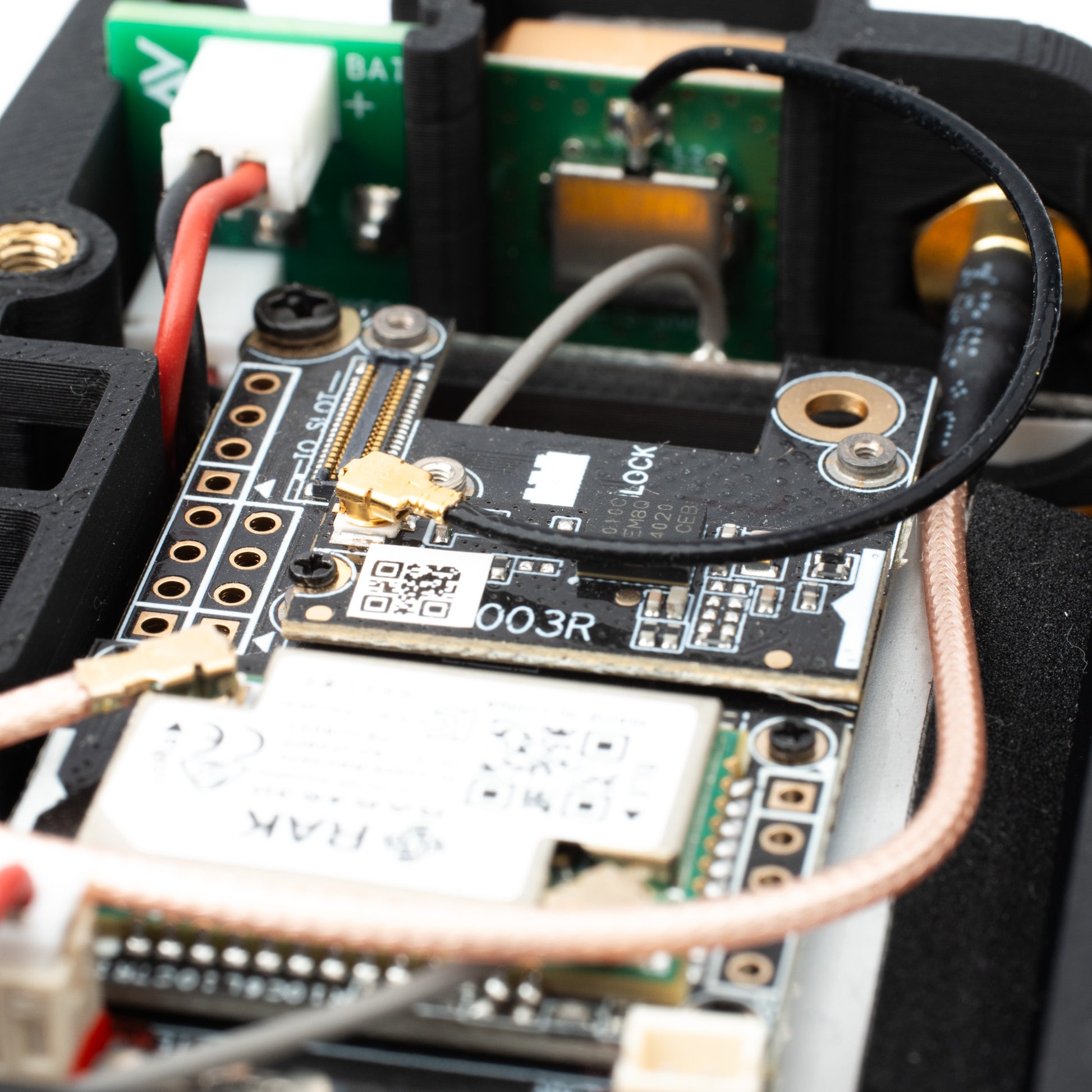

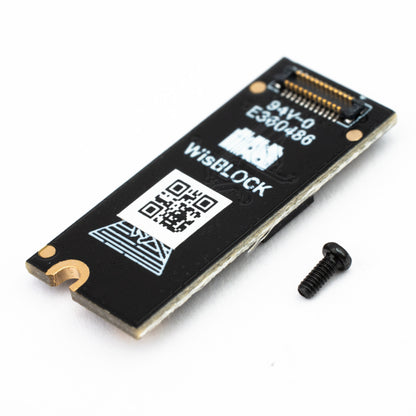

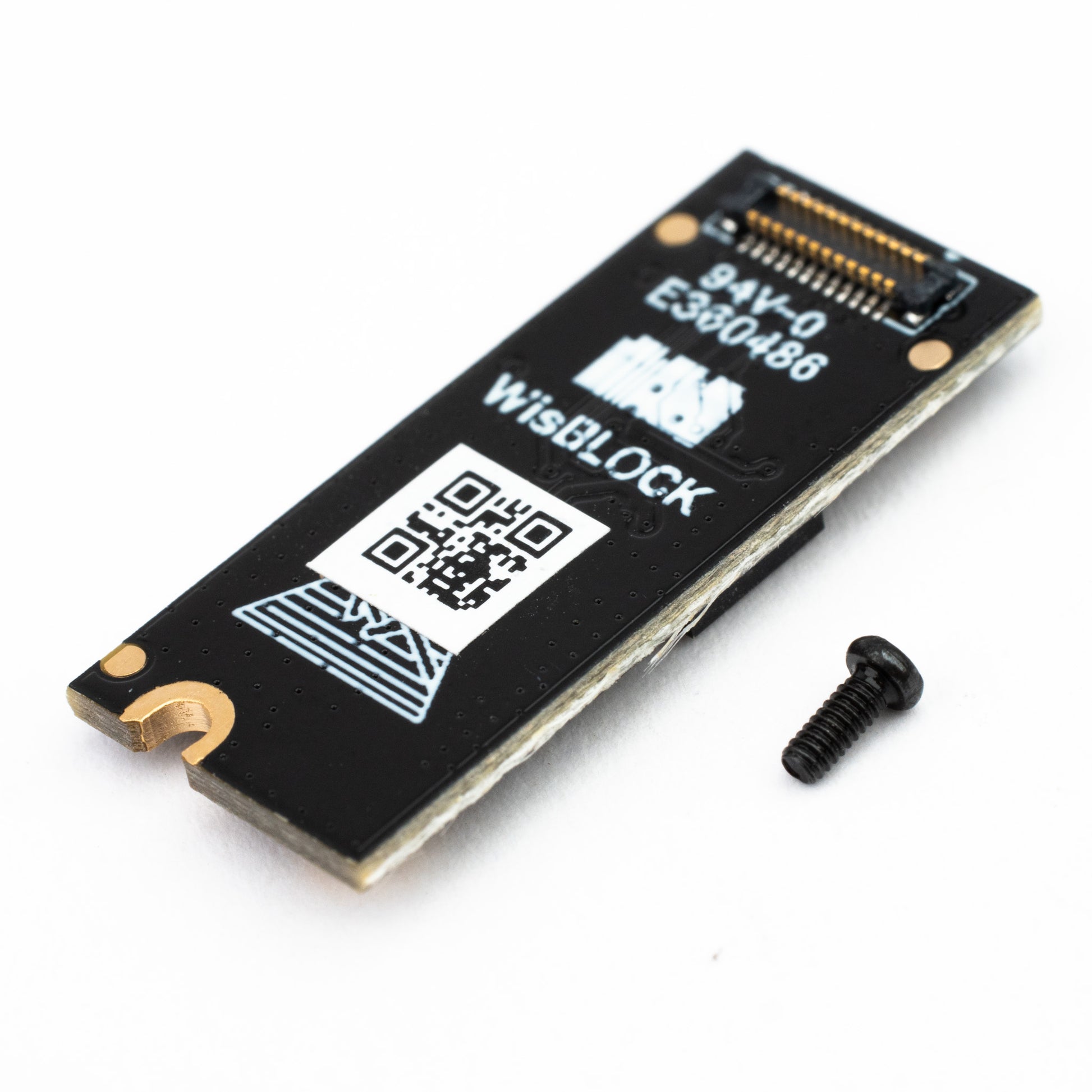

• Compact Form Factor: At just 10 mm x 23 mm, the RAK12500 fits easily into your existing WisBlock builds. It snaps right onto the WisBlock Baseboard and is held in place with a single screw. The Atlavox M1 radio is fully compatible.

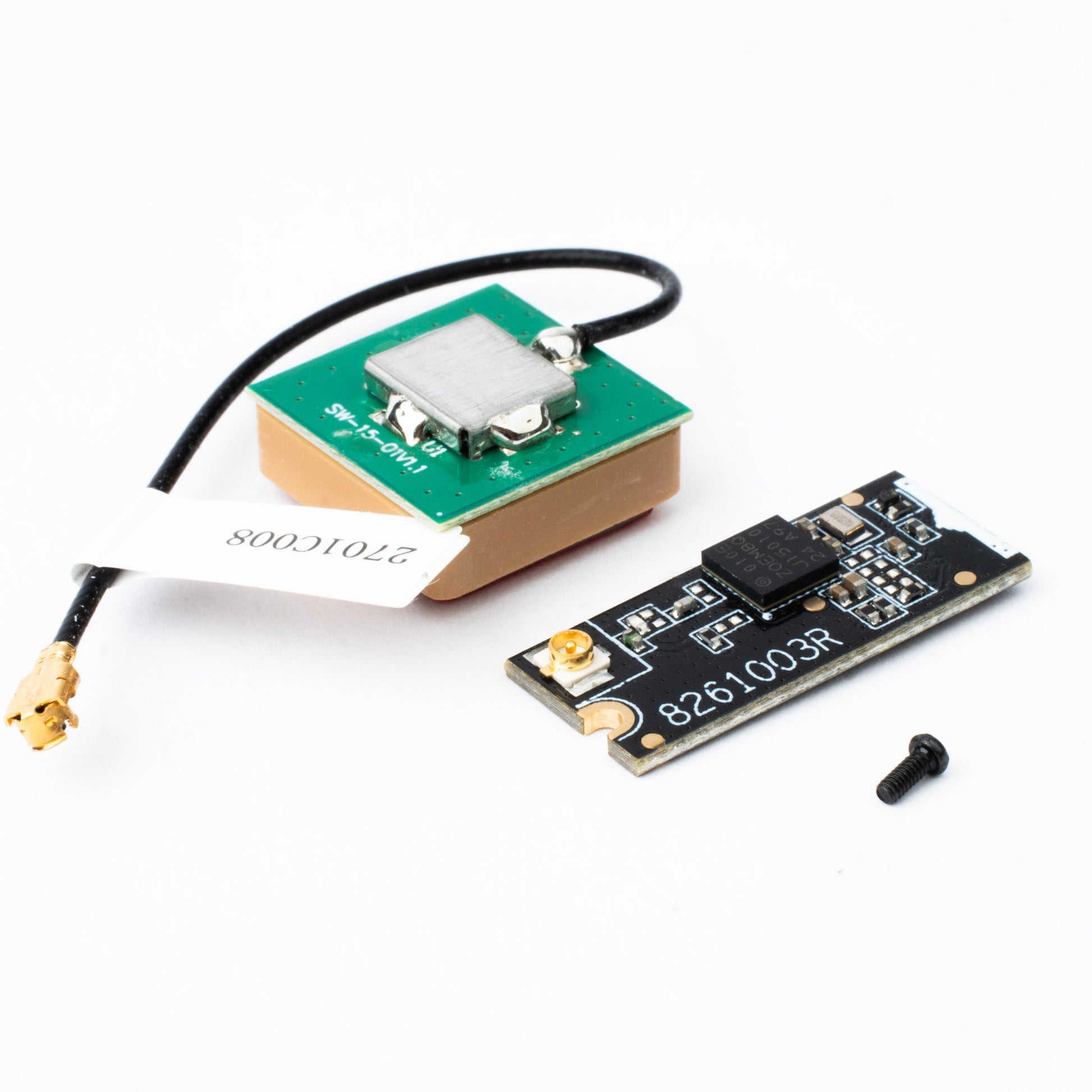

• Antenna included: Compact GPS antenna is included. The Atlavox M1 radio includes a slot inside the case to hold the antenna securely.

Elevate your Meshtastic deployments with pinpoint location awareness—add the RAK12500 GNSS Location Module to your setup today.
