RJ45 Industrial Outdoor Cable - IP67 Threaded Waterproof Connector
RJ45 Industrial Outdoor Cable - IP67 Threaded Waterproof Connector
Notify me when back in stock
We'll only use your email for this notification.
Couldn't load pickup availability

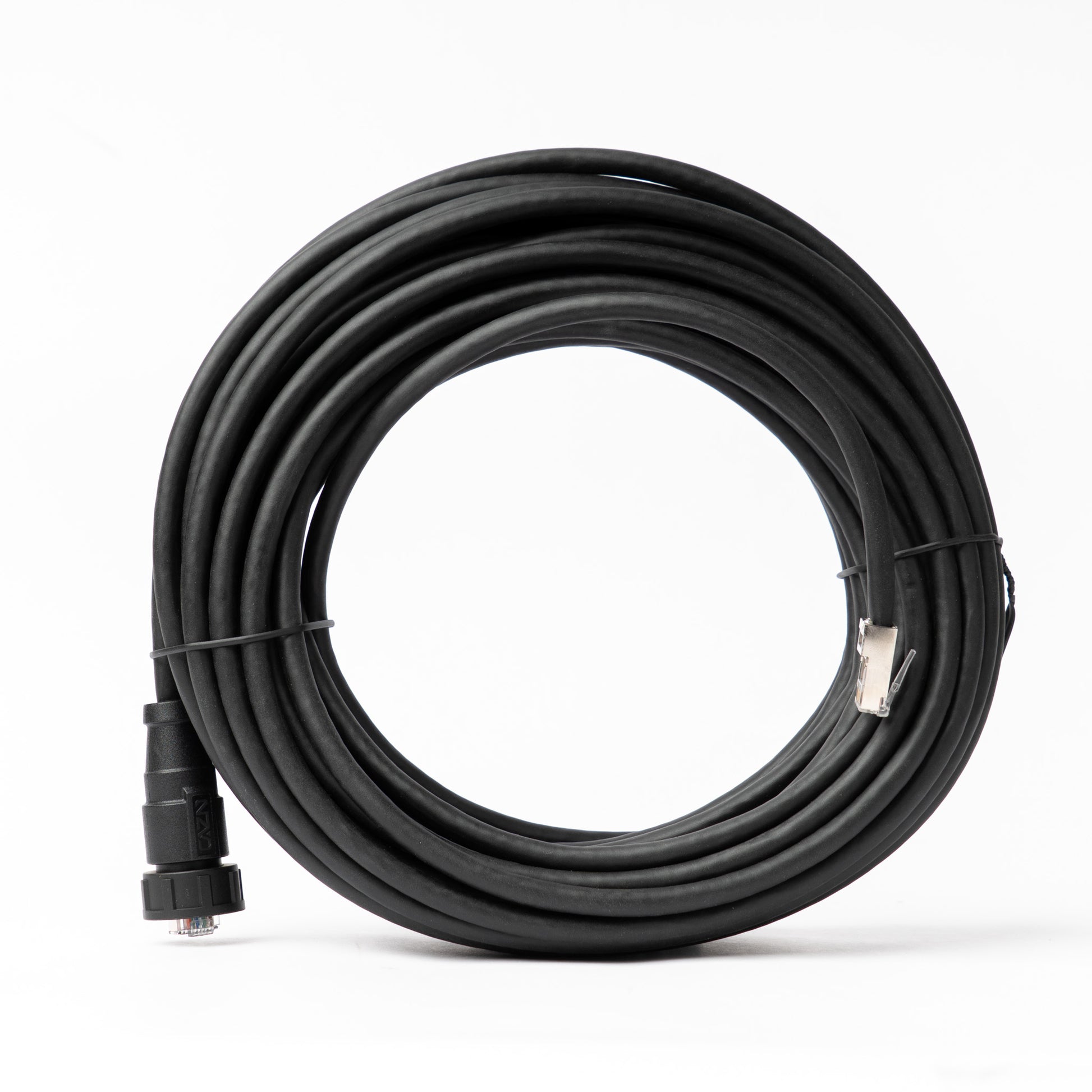

A fully sealed, molded outdoor Ethernet cable built to industrial standards for harsh outdoor environments. One end is a threaded IP67 connector that locks onto a matching panel-mount bulkhead on your enclosure; the other is a standard shielded RJ45 plug that runs to your switch, device, or service panel inside. Create a durable connection to your outdoor Meshtastic or MeshCore network-enabled equipment. Perfect for POE nodes.
Built to Survive Outside
- 🛡️ TPU Jacket, Not PVC Thermoplastic polyurethane shrugs off UV, abrasion, and oil and stays flexible from -25°C to +80°C. Cheap PVC cracks and stiff burial cable fights you on every bend.
- ⚙️ Molded, Not Crimped The connector is over-molded to the cable, not field-crimped or pinched in a gland. The usual outdoor failure point (water creeping in at the connector) is sealed at the factory.
- 📡 Fully Shielded SFTP construction with foil, braid, and a shell-to-shell shield bond keeps your link clean.
The Connection System

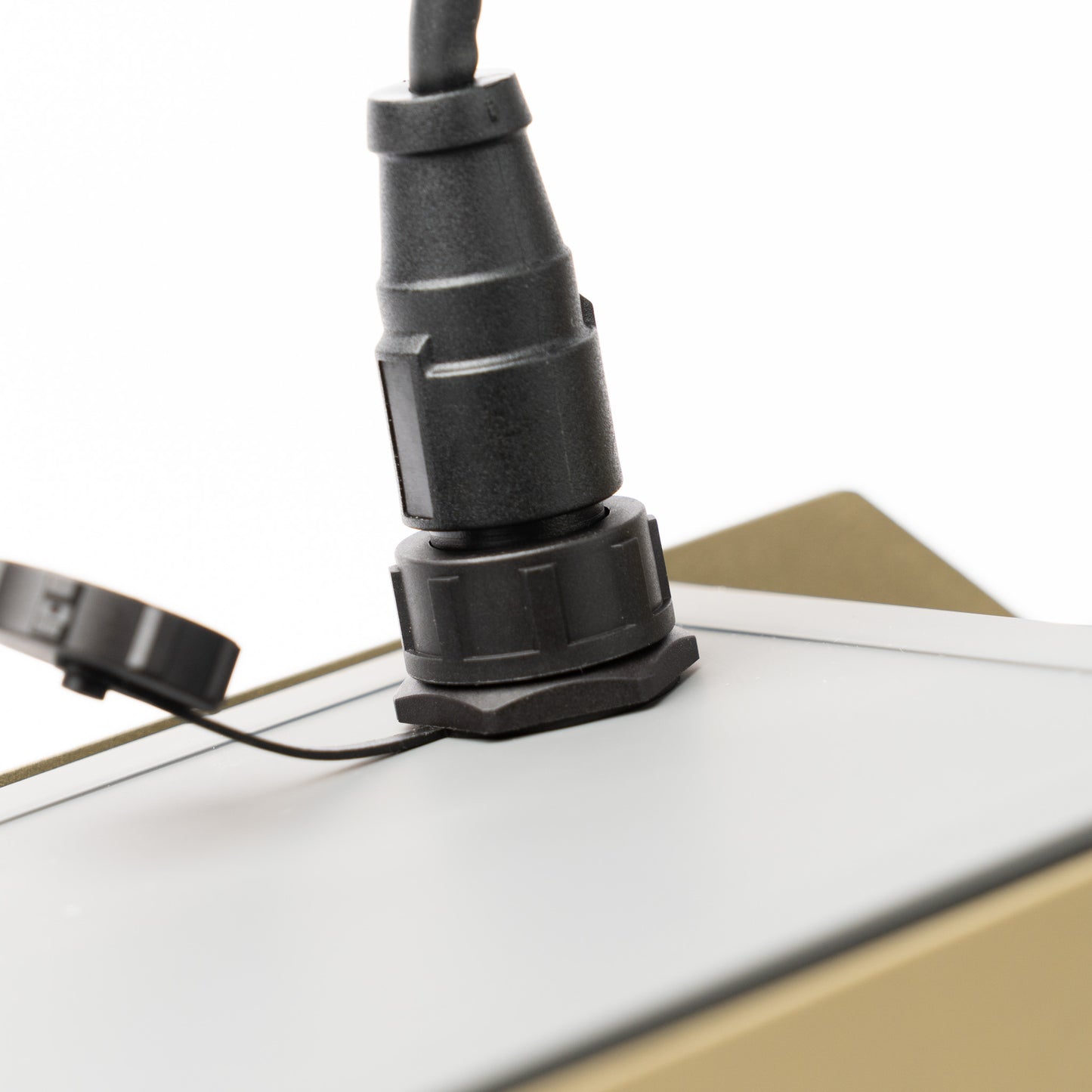

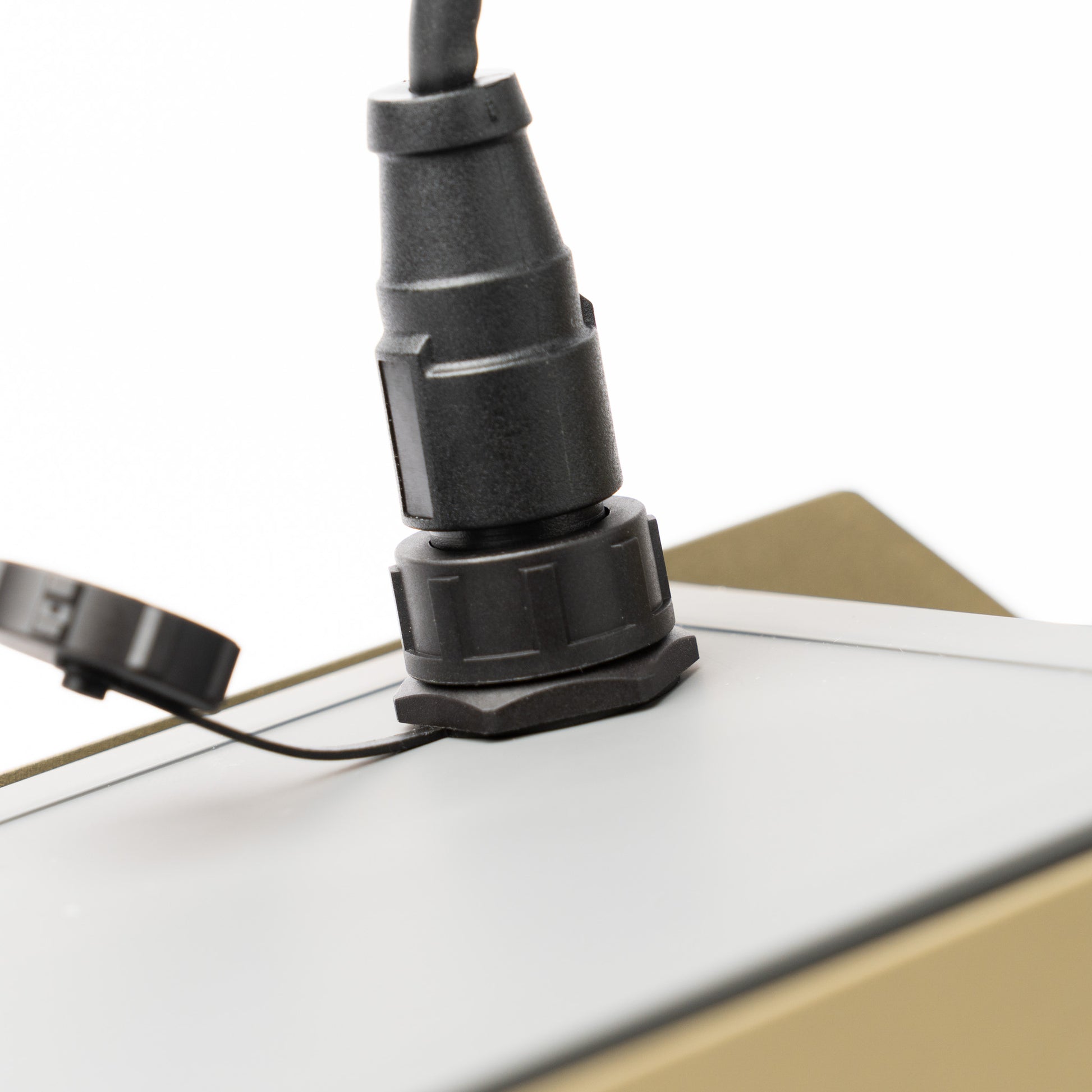

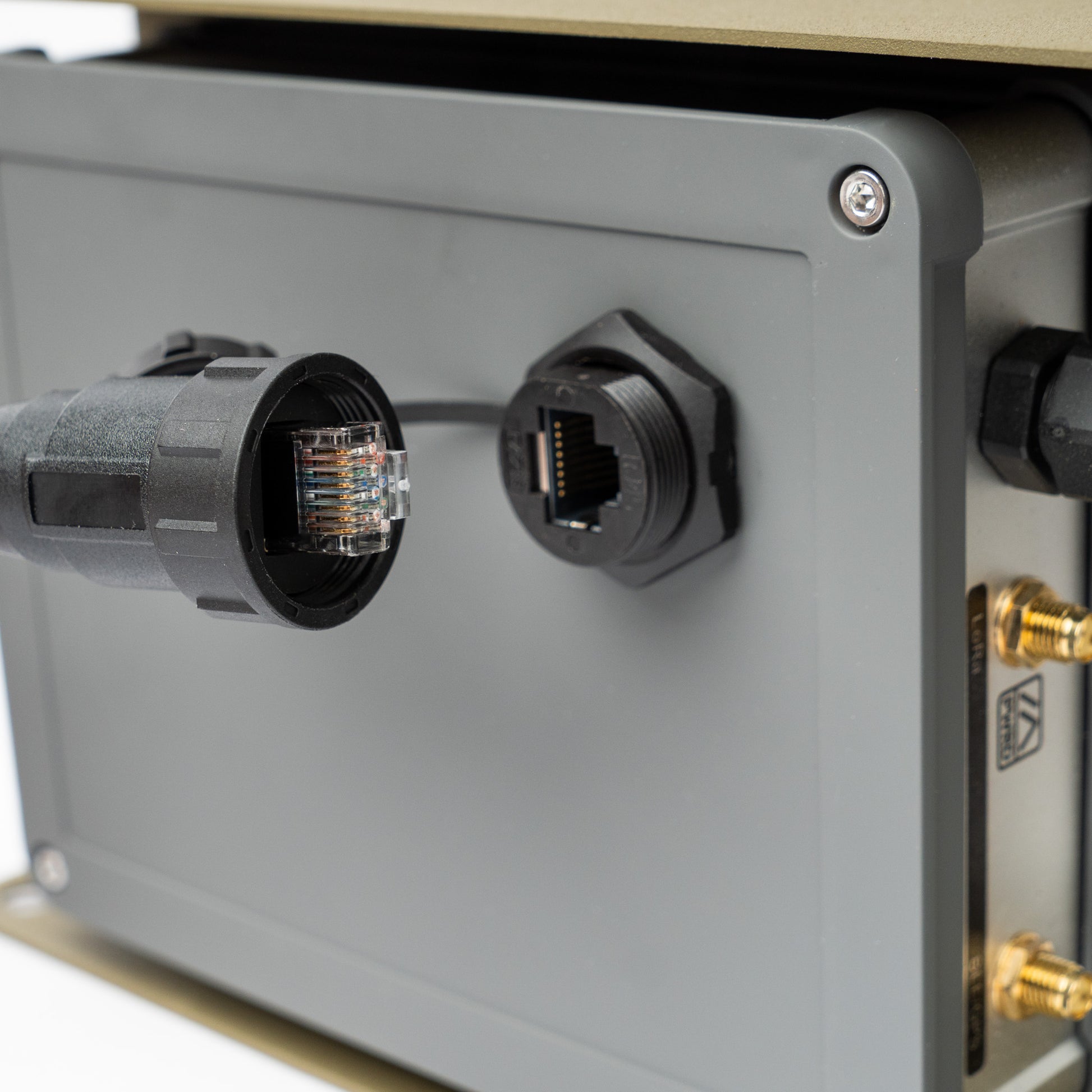

This cable is half of a two-piece system. The RJ45 Bulkhead cable mounts permanently through your enclosure wall and seals it to IP67. This cable's threaded connector torques down onto that bulkhead with a silicone gasket for a tool-free weatherproof lock.
The result is a clean, serviceable connection: the enclosure stays sealed and untouched, the link disconnects in seconds without opening anything, and there's no oversized hole stuffed with a gland clamping a bare cable. It's the difference between a connector system and a workaround.

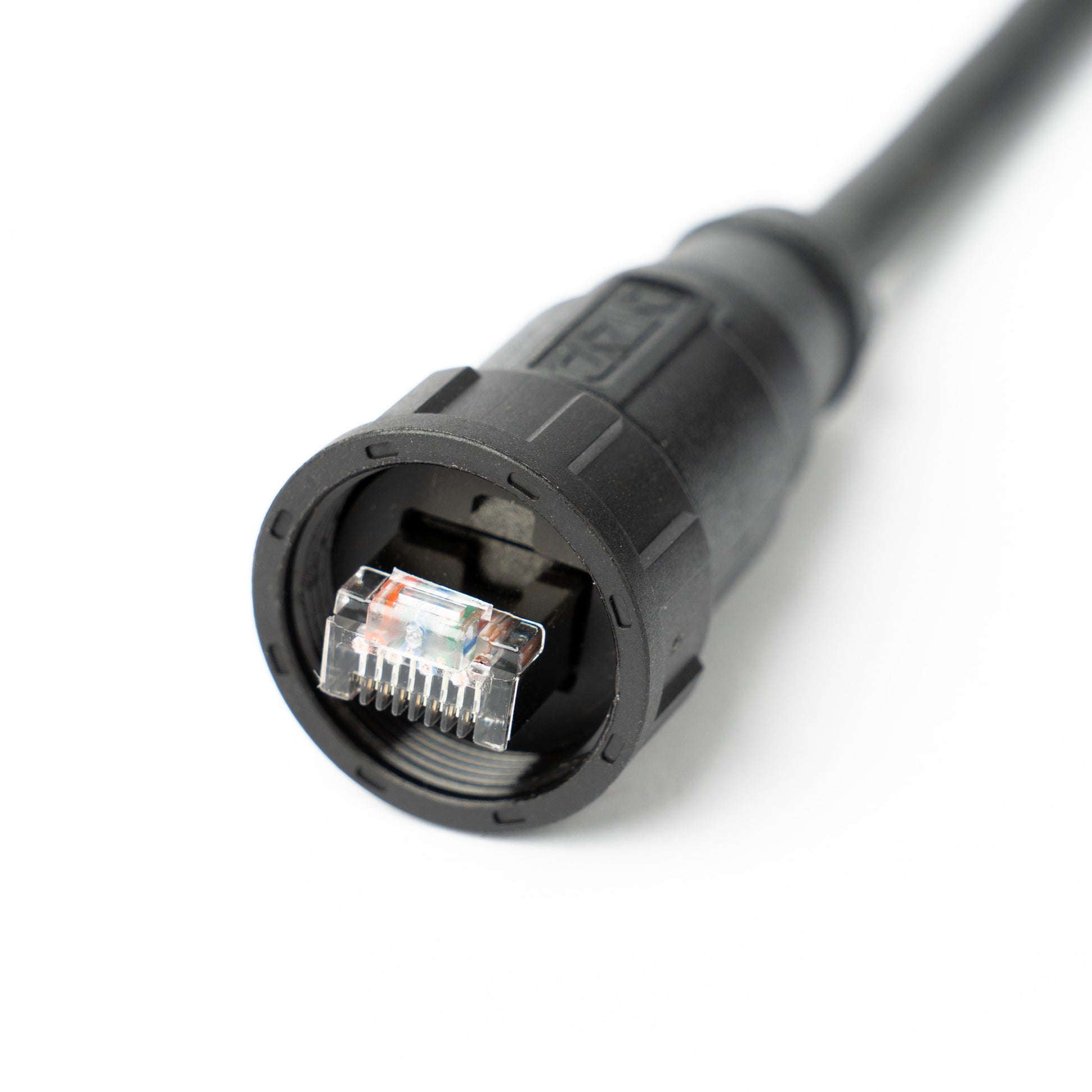

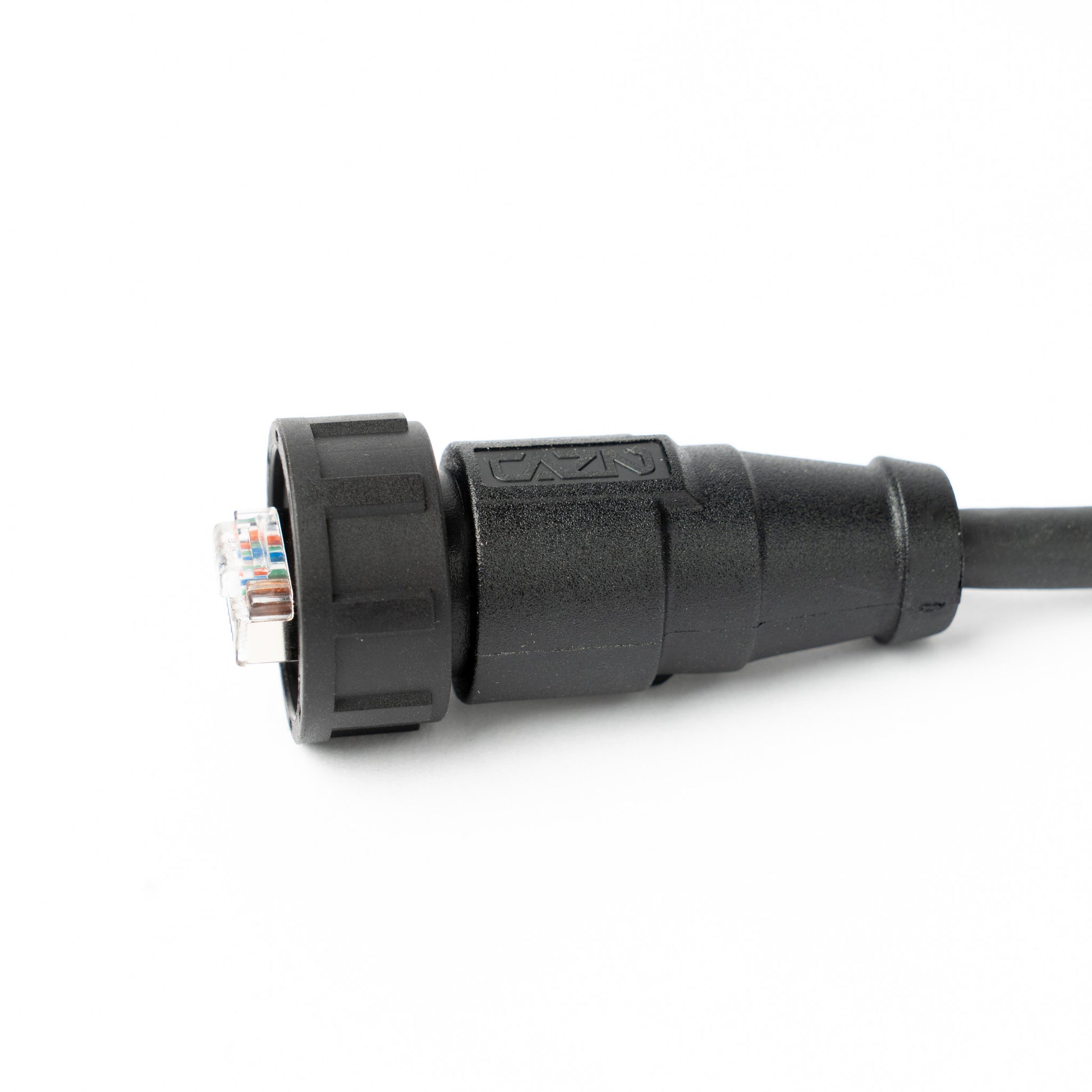

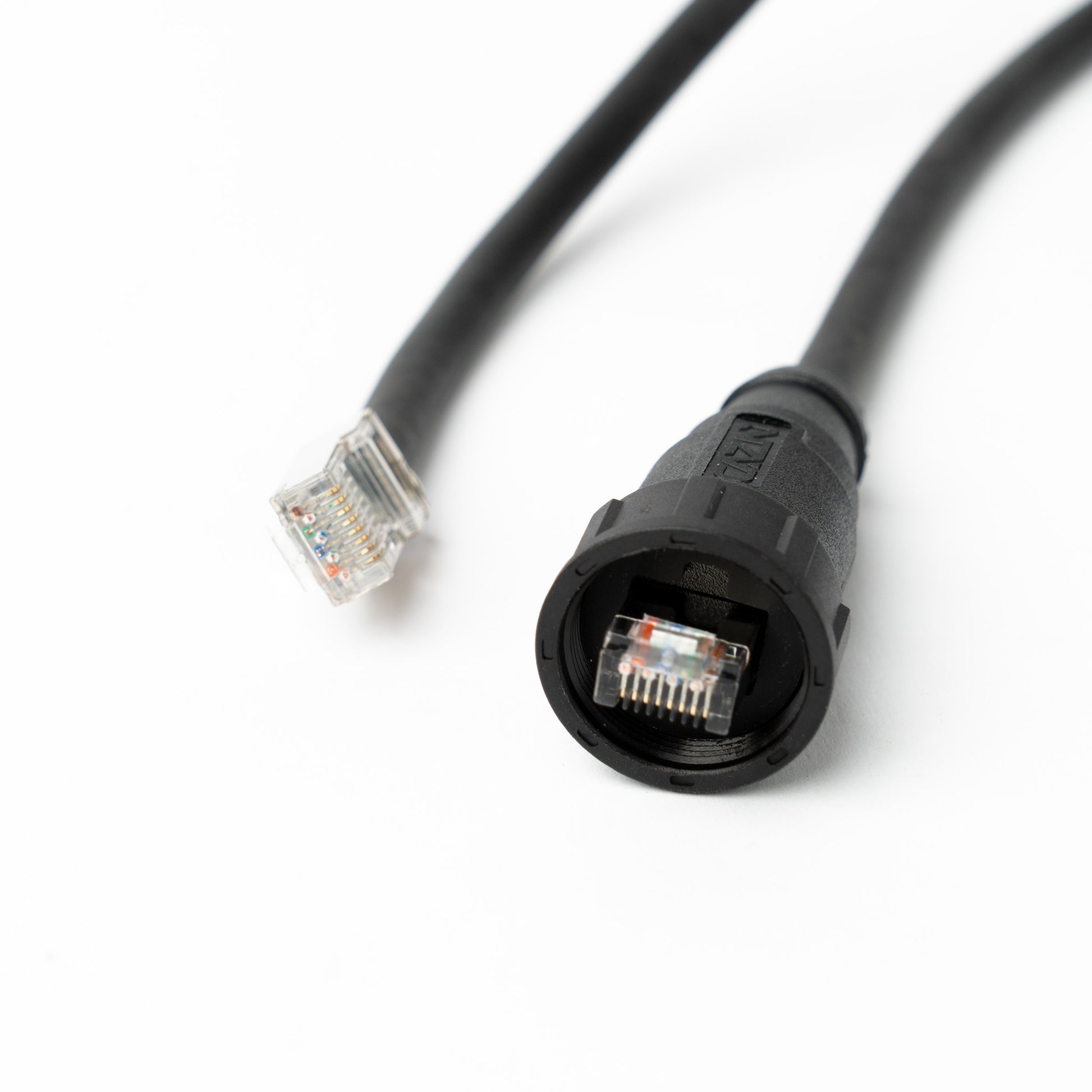

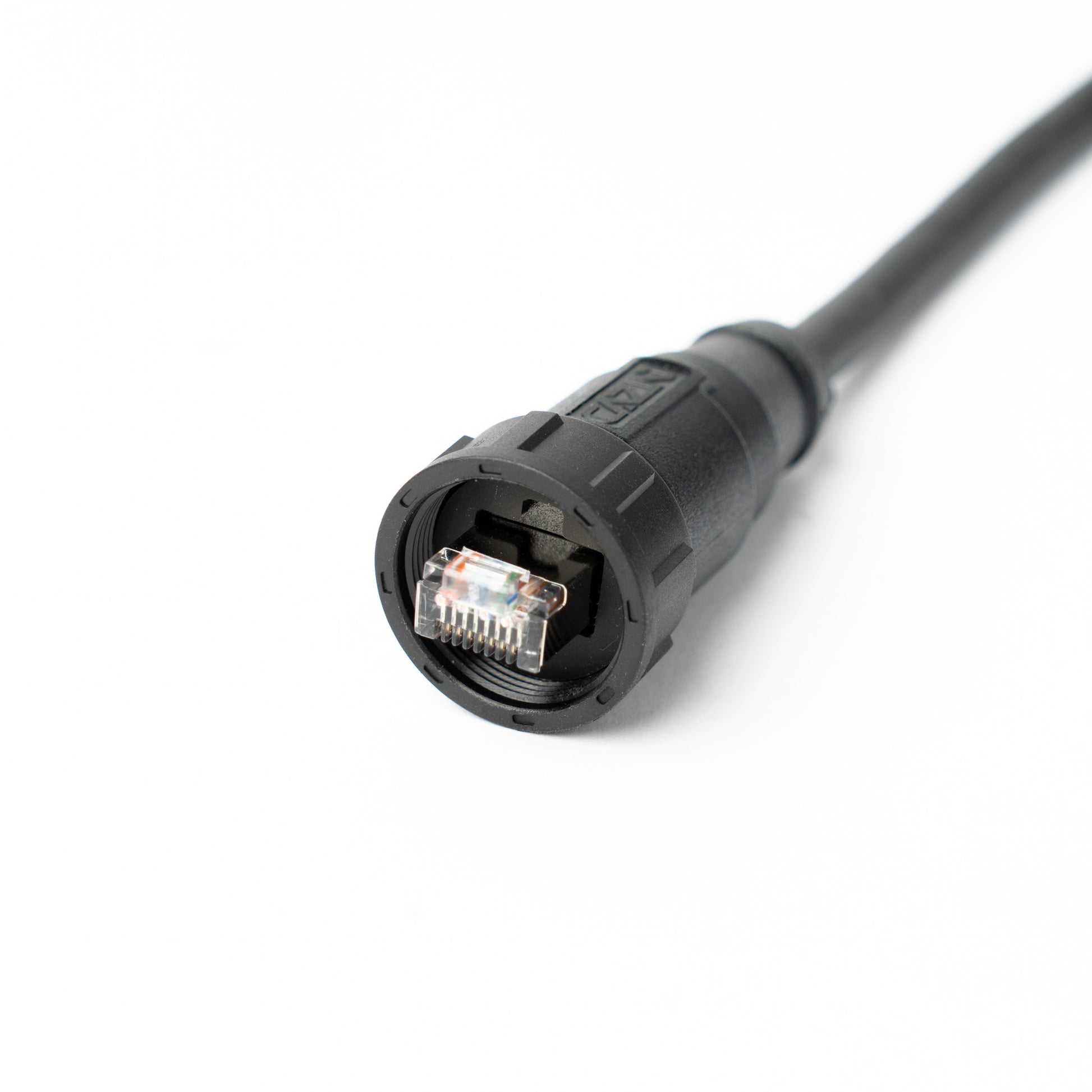

Connector clarification: both ends terminate in a shielded 8P8C RJ45 male plug (Cat6 FTP crystal heads, gold contacts). One end sits inside a threaded coupling ring that screws onto the matching female bulkhead receptacle. The opposite end is a standard shielded RJ45 plug for any normal Ethernet port. Wiring is straight-through (T568).
Specifications
| Cable Type | Cat5e SFTP outdoor Ethernet (Cat6 FTP shielded plugs) |
| Jacket | Black TPU (thermoplastic polyurethane), 6.7mm OD |
| Conductors | 4 twisted pairs, 24AWG, straight-through |
| Shielding | SFTP (foil + braid), shell-to-shell braid bonded |
| Connector A | Threaded weatherproof RJ45, male plug, panel-mount mating |

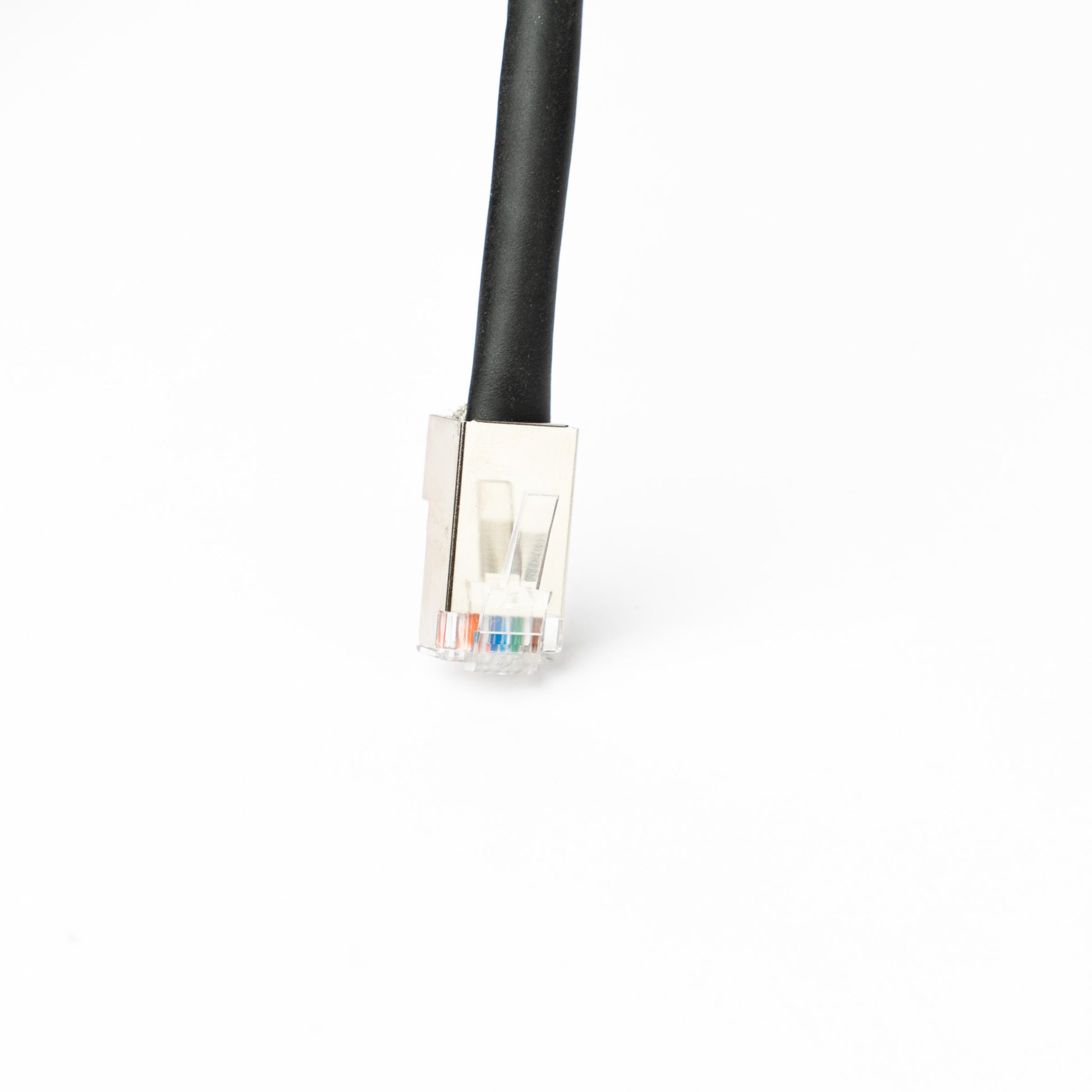

| Connector B | Standard shielded RJ45 plug (8P8C male) |
| Contacts | 50µ″ gold-plated, brass |
| Protection Grade | IP67 when locked |
| Mating Durability | ≥500 cycles |
| PoE | Type 1 PoE, Type 2 PoE+ |
| Operating Temperature | -25°C to +80°C (-13°F to 176°F) |
| Build Standard | IPC/WHMA-A-620, RoHS compliant |
| Length | 8 m (26.2 ft) or 16 m (52.4 ft) |
| Manufacturer | CAZN |
Compatibility
- Pairs with the RJ45 Bulkhead cable: The matching half of the system.
- Works with any device using a standard RJ45 Ethernet port on the internal end.
- Ideal for outdoor enclosures, PoE nodes, access points, and cameras.
Common Questions
Does it carry PoE? Yes. The 24AWG shielded conductors handle PoE for powering nodes and access points over the run.
Do I need the bulkhead? For a sealed enclosure pass-through, yes. The threaded end is designed to mate to our RJ45 bulkhead. The standard RJ45 end plugs into anything.
